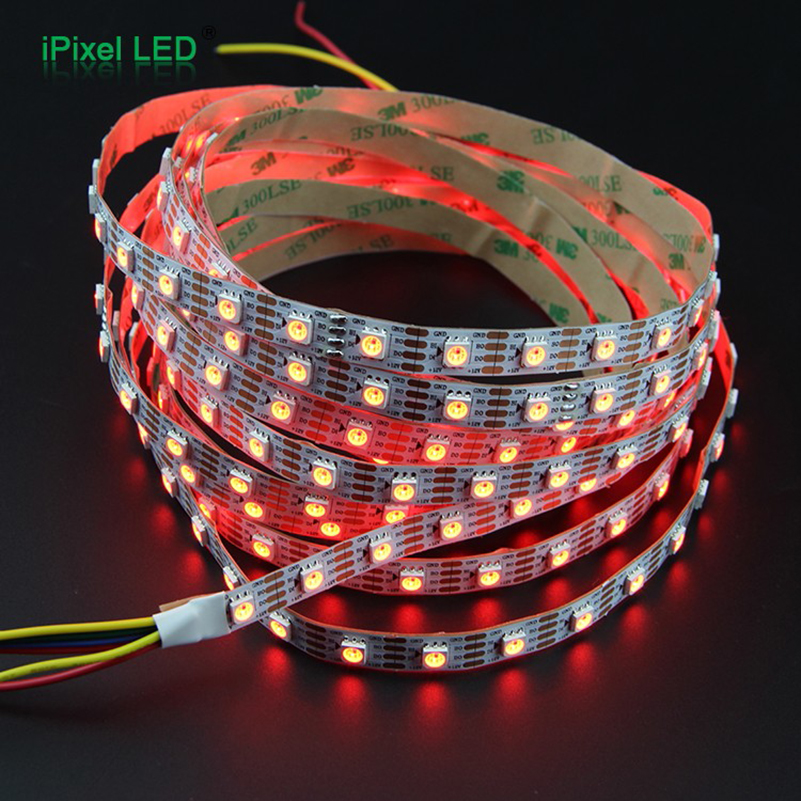

RT1809 RGB Addressable LED strip 12V

Application:
1. Hotels,restaurants,nights clubs,
2. Shopping malls,various shops,
3. Coffee/wine bars, furniture light
4. Cinemas,beauty centers,

5. Coffee/wine bars, furniture light.

Email: inquiry@ipixelleds.com

Share to

Specification

Product Parameter

    PN
    S010030CB3SD2
    S010060CB3SD2
    S012144CB3SD2
    Voltage
    DC12V
    DC12V
    DC12V
    LED Quantity     30 leds/m
    60 leds/m
    14420 leds/m
    Protocol
    RT1809 RGB
    RT1809 RGB
    RT1809 RGB
    Dimension
    5000*10 MM
    5000*10 MM
    5000*12 MM
    Pixel/m
    30 PCS
    60 PCS
    144 PCS
    PCB Color     White/Black     White/Black
    White/Black
    Power
    5W/M (Max)
    8W/M (Max)
    18W/M (Max)
    O.T     -30℃ ~ 45℃     -30℃ ~ 45℃
    -30℃ ~ 45℃

Description

To solve the chip breakdown and Strip's Voltagedrop ,now we welcome RT1809.

The Flex is 30/60/144 Pixel/ LED per meter ,and 5 m in a roll we provide black and  white color board.

same as our other addressable tapes, it's cut-able per unit LED with a large soldering Pad which makes easy to re-solder again.

the PCB printed +12V DI ,BI, GND , both DI and BI means signal but it's only required to link the DI cable to your controller.

 this PCB made by 3Ounce copper for more reliable application.

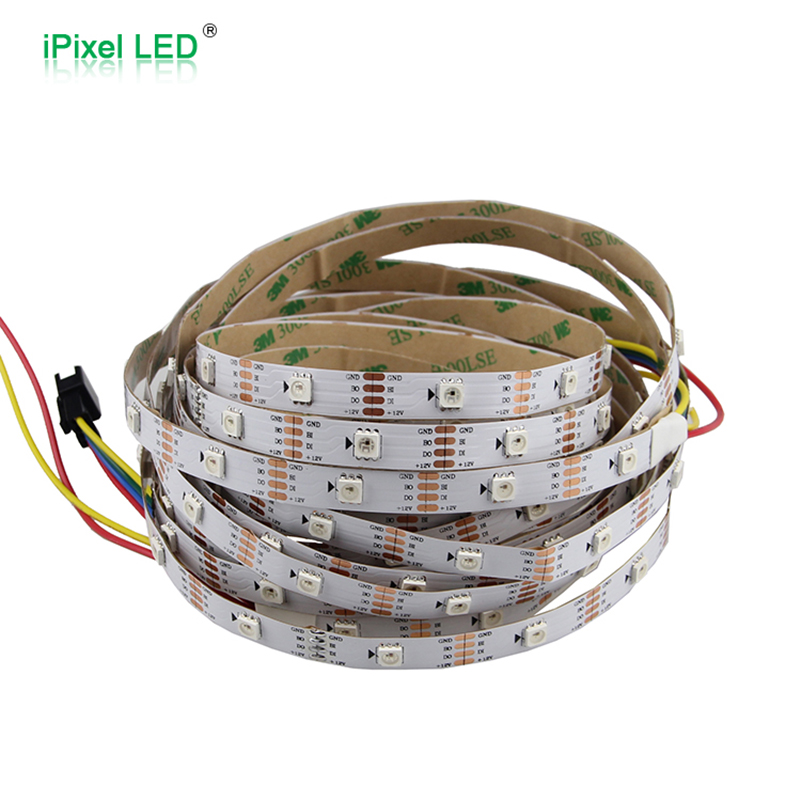

3 M tape attached on backside of strip.

 again we suggested you power it every 5 meters even it's 12V addressable.

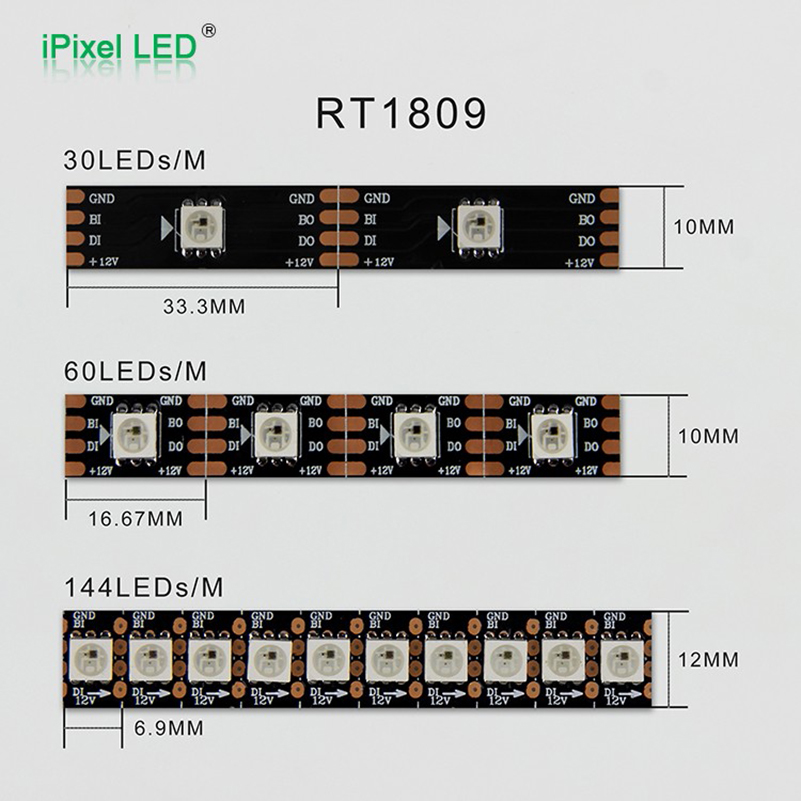

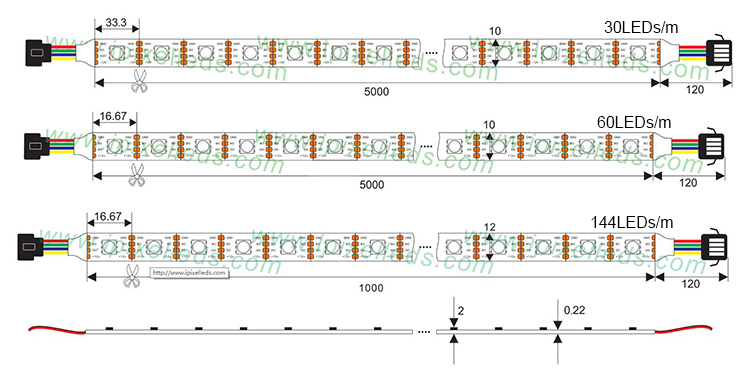

Dimension (unit:mm)

RT1809 RGB Addressable LED strip 12V

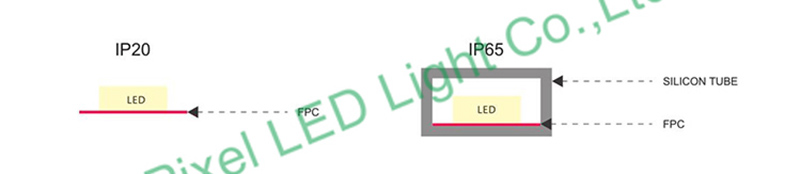

IP Rate

RT1809 RGB Addressable LED strip 12V
