Home > LED Flex > RGBW >   DC24V SMD5050 RGBW (two same white) LED Strip 60LEDs/M

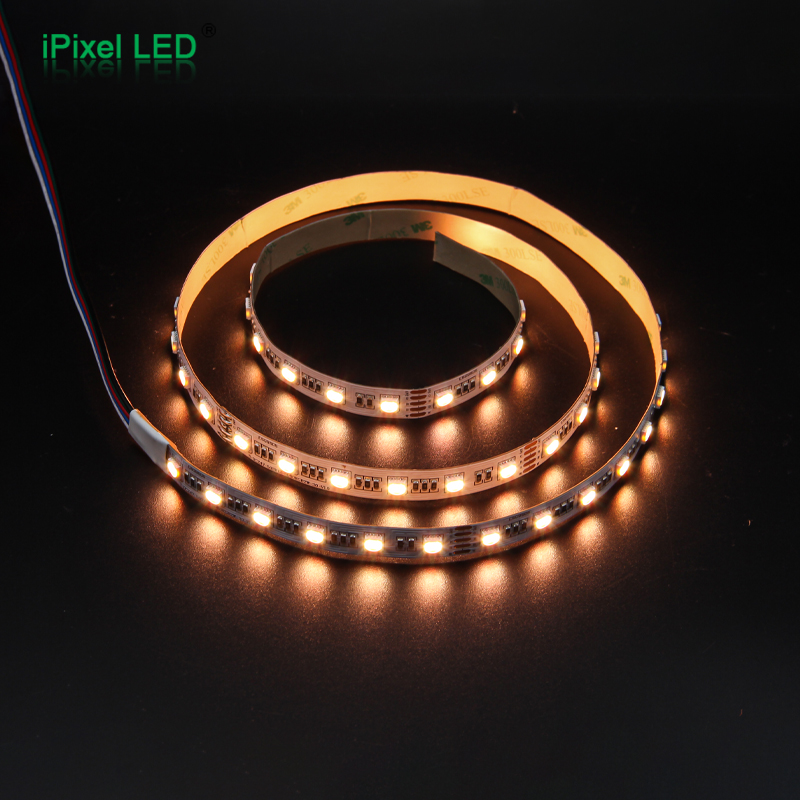

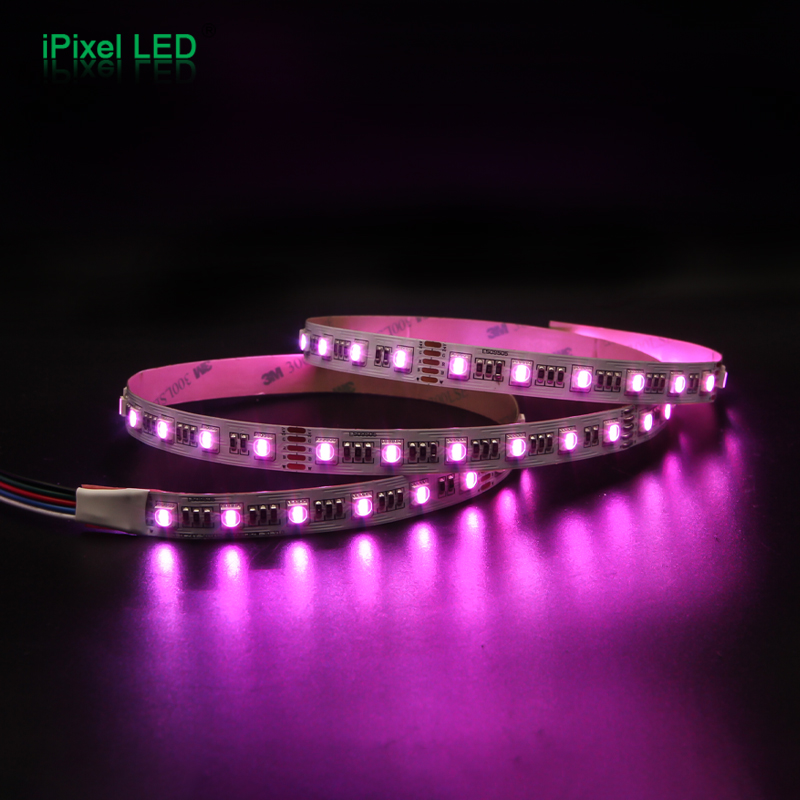

DC24V SMD5050 RGBW (two same white) LED Strip 60LEDs/M

Description

All soldering Pads are very large, allowing you toeasily cut and reconnect

This is a PWM control RGBW color LED strip without pixel

60pcs SMD5050 RGB+2W(two same CCT white) LEDs
per meter to increase the brightness of white light
5meters/reel, PCB wide is 12mm
The cutting unit length is 100mm ( 24V )
The PCB is made by 3 Ounce copper

3M tape attached on backside of FPC



Share to

Facebook Twitter g+

Specification

Product Parameter

    PN
      S012060CC4PZ(2W)
    Voltage
      DC24V
    SMD Type
      SMD 5050
    LED Quantity      60LEDs/m
    Color
      RGB+W:3000K/4000K/6500K
    Control
      PWM
    Dimension
      5000*12mm
    Wavelength
      R:620-625 G:520-525 B:460-465nm
    Lumens/m
      R: 154 G: 359 B: 91 W: 1014lm
    PCB Color      White
    Power
      26W/m
    Minimum Cutting Length
      100mm
    IP Rate      IP20/IP64/IP65/IP67

Dimension (unit:mm)
