S shape 5050 RGBW led strip 48LEDs/M DC12V

Description

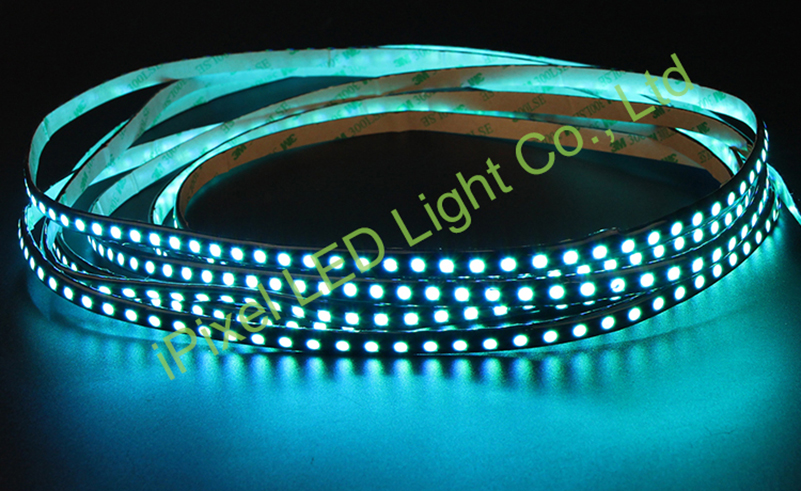

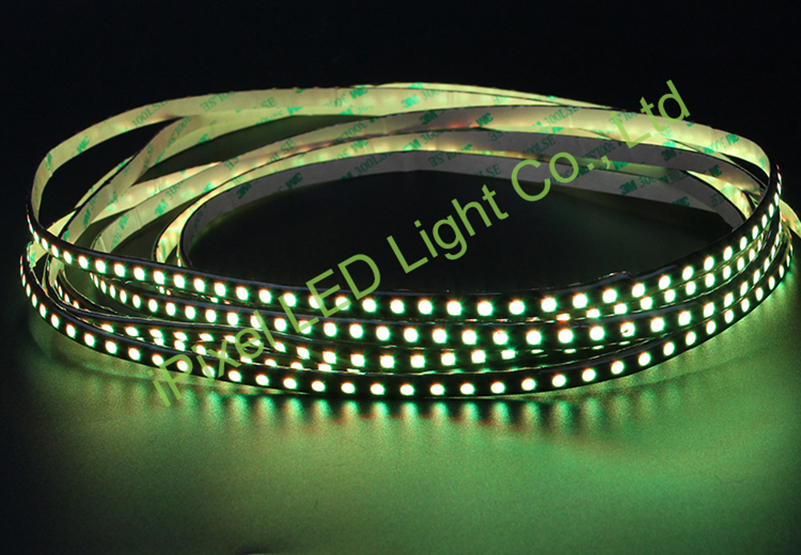

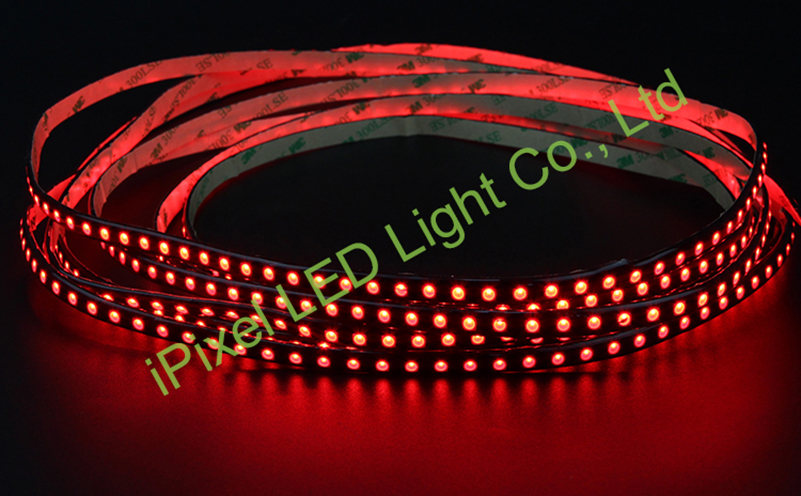

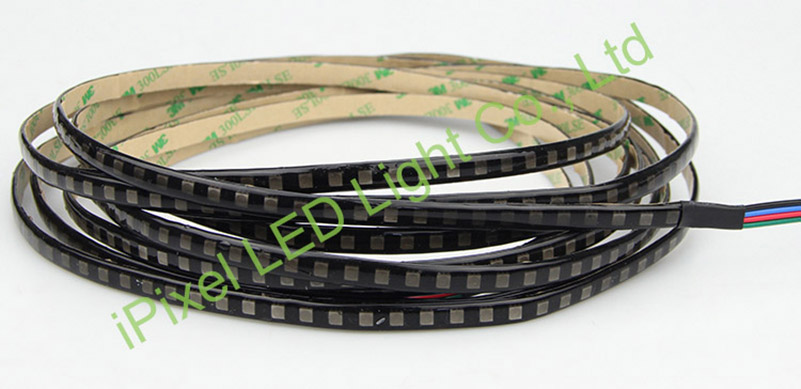

S shape(zigzag) flex led strip with SMD5050 RGBW 48LEDs/m
3LEDs per section and cut-able every 3LEDs
1+2 OZ copper thickness FPC, 12mm PCB width
The biggest advantage is the S shape, which can be bend at any angle
Only available in IP20 non-waterproof version

Standard 5m per roll, the length also can be customized



Share to

Facebook Twitter g+

Specification

Product Parameter

    PN
      S012048CB4PZ
    Voltage
      DC12V
    SMD Type
      5050
    LED Quantity      48LEDs/m
    Color
      RGBW:3000K/4000K/6500K
    Control
      PWM
    Dimension
      5000*12mm
    Wavelength
      R:620-625 G:520-525 B:460-465nm
    Lumens/m
      R:120 G: 282 B:55 W:490lm
    PCB Color      White
    Power
      15W/m
    Minimum Cutting Length
      62.5mm
    IP Rate      IP20

Dimension (unit:mm)
