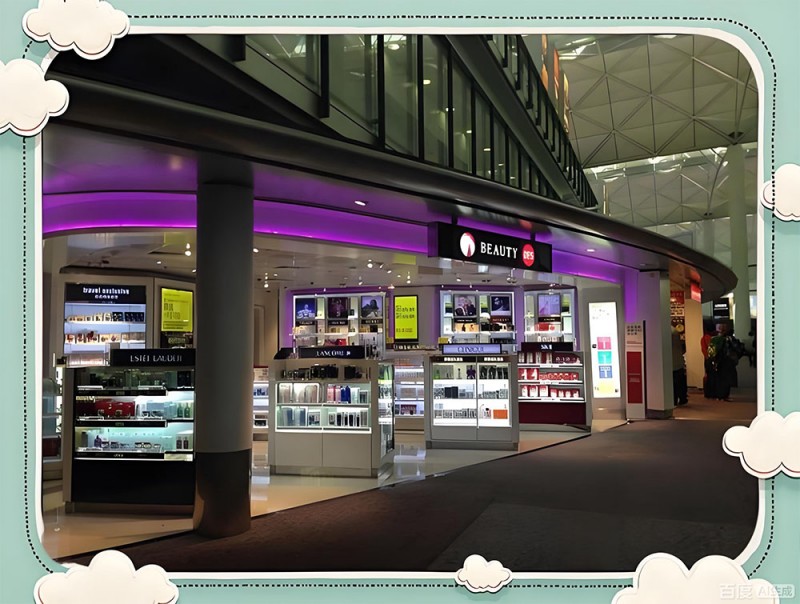

Designed for edge‑lit acrylic, shelf front edges, lightboxes and brand logos — focus on uniformity, CCT consistency and fast installation.
Per‑island length ≈ perimeter + sum of shelf front edges. PSU sizing = (W/m × total length) × 1.25–1.3; inject power every 4–6 m at 24 V, 2–3 m at 12 V.
| Voltage | Type | Key Size | W/m* | Optics/CRI | Cut | Downloads |
|---|---|---|---|---|---|---|
| 12 V | Light bar B010096BB1LZ | 10×1000 mm | ≈2.9 | ~118°; Ra 80/90; 3000–6500 K | Fixed length | Test report (5000 K) |

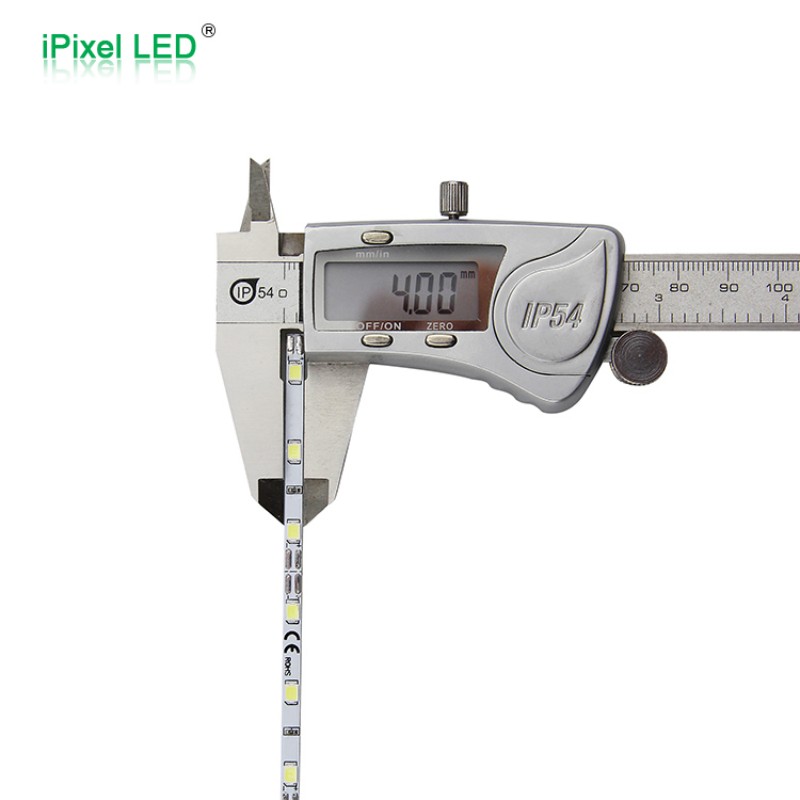

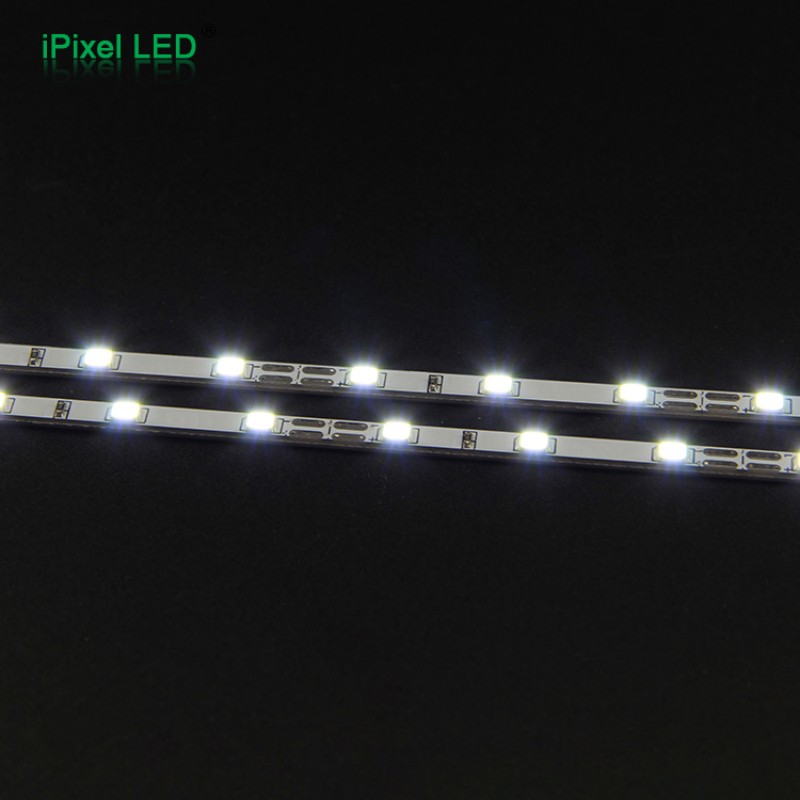

| 12 V | Ultra‑slim rigid B004039BB1LZ | ~4‑mm width, 635 mm | — | High‑brightness edge‑lighting (CCT/lens customizable) | Module pitch | Size/photometry reference |
| 24 V | COB dot‑free (option) | 5/8/10‑mm width | 9–12 | Soft diffusion, Ra 90+ | 50–100 mm | On request |
*Power/output vary with CCT and density; size PSUs for full output. Bin tolerance available (SDCM<3).
