ATM / Kiosk LED Lighting

Uniform UI edge/enclosure lighting with low‑glare diffusers. Standardized harnesses speed assembly and service.

DC24VCRI ≥90Low glareModular barsHarness standardUL/ETL · CE/RoHS

Typical Positions

  • UI perimeter edge lighting (low glare)
  • Internal service light for maintenance
  • Cash/output slot guidance light
  • Branding panel backlight

Quick Quantity Estimator

Total meters ≈ UI edge length × light lines per unit × no. of units.

Driver sizing = (W/m × total meters) × 1.25 headroom. Plan harnessing for quick module swaps.

ATM kiosk lighting

Interactive Quantity Estimator

Total ≈ 0.0 m Driver ≥ 0 W Copy to RFQ Email

Total meters ≈ UI edge length × light lines per unit × no. of units. Driver sizing ≈ (W/m × total meters) × 1.25 headroom.

Recommended Strips (Examples)

VoltageW/mlm/mCRICCTCuttingWidthIPNotesDownloads
24V8–10~700–1000≥904000–5000K50 mm8/10 mmIP20/54 Edge/UI lightingSpectrum Report
24V6–8~500–800≥90Neutral white50 mm8 mmIP20 Internal utility lightDatasheet

Keep glare low on UI; plan EMI/EMC with kiosk electronics.

Reference BOM (Per Unit)

Download: Example spectrum report

Compliance / Certifications

Coverage depends on actual certified models and materials. Contact us for the certificate list per model.

UL ETL CE RoHS REACH ISO 9001 EMC

Gallery

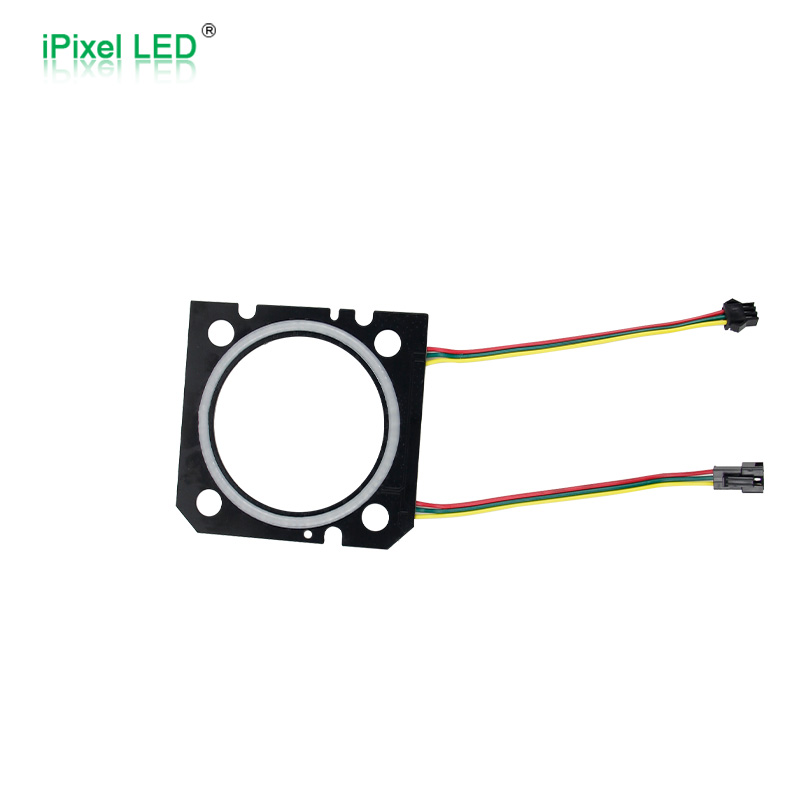

UI edge light

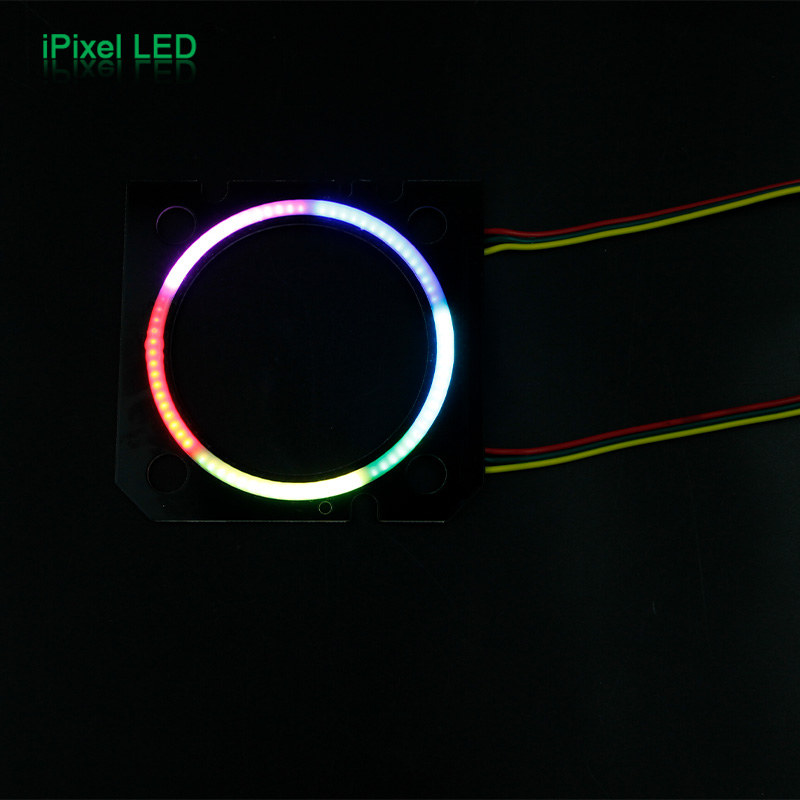

Internal light

FAQ

What IP is needed?

IP20 is typical; higher IP for outdoor kiosks.

EMC concerns?

Use shielded routing and observe clearances.

Maintenance plan?

Modular bars and labeled harness enable fast swaps.
