Shadow‑free mirror lighting with light‑guiding structures. Integrate touch, defog and dimming modules.
Total meters ≈ mirror width × light lines per mirror × no. of mirrors.
Driver sizing = (W/m × total meters) × 1.25 headroom. Ensure IP44 front and safe wiring practices.
Total meters ≈ mirror width × light lines per mirror × no. of mirrors. Driver sizing ≈ (W/m × total meters) × 1.25 headroom.
| Voltage | W/m | lm/m | CRI | CCT | Cutting | Width | IP | Notes | Downloads |
|---|---|---|---|---|---|---|---|---|---|

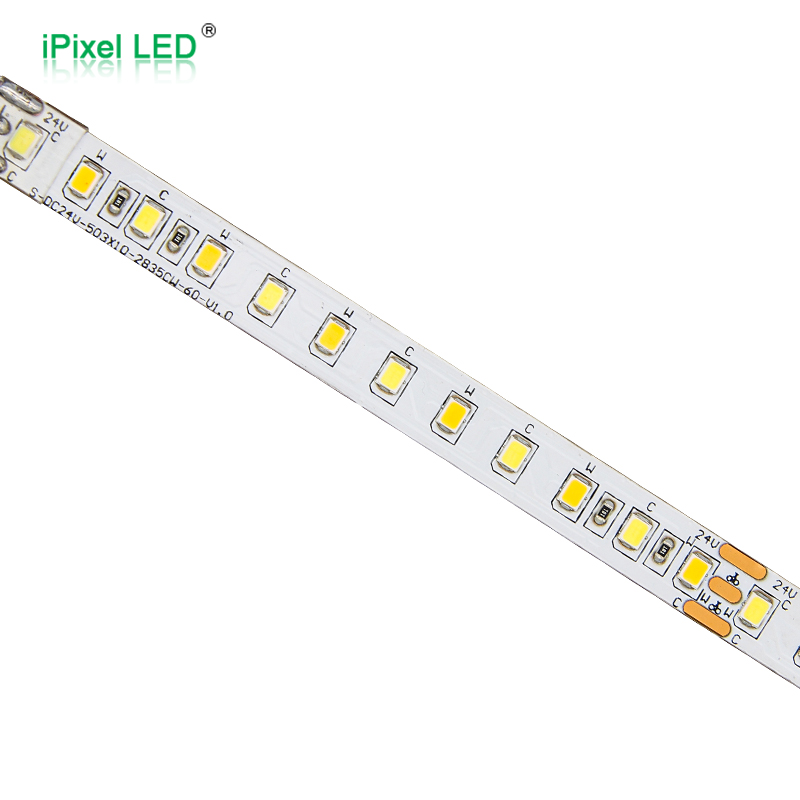

| 24V | 8–10 | ~700–1000 | ≥90 | 4000–5000K | 50 mm | 8/10 mm | IP20/44 | Edge‑lit main | Spectrum Report |
| 12V | 4.8–7.2 | ~400–700 | ≥90 | 3000–4000K | 25/33 mm | 5/8 mm | IP20 | Back‑glow/ambient | Datasheet |
Favor neutral‑cool whites to preserve detail; keep glare low with diffusers.
Download: Example spectrum report
Coverage depends on actual certified models and materials. Contact us for the certificate list per model.
4000–5000K keeps skin tones natural and readable.
Yes—integrate a defog module with correct isolation.
Front splash zones should be IP44; drivers kept dry.
