Awning‑Integrated LED Lighting

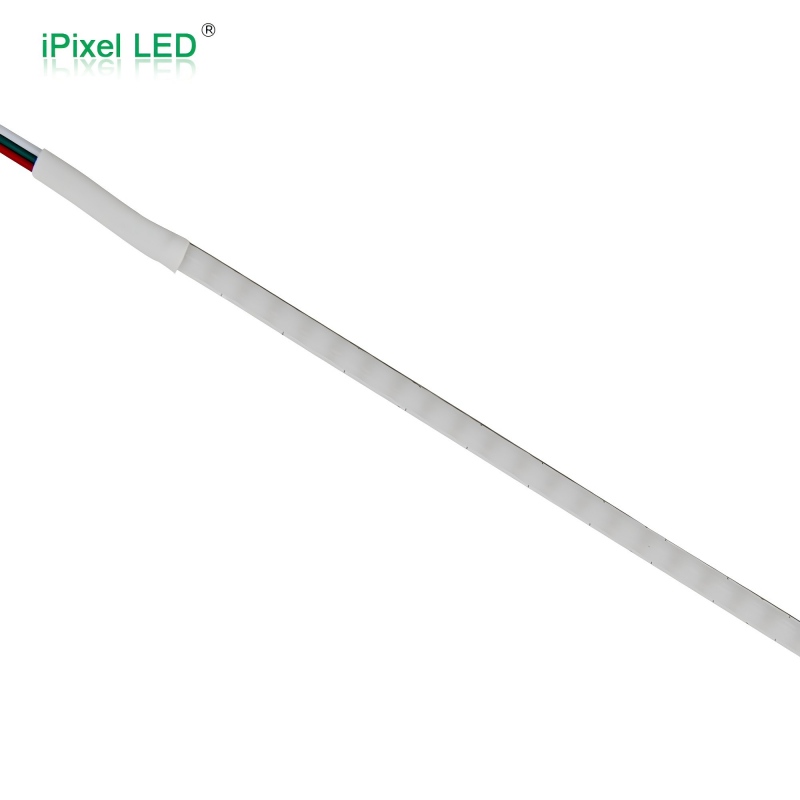

Typical Positions

Total meters ≈ arm length × light lines per unit × no. of units.

Driver sizing = (W/m × total meters) × 1.25 headroom. Plan strain relief and movement clearance along arms.

Arm length (m)
Light lines per unit
No. of units
Power density (W/m)
Voltage
Notes

Total ≈ 0.0 m Driver ≥ 0 W Copy to RFQ Email

Total meters ≈ arm length × light lines per unit × no. of units. Driver sizing ≈ (W/m × total meters) × 1.25 headroom.

Voltage	W/m	lm/m	CRI	CCT	Cutting	Width	IP	Notes	Downloads
24V	8–10	~700–1000	—	3000/4000K	50 mm	8/10 mm	IP67	Arm/perimeter runs	Spectrum Report
48V	8–10	~700–1000	—	Neutral white	62.5 mm	10 mm	IP67	Long runs with lower drop	Datasheet

Seal connectors; allow for movement and water egress.

Coverage depends on actual certified models and materials. Contact us for the certificate list per model.

UL ETL CE RoHS REACH ISO 9001 EMC

Which voltage outdoors?

48V helps on longer runs; 24V is common for short arms.

UV concerns?

Use UV‑stabilized housings and cables.

Water ingress?

Follow IP67 practices and allow drainage paths.
