Wardrobe / Walk‑in Closet Lighting

Dot‑free, low‑glare task & ambient lighting for custom furniture. Door sensorPIRDim/CCT supported. Rapid prototyping, stable mass production.

Recommended Model

Model	Size	Voltage	CCT	CRI	Mounting	Typical Power	Downloads

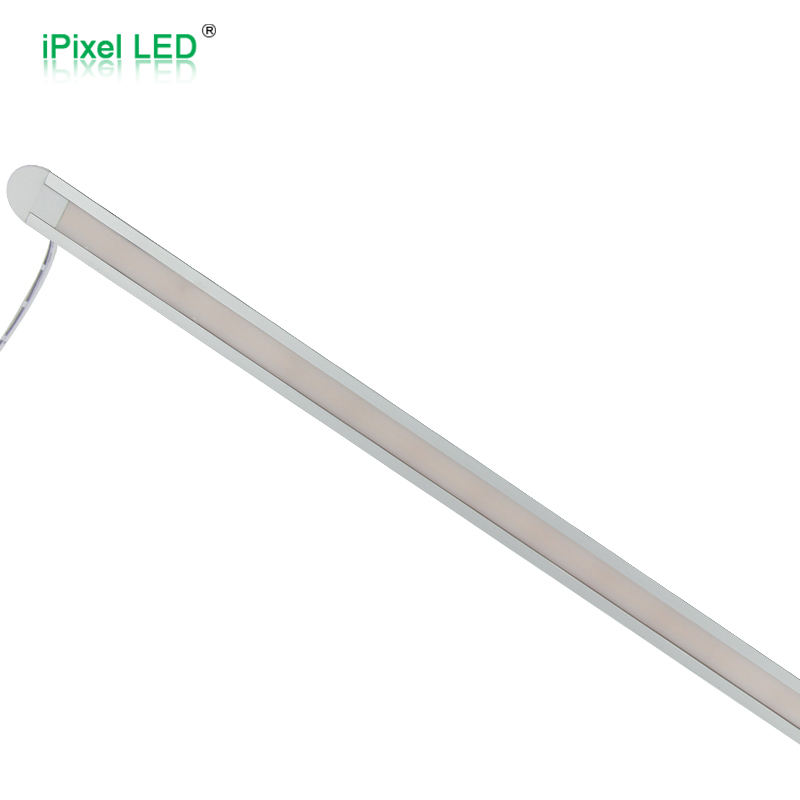

B010130BB1LZ	1163×10×9 mm	12V (24V on request)	3000K (2700–4000K available)	Ra≥80 (Ra≥90 optional)	Clips / tape / screws	~7.1 W/pc (based on lab sample measurement)	Test Report (PDF)

Note: power & luminous data are from lab sample; production specs follow the confirmed BOM and validation.

How to avoid dots when the diffuser is very close?

Use COB or high‑density LEDs with a milky diffuser. Keep diffuser thickness ≥1.0 mm and spacing ≥3–5 mm.

Door sensor and PIR supported?

Yes. We supply NC/NO door switches and PIR/microwave motion modules for low‑voltage plug‑and‑play.

Custom CCT and CRI?

Yes. 2700–5000K, Ra≥80/90. Tight binning SDCM≤3 for color consistency.

Minimal wiring space?

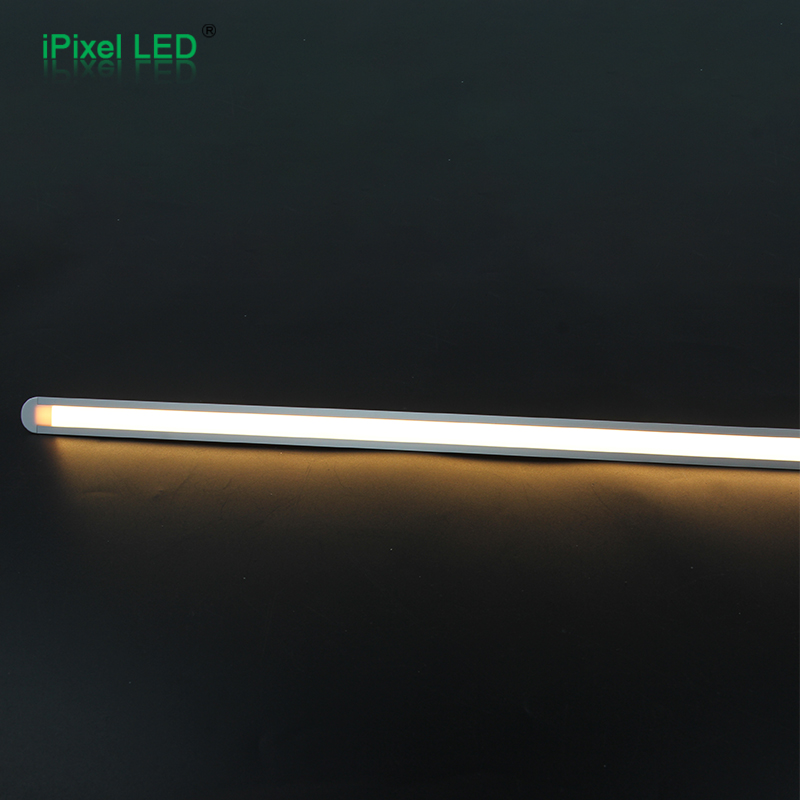

Use side‑exit/end‑exit cables with slim connectors, or reserve a wire channel inside the aluminum profile.
