Application:
1. Hotels,restaurants,nights clubs,
2. Shopping malls,various shops,
3. Coffee/wine bars, furniture light
4. Cinemas,beauty centers,
5. Coffee/wine bars, furniture light.
|
PN |
S010060CA3SA1(WWA) |
|
Voltage |
DC5V |
|
LED Type |
SMD 5050 |
|
LED Quantity |
60leds/m |
|
Color |
Warm White + White + Amber |
|
Dimension |
5000*10MM |
|
Protocol |
SK6812 |
| IP | IP65 |
|
Power |
12W/M |
| O.T | -30℃ ~ 45℃ |
Description
Top SMD internal integrated high quality external control line serial cascade constant current IC,
Control circuit and the chip in SMD 5050 components, to form a complete control of pixel, color
mixing uniformity and consistency, Built-in data shaping circuit,
Gray level adjusting circuit (256 level gray scale adjustable),
Using a typical data transmission frequency of 800 Kbps, when the refresh rate of 30 frames , per second,
The transmission distance between two points over 10M,
5meter per roll,Cut-able of each single LED/Pixe.

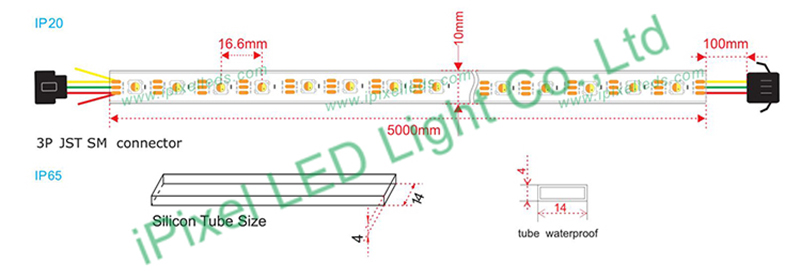

Dimension (unit:mm)
IP Rate
