WS2815 RGB Addressable LED strip 30/60/144LEDs/M DC12V

Application:
1. Hotels,restaurants,nights clubs,
2. Shopping malls,various shops,
3. Coffee/wine bars, furniture light
4. Cinemas,beauty centers,

5. Coffee/wine bars, furniture light.

Email: inquiry@ipixelleds.com

Share to

Specification

Product Parameter

    PN
    S010030CB3SB7
    S010060CB3SB7
    S012144CB3SB7
    Voltage
    DC12V
    DC12V
    DC12V
    LED Type
    SMD 5050 RGB
    SMD 5050 RGB
    SMD 5050 RGB
    LED Quantity     30leds/m
    60leds/m
    144leds/m
    Protocol
    SPI - WS2815/SPI - GS8208
    Dimension
    5000*10 MM
    5000*10 MM
    1000*12 MM
    Pixel/m
    30PCS
    60PCS
    144PCS
    PCB Color     White/Black     White/Black
    White/Black
    Power
    4.5W/M
    9W/M
    20W/M
    O.T     -30℃ ~ 45℃     -30℃ ~ 45℃
    -30℃ ~ 45℃

Description

This is a new chip again from worldsemi family ,based on WS2812B and WS2813.

To solve the chip breakdown and Strip's Voltagedrop ,now we welcome WS2815.

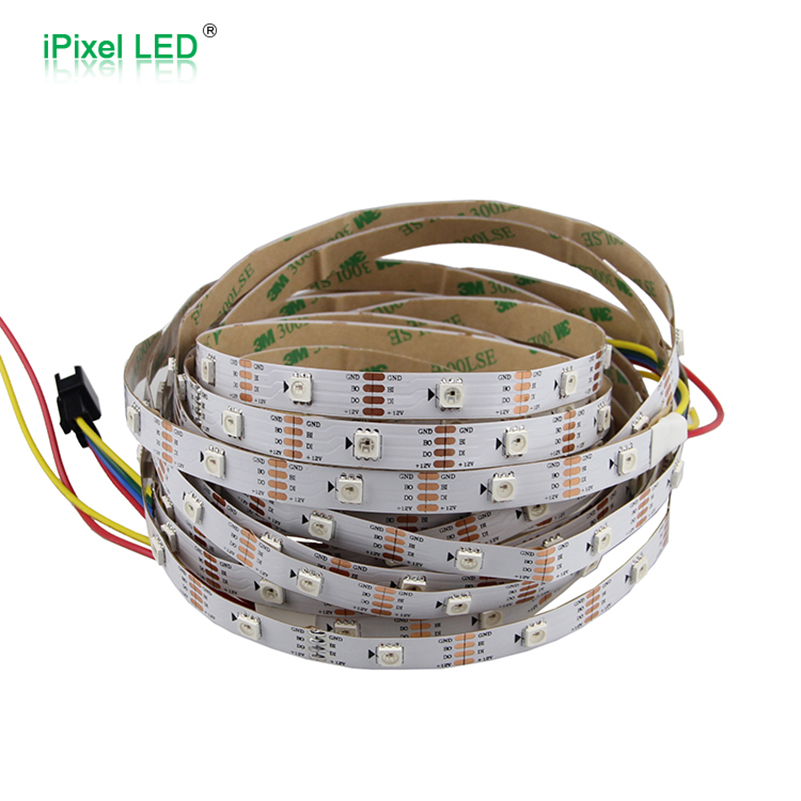

The Flex is 30/60/144 Pixel/ LED per meter ,and 5 m in a roll we provide black and  white color board.

same as our other addressable tapes, it's cut-able per unit LED with a large soldering Pad which makes

easy to re-solder again.

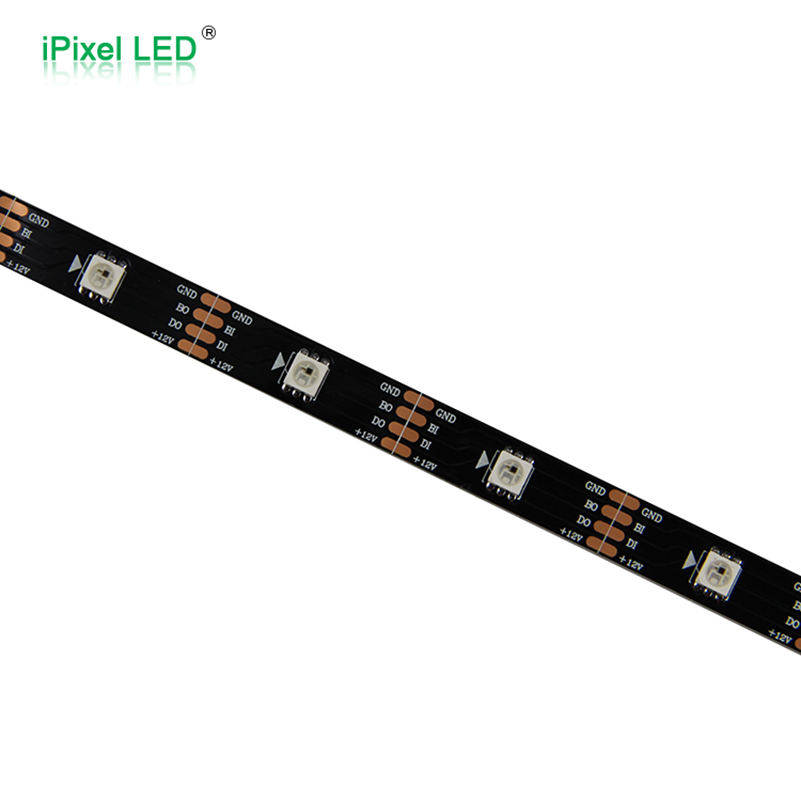

the PCB printed +12V DI ,BI, GND , both DI and BI means signal but it's only required to link the DI cable to

your controller.

this PCB made by 3Ounce copper for more reliable application.

3 M tape attached on backside of strip.

again we suggested you power it every 5 meters even it's 12V addressable.

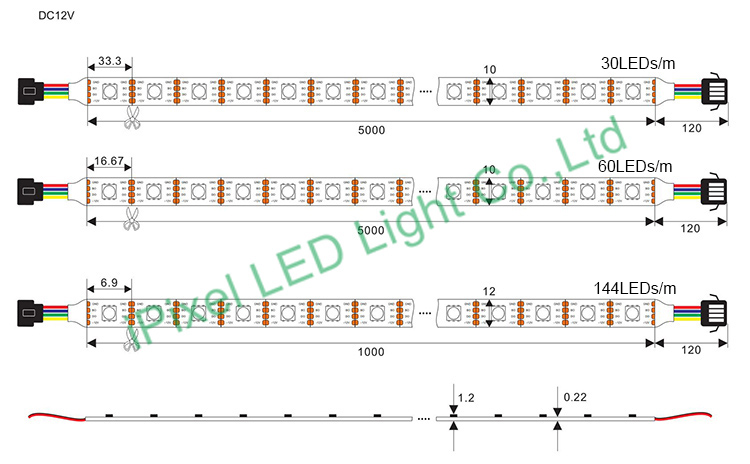

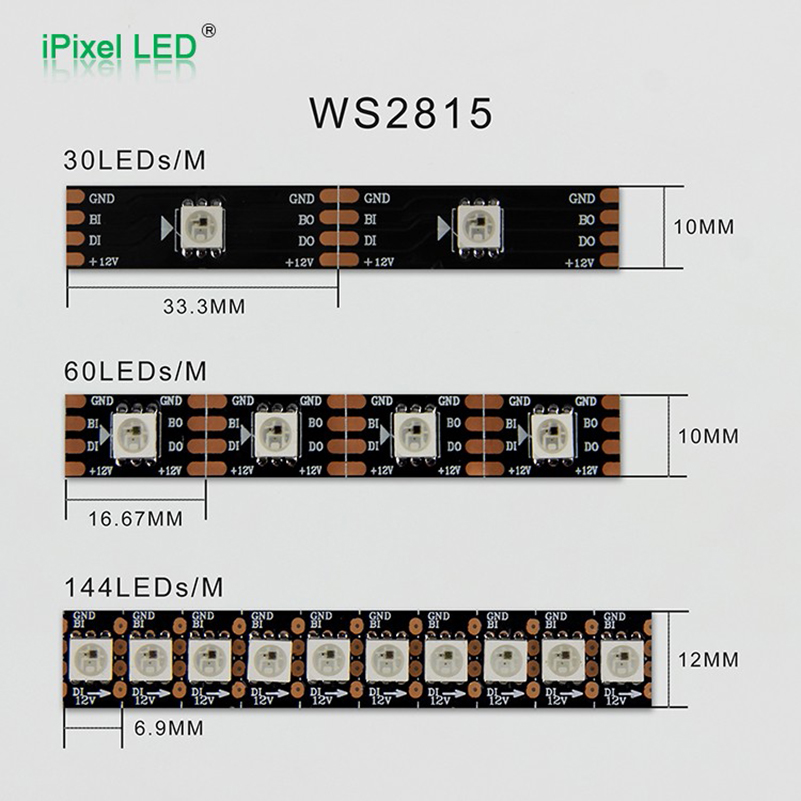

Dimension (unit:mm)

WS2815 RGB Addressable LED strip 12V

IP Rate

WS2815 RGB Addressable LED strip 12V
