60 Pixel Addressable RGB LED strip DC24V

Application:

1. Hotels,restaurants,nights clubs,

2. Shopping malls,various shops,

3. Coffee/wine bars, furniture light

4. Cinemas,beauty centers,
5. Coffee/wine bars, furniture light.

Email: inquiry@ipixelleds.com

Share to

Specification

Product Parameter

    PN
    S015060CC3SC2
    Voltage
    DC24V
    LED Type
    SMD 5050 RGB
    Dimension
    5000*15MM
    Protocol
    SPI
    IP     IP20 / IP65
    Power
    14.4W/M
    Pixel/m
    60PCS
    O.T     -30℃ ~ 45℃

Description

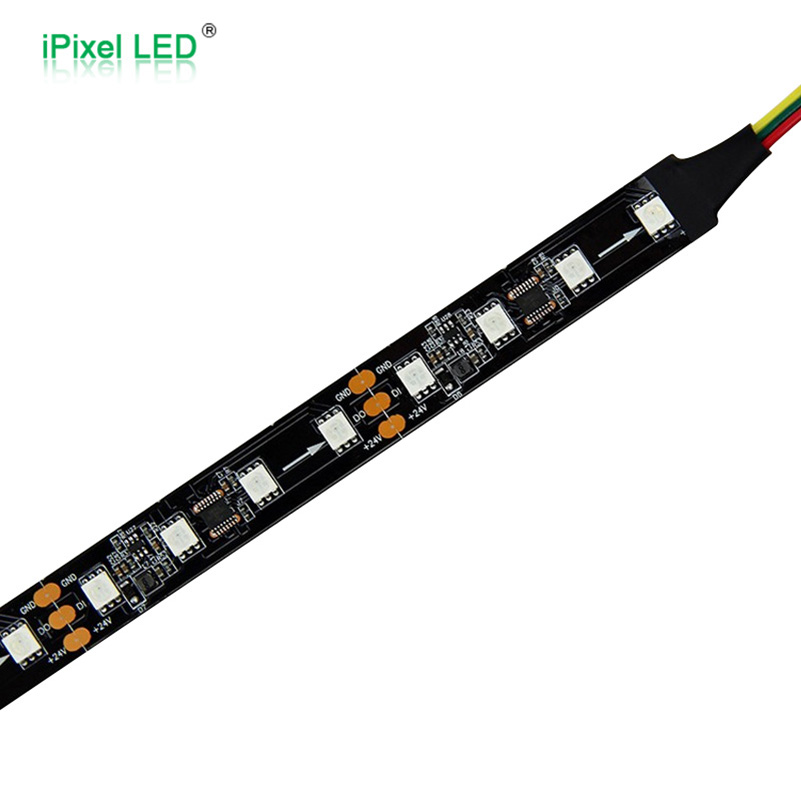

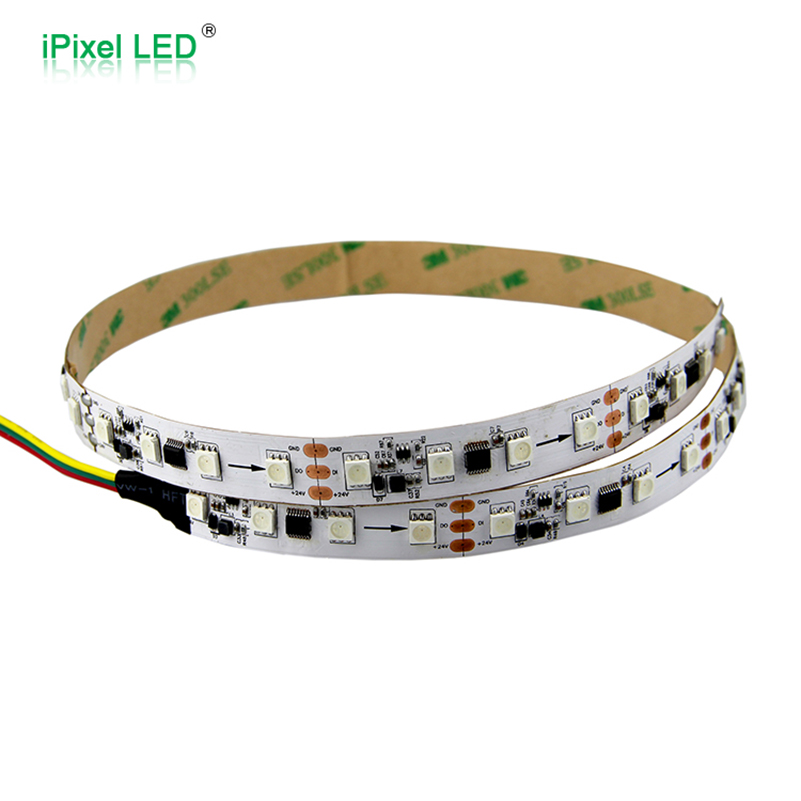

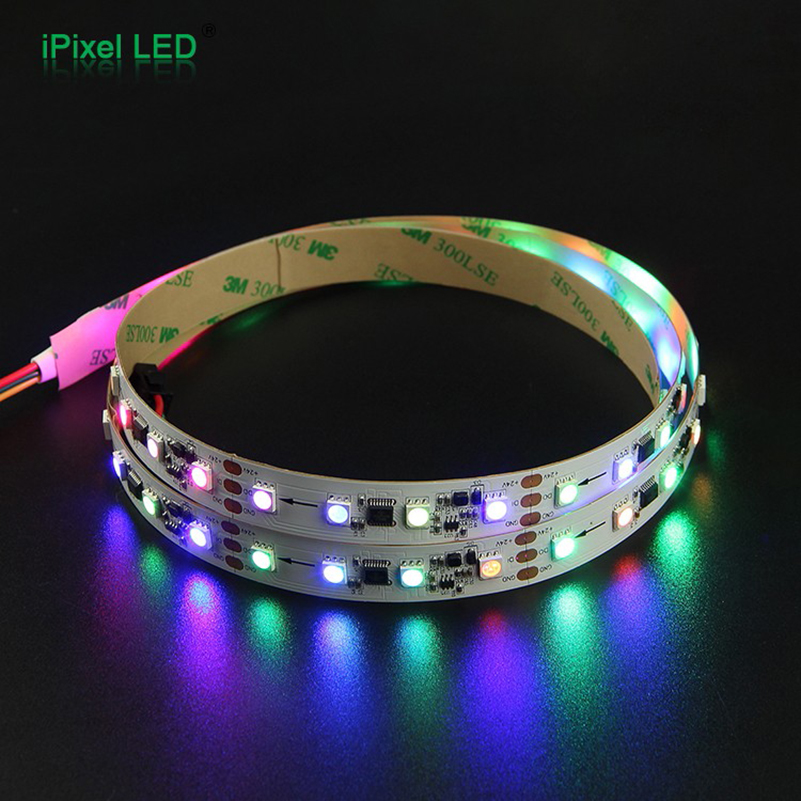

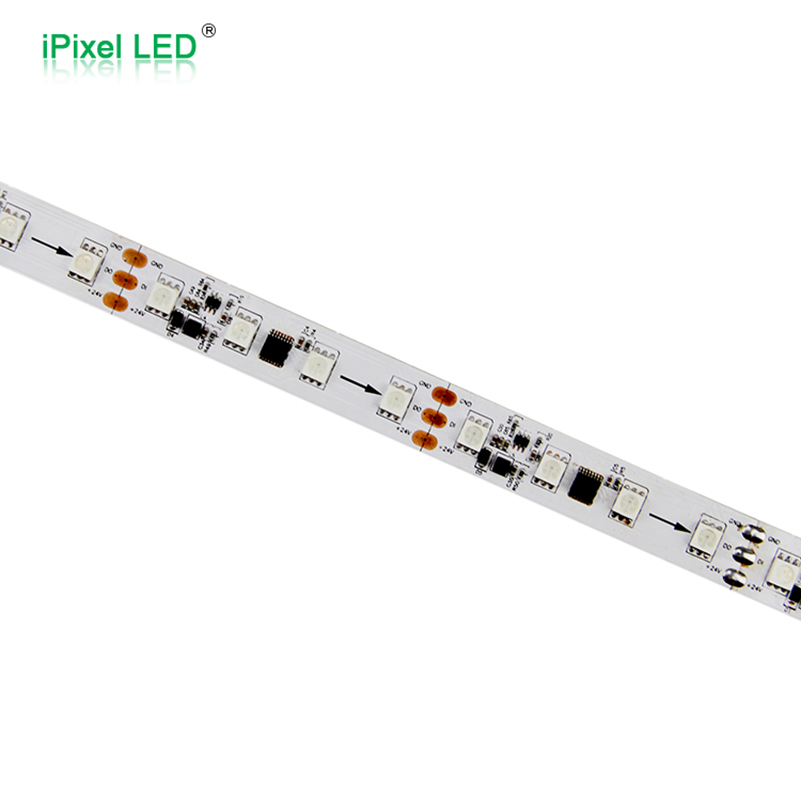

Addressable 24V 1LED & 1Pixel RGB LED strip with 60Pixels/m
SPI control, 4LEDs per section cut-able
The cutting unit is 66.6mm, White/Black PCB are available
3 Ounce thick cooper FPC, 5m per reel and 3M tape is included
JST SM Connector on each side, Constant voltage operation
Silicon tube housing waterproof IP65

60 Pixel Addressable LED strip DC24V

LEDedit controller can not work with this IC chip
(K-1000,K-4000, K-8000,T-500K)
Recommended controller
http://www.ipixelleds.com/index.php?id=229
http://www.ipixelleds.com/index.php?id=231
if user use own controller ,make sure it support UCS9812 IC chip

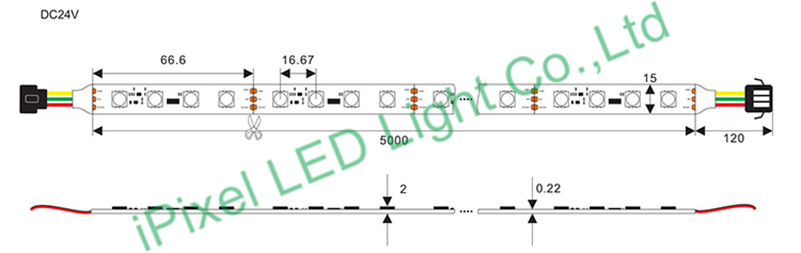

Dimension (unit:mm)

60 Pixel Addressable LED strip DC24V

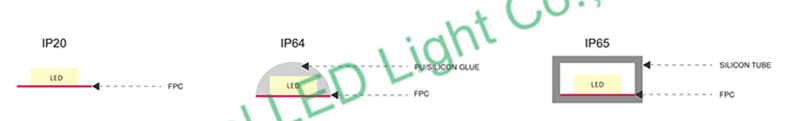

IP Rate

60 Pixel Addressable LED strip DC24V
