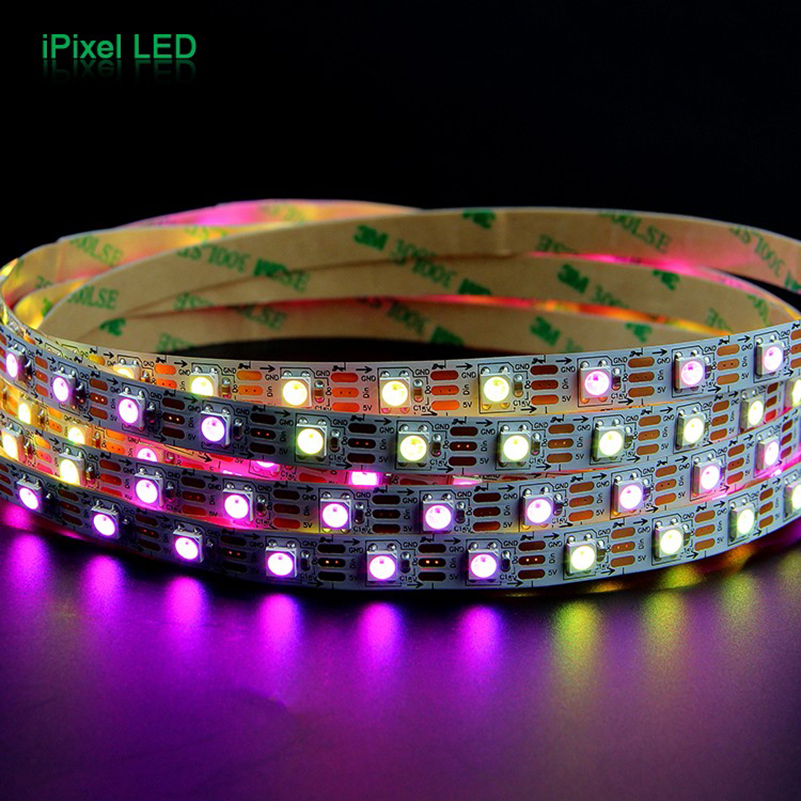

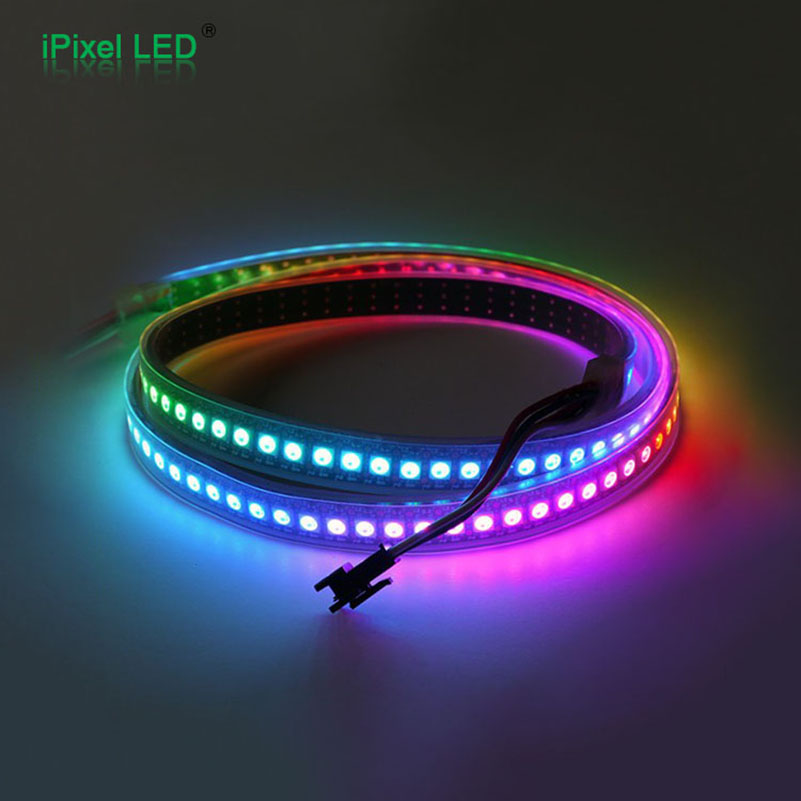

SK6812 RGB Addressable LED strip 30/60/144LEDs/M DC5V

Application:

1. Hotels,restaurants,nights clubs,

2. Shopping malls,various shops,

3. Coffee/wine bars, furniture light

4. Cinemas,beauty centers,
5. Coffee/wine bars, furniture light.

Email: inquiry@ipixelleds.com

Share to

Specification

Product Parameter

PN
    S010030CA3SA1
    S010060CA3SA1
    S012144CA3SA1
Voltage
    DC5V
    DC5V
    DC5V
LED Type
    SMD 5050 RGB
    SMD 5050 RGB
    SMD 5050 RGB
LED Quantity     30LEDs/m
    60LEDs/m
    144LEDs/m
Protocol
    SPI - SK6812
    SPI - SK6812
    SPI - SK6812
Dimension
    5000*10MM
    5000*10MM
    1000*12MM
Pixel/m
    30PCS
    60PCS
    144PCS
PCB Color     White/Black     White/Black
    White/Black
Power
    6W/M
    12 W/M
    24 W/M
O.T     -30℃ ~ 45℃     -30℃ ~ 45℃
    -30℃ ~ 45℃

Description

30/60/74/144 individually-controllable LED pixels on a flexible PCB,

It's completely out of control and ready for you to blink,

And an extra heavy flex PCB in white & Black version,
The digitally-addressable type of LED strip. You can set the color of each LED's red, green and blue component

with 8-bit PWM precision (so 24-bit color per pixel),

The LEDs are controlled by shift-registers that are chained up and down the strip so you can shorten or lengthen

the strip, Only 1 digital out pin is required to send data. The PWM is built into each LED-chip so once you set the

color you can stop talking to the strip and it will continue to PWM all the LEDs for you,

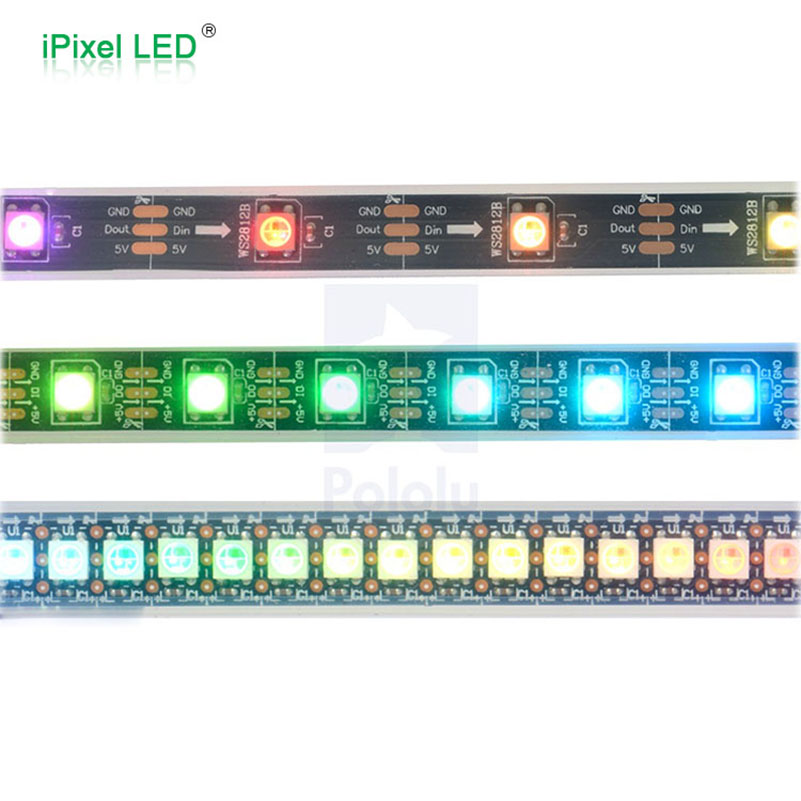

Regarding it's flexible PCB material, you can cut this stuff pretty easily with wire cutters, there are cut-lines every

LED. Solder to the 0.1" copper pads,

You can also connect strips together to make them longer, just watch how much current you need.

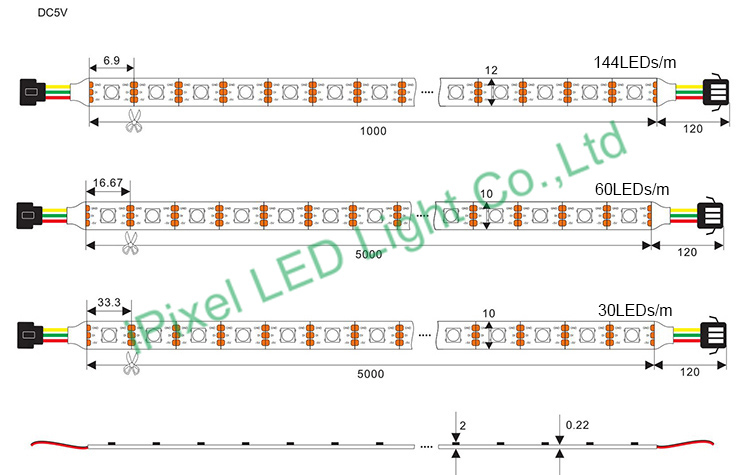

Dimension (unit:mm)

SK6812 RGB Addressable LED strip 5V

IP Rate

SK6812 RGB Addressable LED strip 5V
