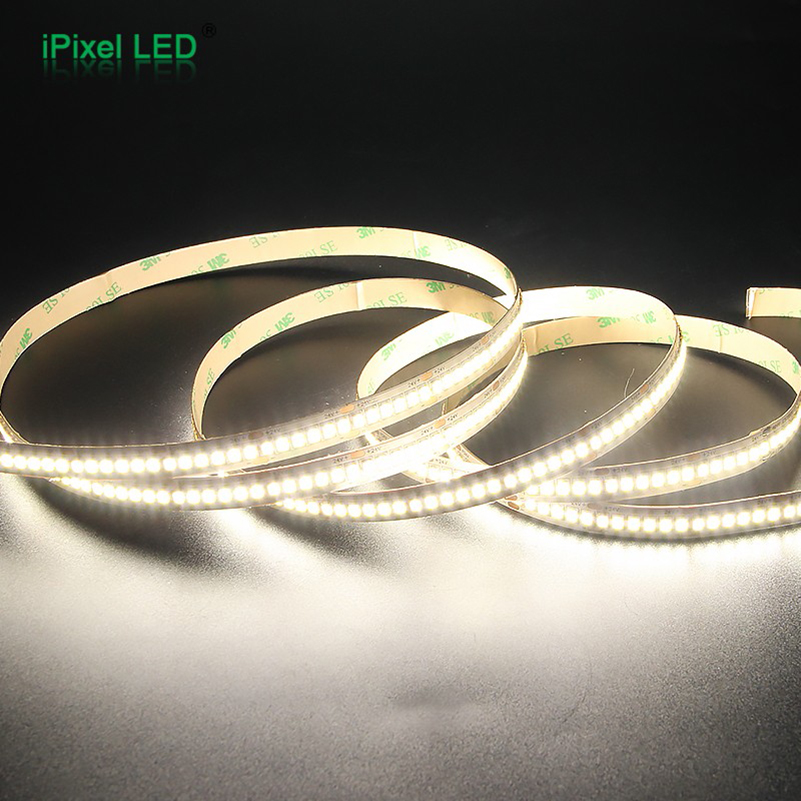

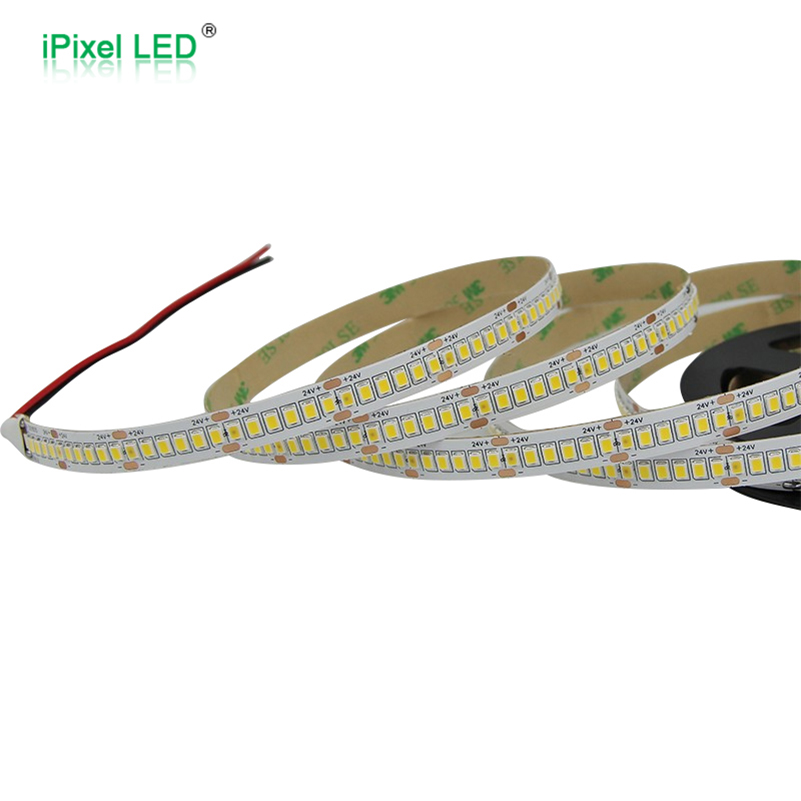

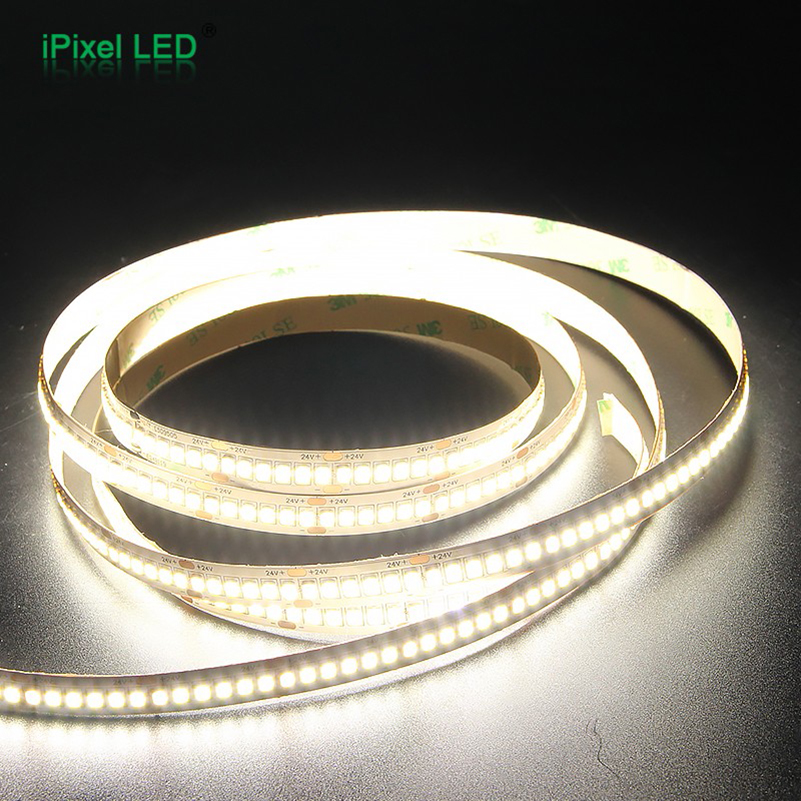

Constant current single color 2835 led strip 240LEDs/m DC24V

Application:

1. Hotels,restaurants,nights clubs,

2. Shopping malls,various shops,

3. Coffee/wine bars, furniture light

4. Cinemas,beauty centers,
5. Coffee/wine bars, furniture light.

Email: inquiry@ipixelleds.com

Share to

Specification

Product Parameter

PN	S010240BC1HZ
Voltage	DC24V
SMD Type	SMD 2835
LED Quantity/m	240
Color	3000K 4000K 6000K
Dimension	5000*10 MM
Lumens/m	1465 LM
Meterial	FPC
Power	19.2W/M
CRI	>80
IP Rate	IP20/IP65
O.T	-25℃ ~ 60℃

Description

· This strip is constant current version, 240pcs x 2835 LED chips per meter
· Input voltage is DC24V
· Flexible PCB, the FPCB color is white
· The FPCB width is 10mm, 1 + 2 Oz copper
· Standard 5M/roll, length can be customized

Dimension (unit:mm)

Constant current single color 2835 led strip 240LEDs/m
