WS2811 Digital RGB COB LED Strip 720 LEDs/m DC12V/24V
Description
-High density, the light is even and soft
-High efficiency, remarkable energy saving effect
-Double layer PCB, balancing voltage drop, heat
dissipation and flexibility.
-Chip longitudinal distribution, high reliability;
-Standard 5M/roll, length can be customized
Share to
Specification
Product Parameter
| PN | S010720ZB3SF | S010720ZC3SF |
| Voltage | DC12V | DC24V |
| Power | 12W/m | 10W/m |
| SMD Type | COB | COB |
| LED Quantity | 720LEDs/m | 720LEDs/m |
| Color | RGB | RGB |
| Control | SPI/WS2811 | SPI/WS2811 |
| Cutting length | 50mm | 100mm |
| Dimension | 5000*10mm | 5000*10mm |
| Luminance/m | R:107 G:408 B:54 lm | R:79 G:311 B:51 lm |
| Wavelength | R:615-630 G:520-535 B:450-460 | R:615-630 G:520-535 B:450-460 |
| Beam Angle | 180° | 180° |
| IP Rate | IP20/IP65 | IP20/IP65 |
| O.T | -25℃ ~ 60℃ | -25℃ ~ 60℃ |

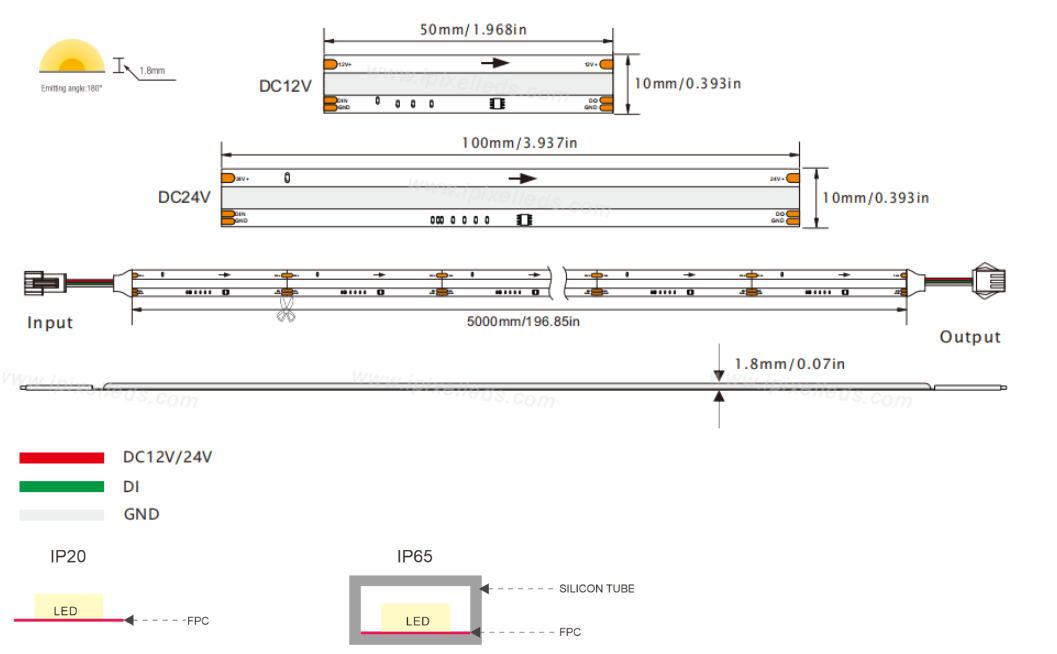

Dimension (unit:mm)
