DMX512 2835 single color flex led strip 120LEDs/m DC24V
Description
Description
2835 LED chip, 120LEDs/m
DMX IC chip and controlled by DMX controller
Input voltage is DC24V
Flexible PCB, FPC color is white
PCB with 1+2 Oz copper, 10mm width
Standard 5m/roll, length can be customized
Share to
Specification
Product Parameter
| PN | S010120BC1DC0 |
| Voltage | DC24V |
| LED Type | SMD2835 |
| LED Quantity | 120LEDs/m |
| Color | W:3000K/4000K/6500K |
| Dimension | 5000*10mm |
| Cutting unit | 100mm |
| Luminance/M | W:1291lm |
| Power | 15W/m |
| Protocol/Pixel/M | DMX/TM512AC /10Pixel |
| O.T | -25℃ ~ 60℃ |

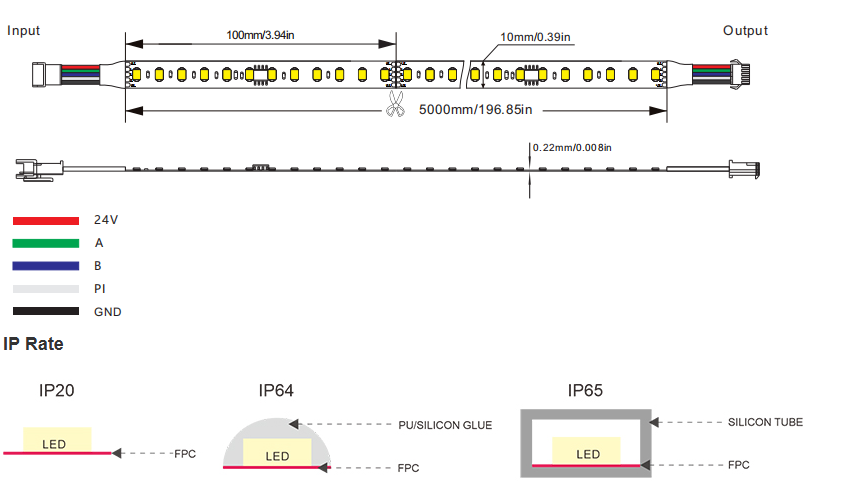

Dimension (unit:mm)
IP Rate
Set DMX address Video:
