16x16mm DMX512 RGB top view LED Neon strip DC24V

Description

Description

·16X16 top view neon flex led strip, you can bending up and down;

· Light source: highlights led chip;

· Control method: Adopting the SPI signal, it can achieve animation effects such as flowing water,

horse race, jumping, gradients;

· Optical design: Unique optical light structure design, uniform light on the surface, no shadow,

The light -free spots, the light is very soft;

· Exterior design: simple and fashionable,

· Product certification: UL, CE, RoHS;
· Environmental characteristics: salt tolerance, corrosion resistance, flame retardant, UV resistance;

· 2 years of quality insurance, working life ≥36000 hours

Share to

Facebook Twitter

Specification

Product Parameter

    PN
    N016084CC3DE1(N1616)
    Voltage
    DC24V
    LED Qty/M
    SMD5050-84LEDs/m
    Pixel/M
    12Pixels-Hi512
    Cutting Length
    83.33mm
    Power
    18W
    CCT
    RGB
    Brightness
    R:78lm  B:175lm  B:38lm
    Dimension

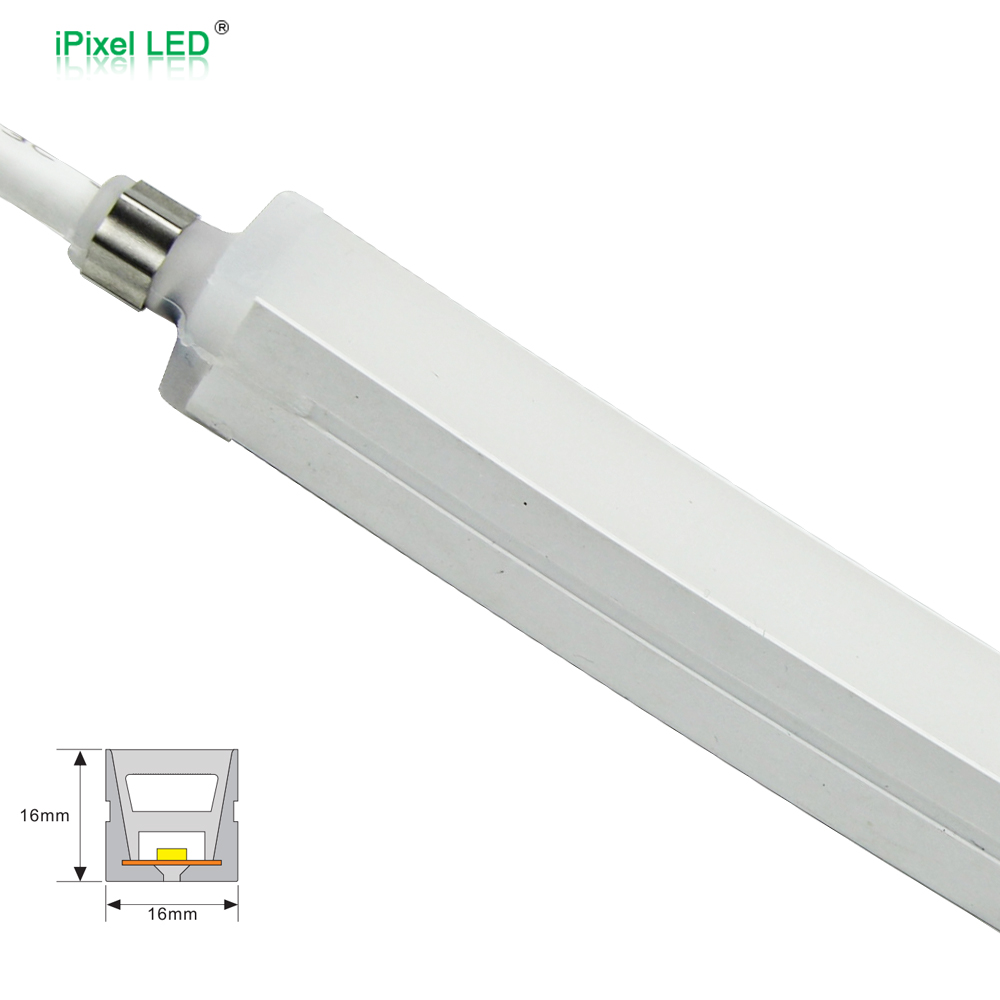

    (5025±15)*16*16mm
    Material
    Silicon
    O.T    -25℃ ~ 60℃
Remarks:
1. The above parameters are tested based on 1M standard products;
2. The luminous flux is allowed to have an error range of ±10%;
3. The above parameters are typical values;
4. The brightness with in 15M is consistent even if one end is powered;
5. Subject to change without prior notice;
6. Length tolerance applies. Actual product dimensions may vary.


Note: Length tolerance applies. Actual product dimensions may vary
