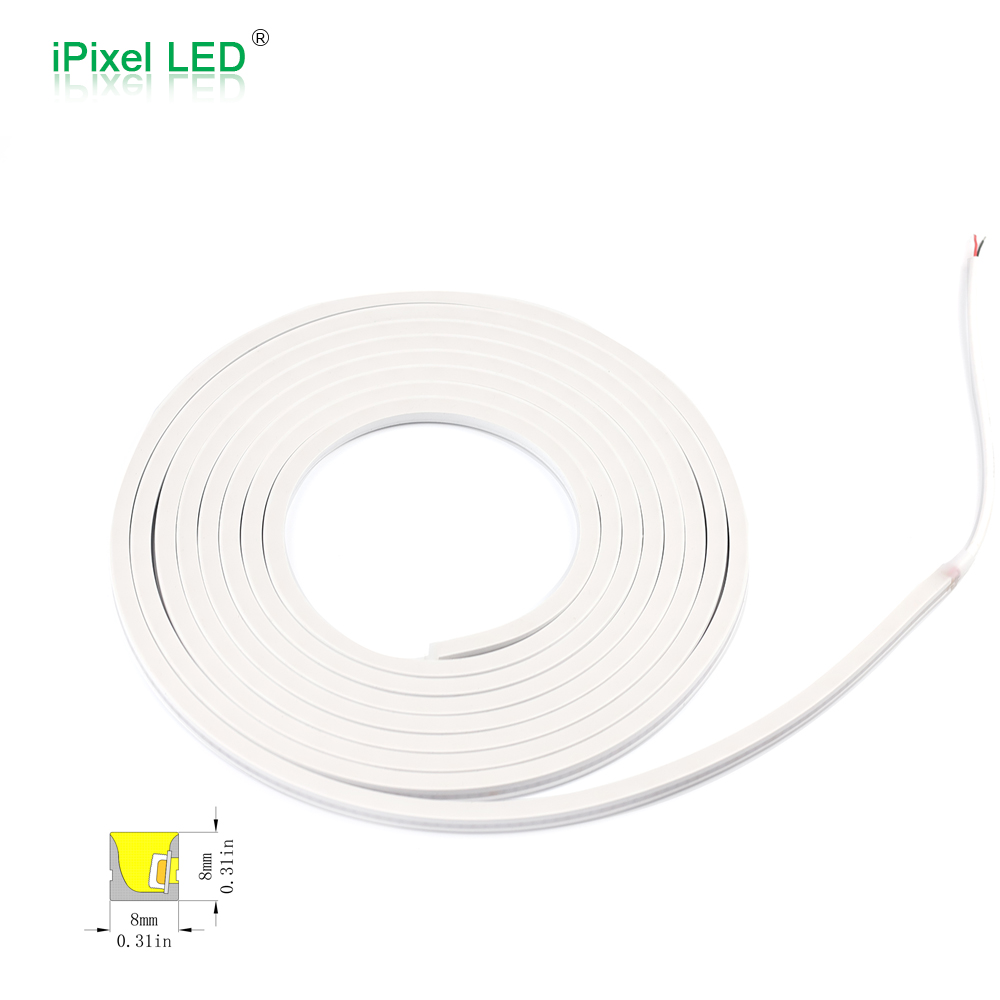

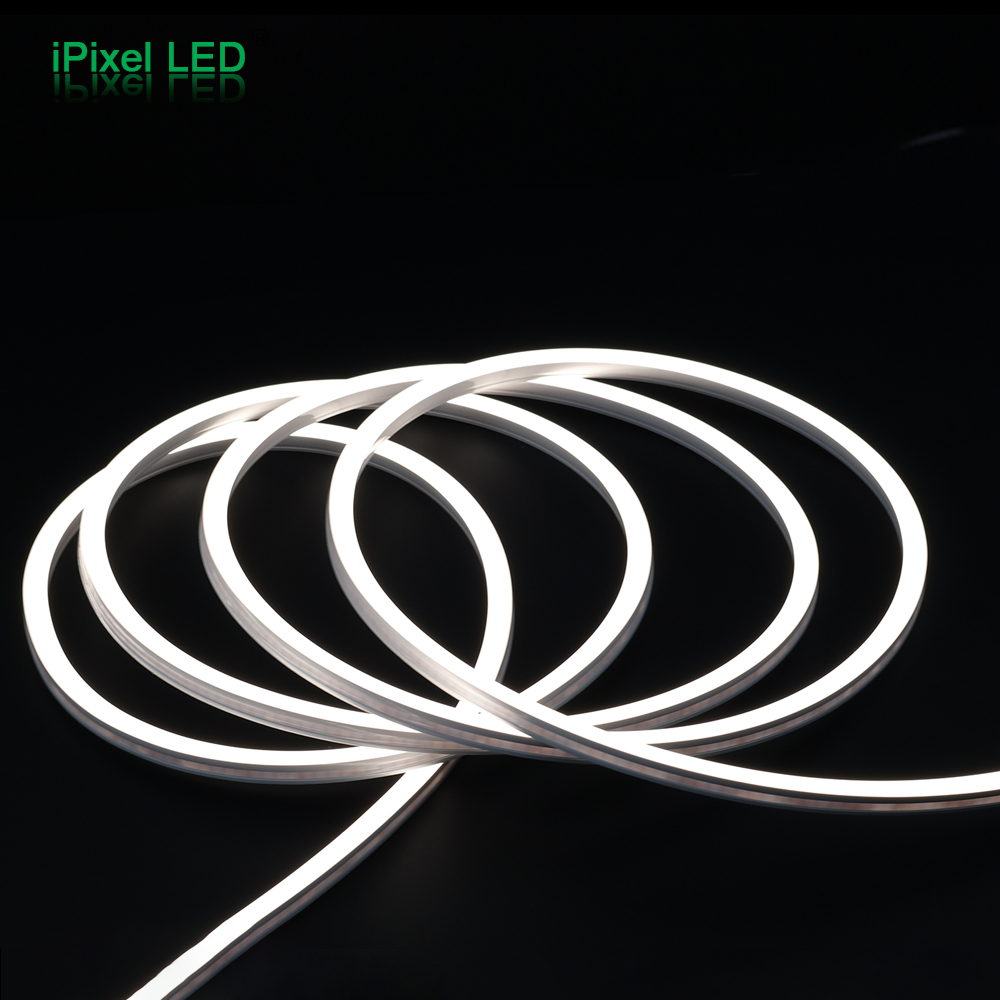

8*8mm Single Color Side View LED neon flex-Mini cut

Description

· 8x8 single-sided positive glowing neon strip, which can be bent left and right;

· Light source: high-efficiency lamp beads;
· Process material: high light transmittance environmental protection
grade silicone material, good flexibility of silicone material;
· Optical design: Unique optical light distribution structure design,
uniform light on the surface without shadows, No spot, very soft light

Datasheet download.jpg

Share to

Facebook Twitter

Specification

Product Parameter

    PN
    N008232XC1LZ(N0808)-Side View
    Voltage
    DC24V
    LED Quantity
    232LEDs/m
    CCT
    2800±200K/3500±300K/5000±450K
    Power
    8W/m
    Lumens/m
    W: 450lm

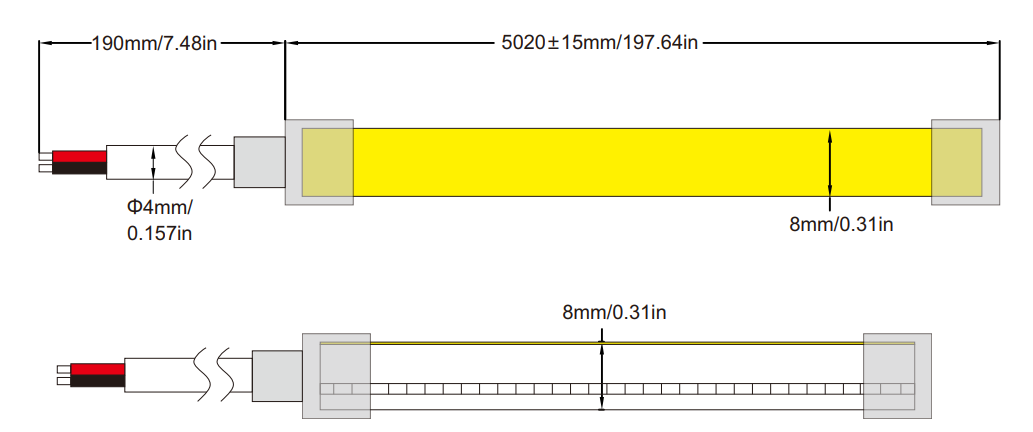

     Size (mm)     (5020±15)x8x8mm
    O.T    -25℃ ~ 60℃

Note: Length tolerance applies. Actual product dimensions may vary.
