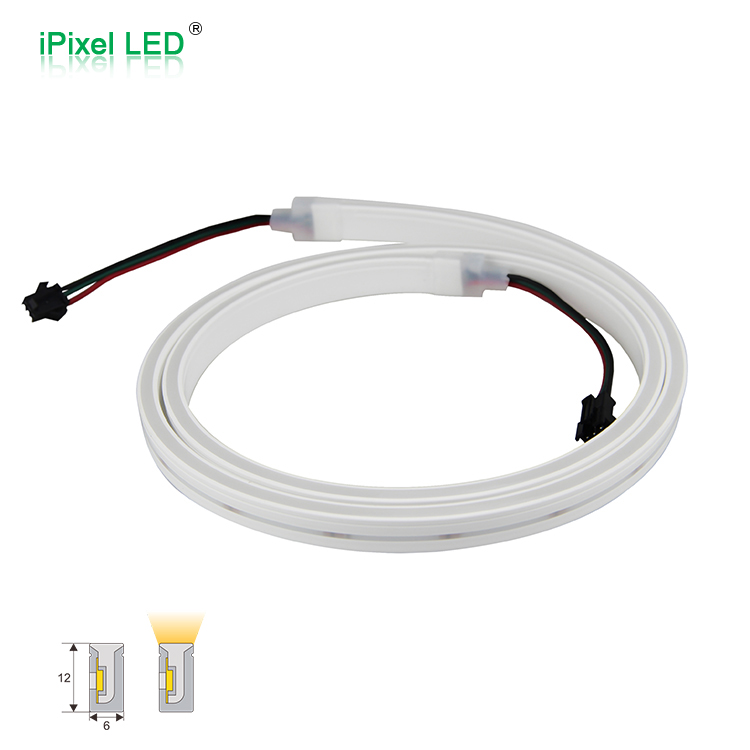

6x12mm Addressable RGB Side View LED Neon strip DC5V
Description
Description
Addressable RGB mini LED Neon flex with side emitting
Silicon material with uniform light distribution without light dot
Cutting unit is 31.25mm and minimum bending diameter is 60mm
SMD RGB LED chip with Micro IC built in, individually control
High UV & salt spray corrosion resistance IP65 for outdoor
3m per reel, 6pcs mounting clips per reel included
Share to
Specification
Product Parameter
| PN | N006096BA3SF |
| Voltage | DC5V |
| LED Type | SMD RGB |
| CCT | RGB |
| Dimension | (5025±15)*6*12 MM |
| Material | Silicone |
| Power | 19W/M |
| Pixel/M | 96Pixels-SPI |
| O.T | -30℃ ~ 45℃ |
Remarks:
1. The above parameters are tested based on 1M standard products;
2. The luminous flux is allowed to have an error range of ±10%;
3. The above parameters are typical values;
4. The brightness with in 15M is consistent even if one end is powered;
5. Subject to change without prior notice.
6. Length tolerance applies. Actual product dimensions may vary
Note: Length tolerance applies. Actual product dimensions may vary
