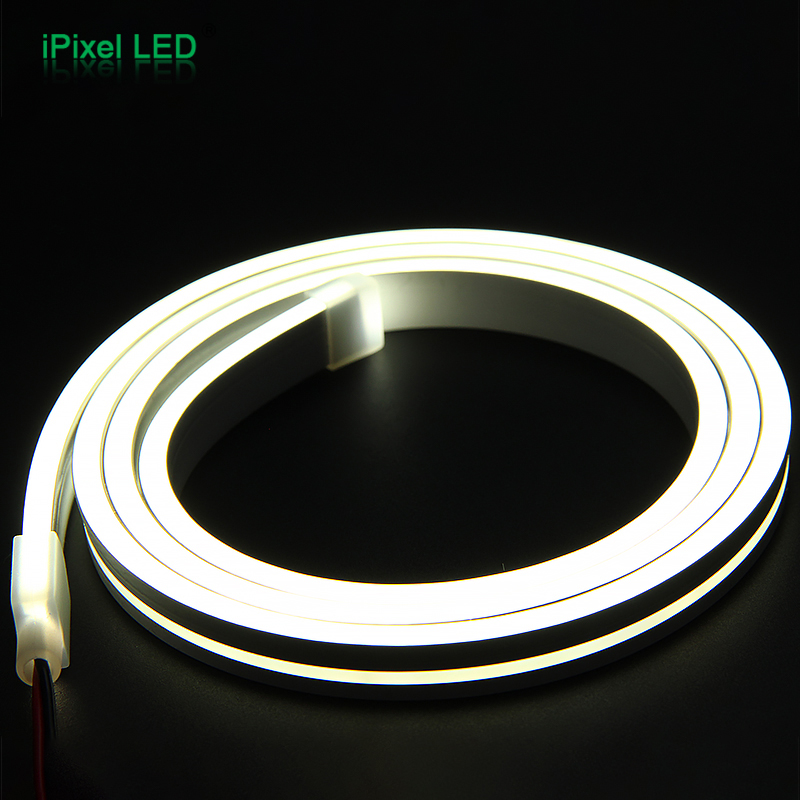

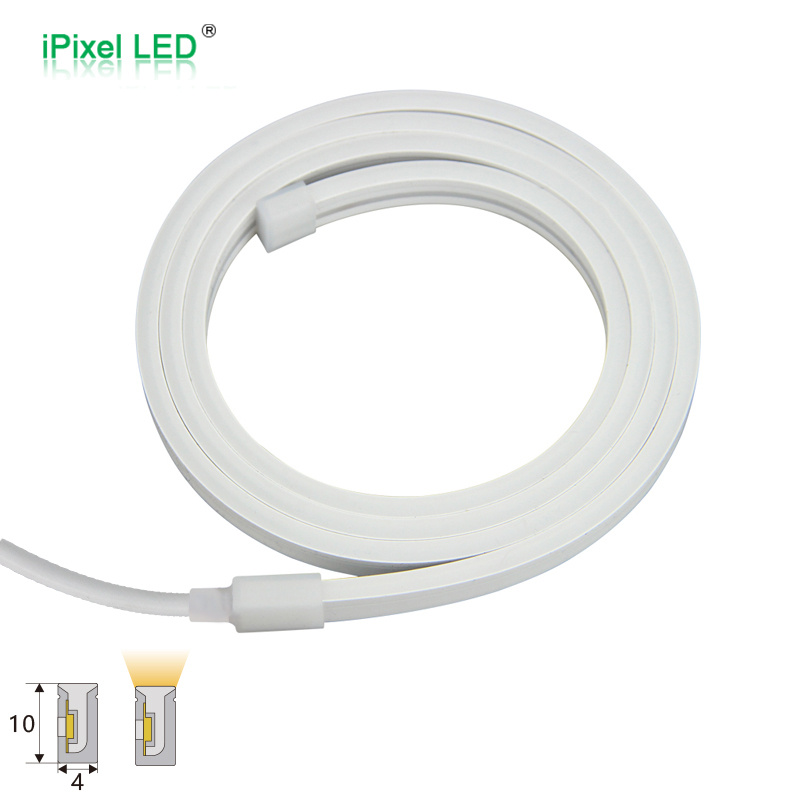

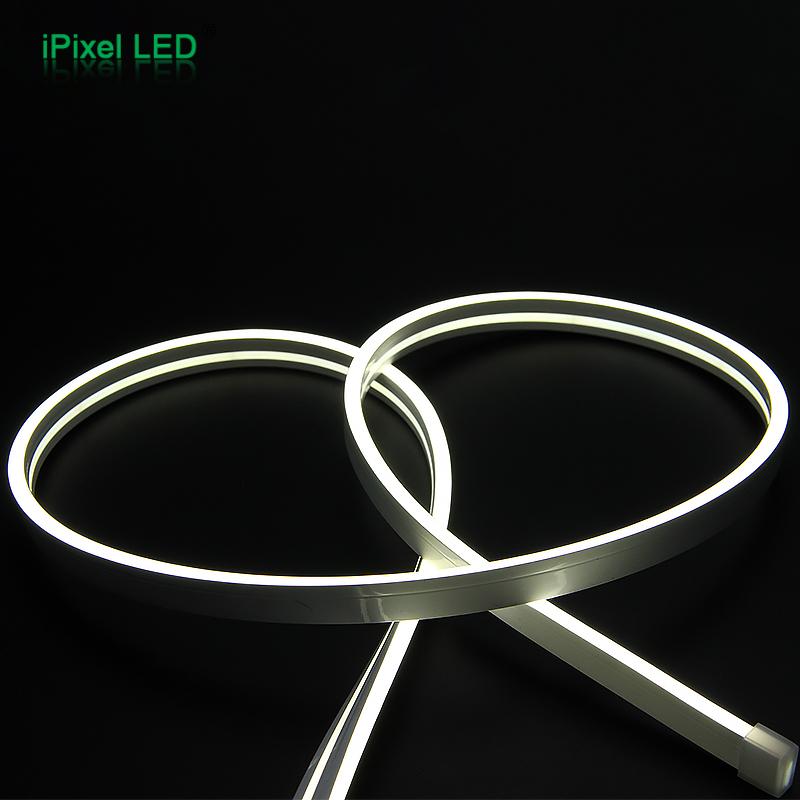

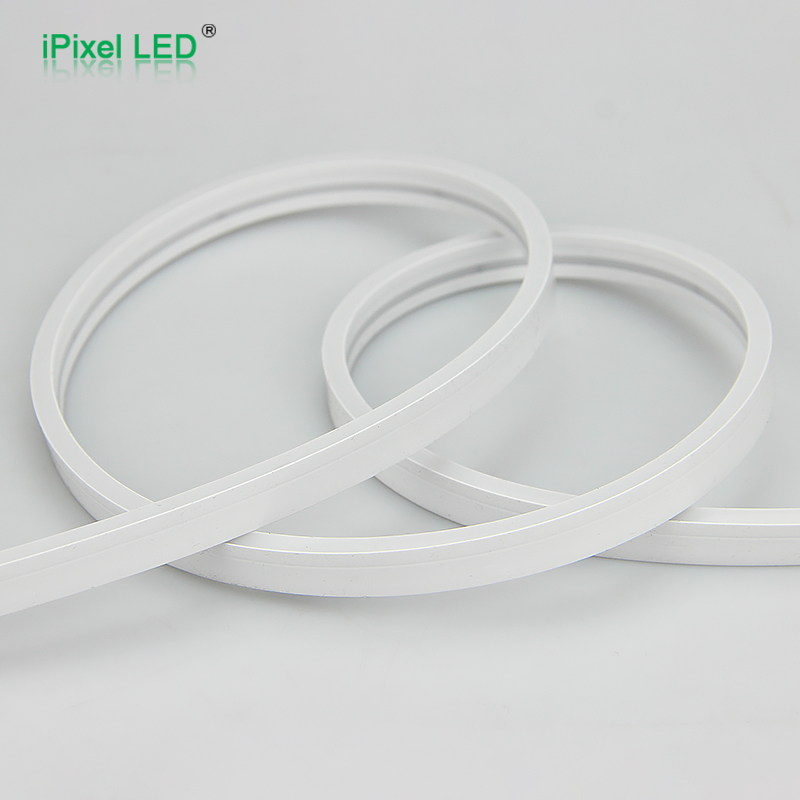

4x10mm single color side emitting led neon strip DC12V/DC24V
Description
Description
This neon strip is side view with a translucent silicone rubber as a diffuser, light uniform and no spot.
It is designed to be bent side to side with light projecting upwards.
This silicone rubber is anti-UV, anti-yellowing, anti-aging, environmental protection, non-toxic, and very soft.
Use highlighted 2835 LED chips, it's long life, low light decay, and good color consistency.
Standard length is 5M/roll, length can be customized, there are cutting marks on the side.
IP65 waterproof for outdoor use
Each roll includes 10pcs alu clips for installation (2pcs/m)
Share to
Specification
Product Parameter
| PN | Ｎ004120BB1LZ | Ｎ004120BC1LZ |
| Voltage | DC12V | DC24V |
| Cutting Length | 25mm | 50mm |
| LED Quantity | 120LEDs/m | 120LEDs/m |
| SMD Type | SMD2835 | SMD2835 |
| Color | 3000K/4000K/6500K | 3000K/4000K/6500K |
| Power | 5W/m | 5W/m |
| Lumens/m | W:210lm | W:210lm |
| Beam Angle | 120° | 120° |
| Size (mm) | (5025±15)x4x10mm | (5025±15)x4x10mm |
| O.T | -25℃ ~ 60℃ | -25℃ ~ 60℃ |
Remarks:
1. The above parameters are tested based on 1M standard products;
2. The luminous flux is allowed to have an error range of ±10%;
3. The above parameters are typical values;
4. The brightness with in 15M is consistent even if one end is powered;
5. Subject to change without prior notice.
6. Length tolerance applies. Actual product dimensions may vary
Dimension (unit:mm)

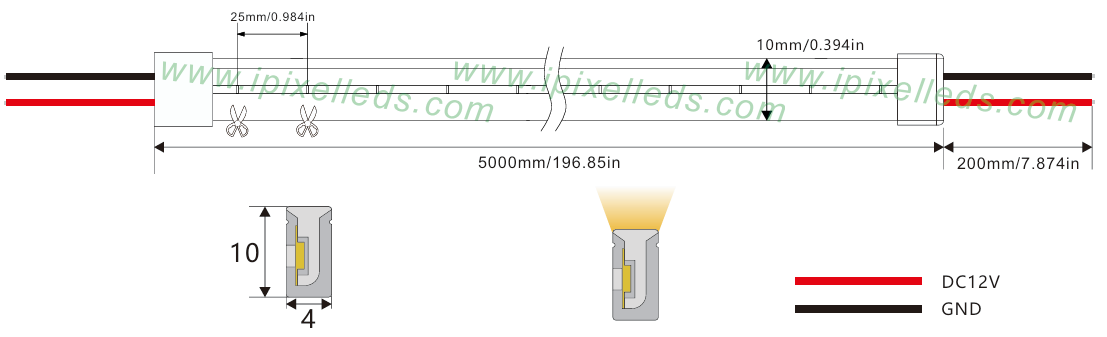

DC12V Type

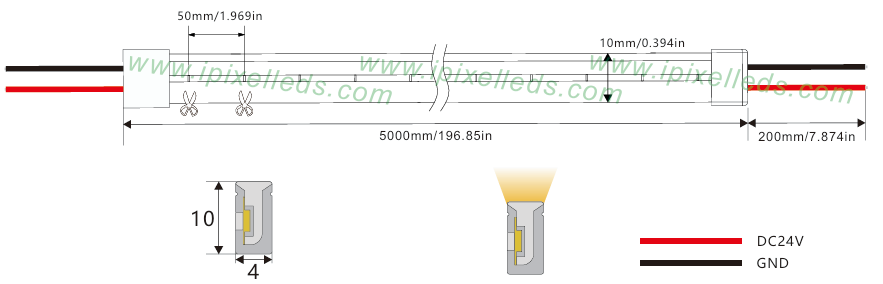

DC24V Type
Note: Length tolerance applies. Actual product dimensions may vary
Accessory
