DIM TO WARM COB LED strip 560LEDs/m DC24V
Description
Description
-High density, the light is even and soft
-High efficiency, remarkable energy saving effect
-Double layer PCB, balancing voltage drop, heat dissipation and flexibility.
-Chip longitudinal distribution, high reliability;
-Dual white design, color changing from 2100K to 2700K.
-SDCM is less than 5 steps
-Standard 5M/roll, length can be customized
-High efficiency, remarkable energy saving effect
-Double layer PCB, balancing voltage drop, heat dissipation and flexibility.
-Chip longitudinal distribution, high reliability;
-Dual white design, color changing from 2100K to 2700K.
-SDCM is less than 5 steps
-Standard 5M/roll, length can be customized
Share to
Specification
Product Parameter
| PN | S010560ZC2PZ |
| Voltage | DC24V |
| SMD Type | COB |
| Power | 12W/m |
| LED Quantity | 560LEDs/m |
| Cutting Length | 50mm |
| CCT | 2100K-2700K |
| Dimension | 5000*10mm |
| Lumens(lm/m) | 900 |
| SCDM | <5 |
| CRI | 90RA |
| O.T | -25℃ ~ 60℃ |
Remarks:
1.The above parameters were tested according to integrating sphere TM-30-15.
2.The output data is based on IP20 and one merter.
3.The data such as power etc, ±15% tolerance is normal.
4.IP protection process causes changes in size, CCT and luminous flux

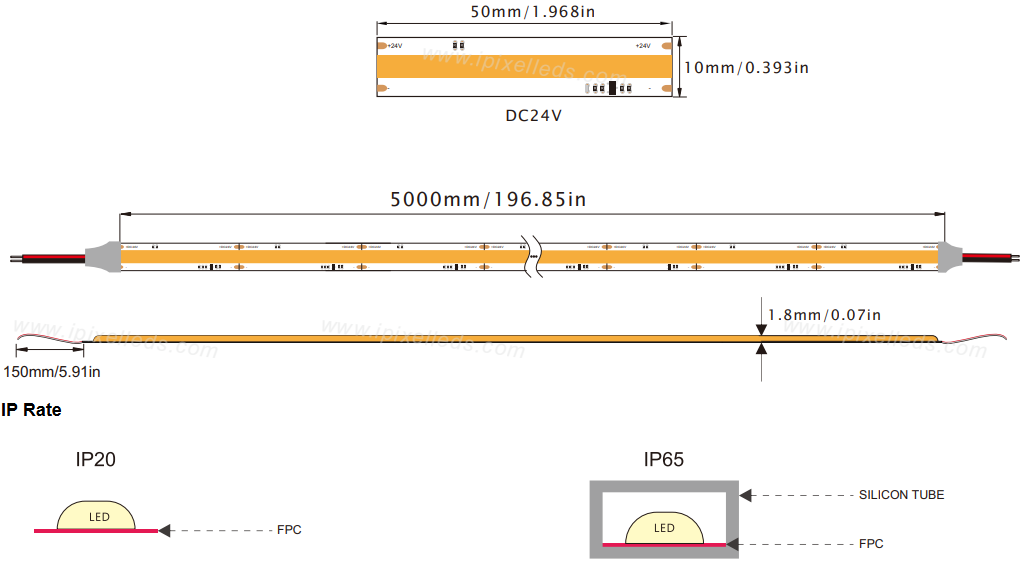

Dimension (unit:mm)
IP Rate
