Mini cut COB 8mm 528LEDs/m single color led strip DC24V
Description
Description
-This led strip uses COB LED chips, high density with 528LEDs/m, Mini Cut 11.36mm.
-Input voltage is DC24V
-Flexible PCB, the FPCB color is white
-The FPCB width is 8mm.
-Standard 5M/roll, length can be customized
Share to
Specification
Product Parameter
| PN | S008528ZC1LZ |
| Voltage | DC24V |
| Power | 10W/m |
| SMD Type | COB |
| LED Quantity | 528LEDs/m |
| CCT | 3000K/4000K/6500K |
| Lumens(lm/m) | 720Lm |
| SCDM | <5 |
| Cutting Length | 11.36mm |
| Size(mm) | 5000x8mm |
| CRI | 90RA |
| O.T | -25℃ ~ 60℃ |
Remarks:
1.The above parameters were tested according to integrating sphere TM-30-15.
2.The output data is based on IP20 and one merter.
3.The data such as power etc, ±15% tolerance is normal.
4.IP protection process causes changes in size, CCT and luminous flux

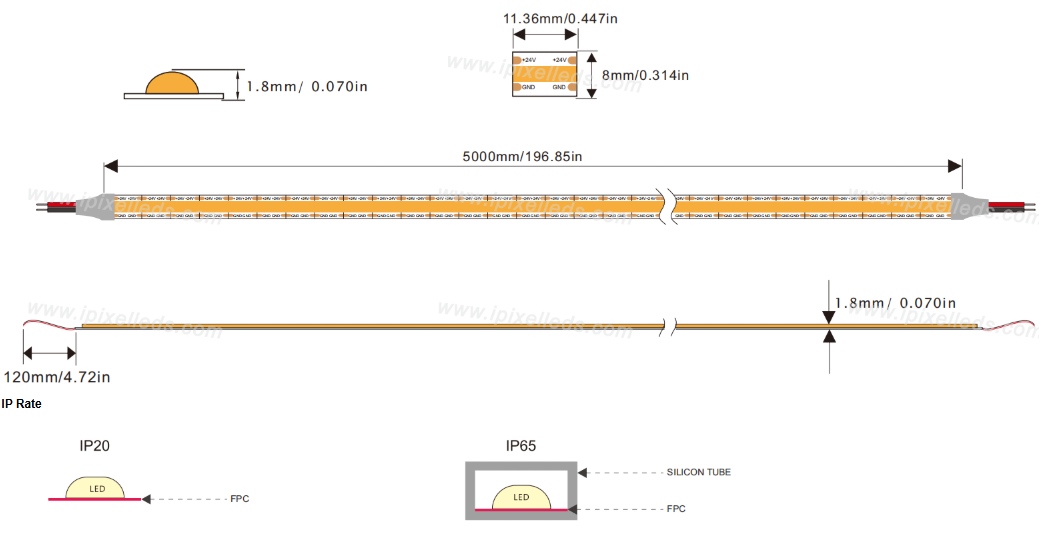

Dimension (unit:mm)
IP Rate
