Dual color 1515 LED strip 423LEDs/M DC24V
Description
Description

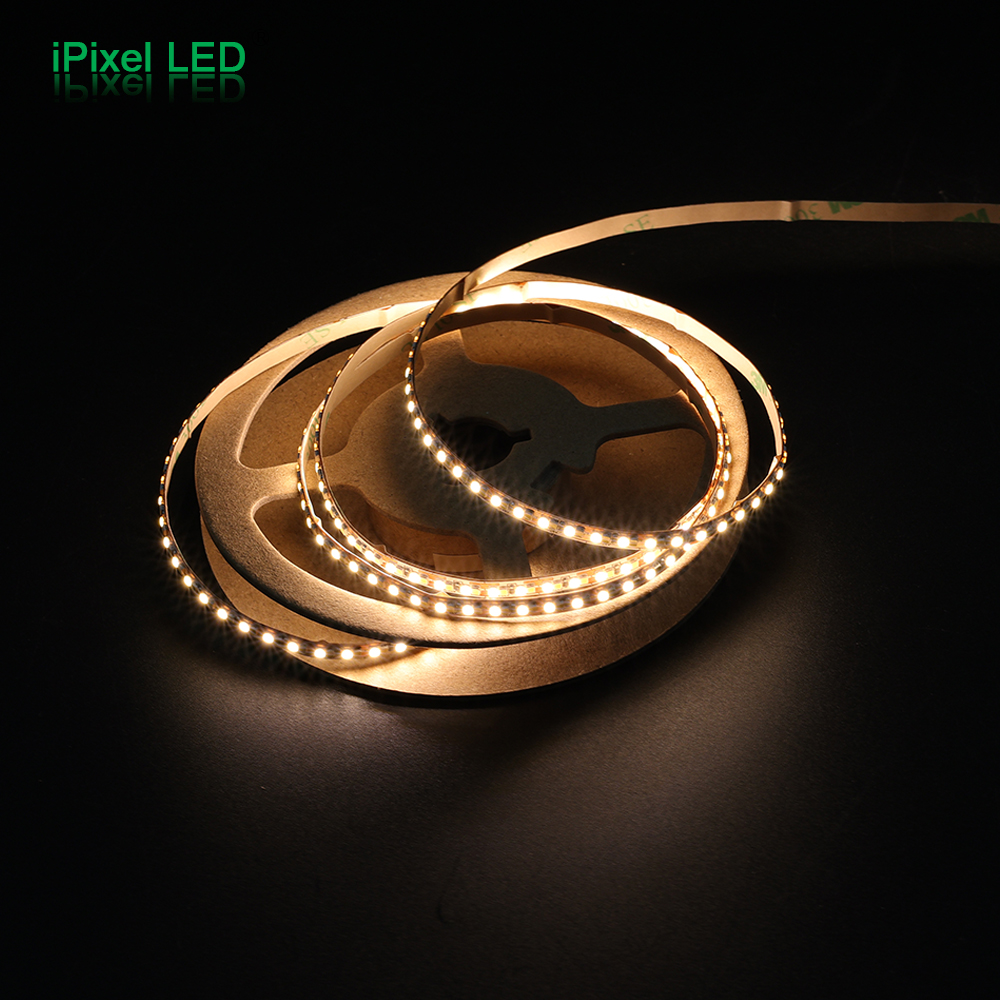

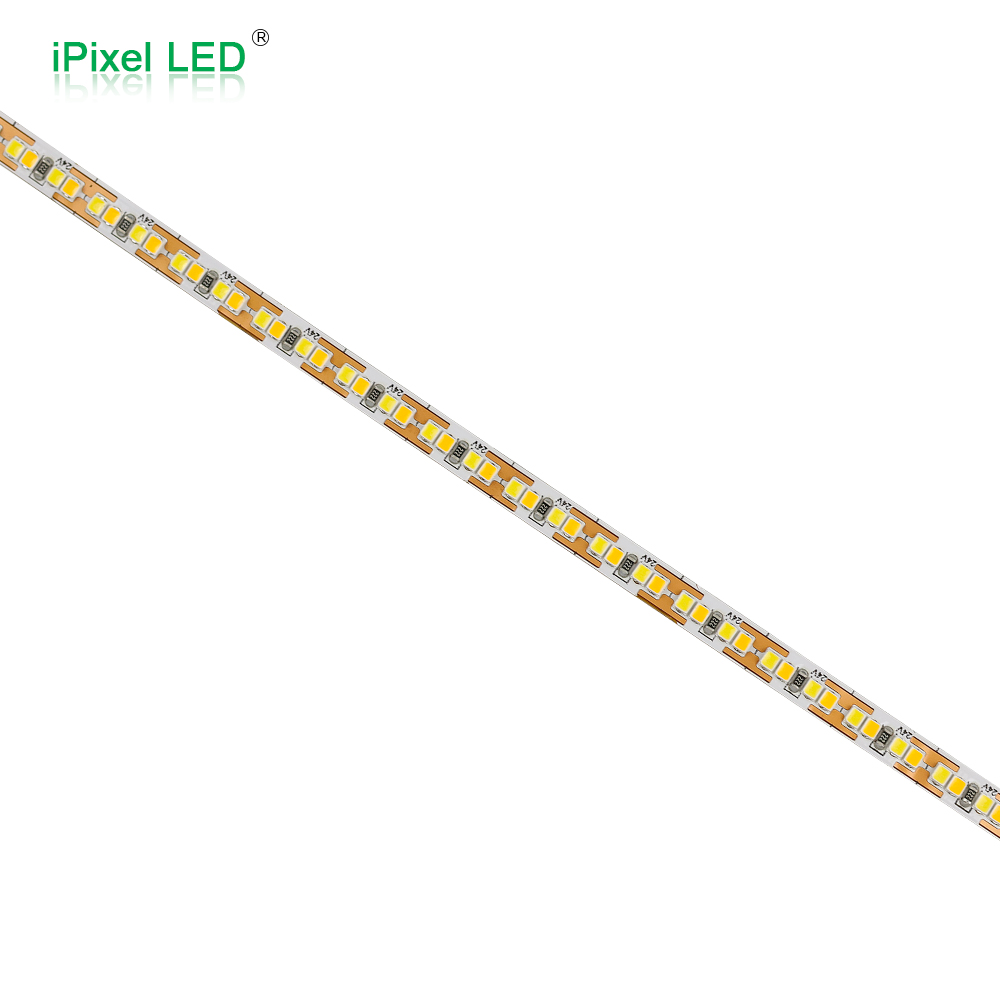

-High density CCT color Adjustable LED strip has 423pcs 1515 LEDs

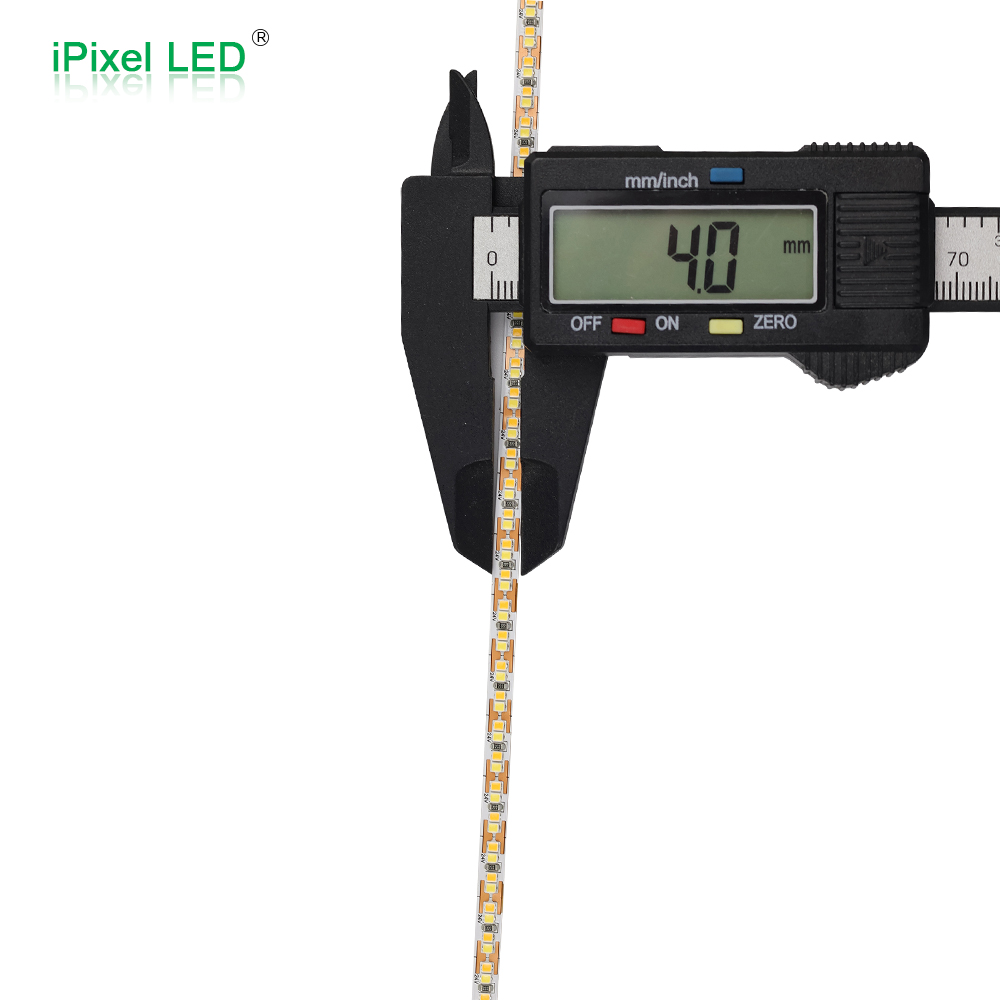

-With 4mm Width
-Cut-able every 4LEDs & 9.26mm
-All soldering Pads are very large, allowing you to easily cut and reconnect
-DC24V constant voltage operation
-Both ends have 3pin bare wires for powering
-3M tape attached on backside of FPC
Share to
Specification
Product Parameter
| PN | S004432UC2PZ |
| Voltage | DC24V |
| LED Type | SMD 5050 |
| LED Quantity | 60LEDs/m |
| CCT | WW: 3000K + W:6500K |
| Dimension | 5000*4mm |
| Lumens/m | W:720lm/WW:765lm |
| PCB Color | White |
| Power | 9W/m |
| IP Rate | IP20/IP65 |
| O.T | -25℃ ~ 60℃ |
Remarks:
1.The above parameters were tested according to integrating sphere TM-30-15.
2.The output data is based on IP20 and one merter.
3.The data such as power etc, ±15% tolerance is normal.
4.IP protection process causes changes in size, CCT and luminous flux.

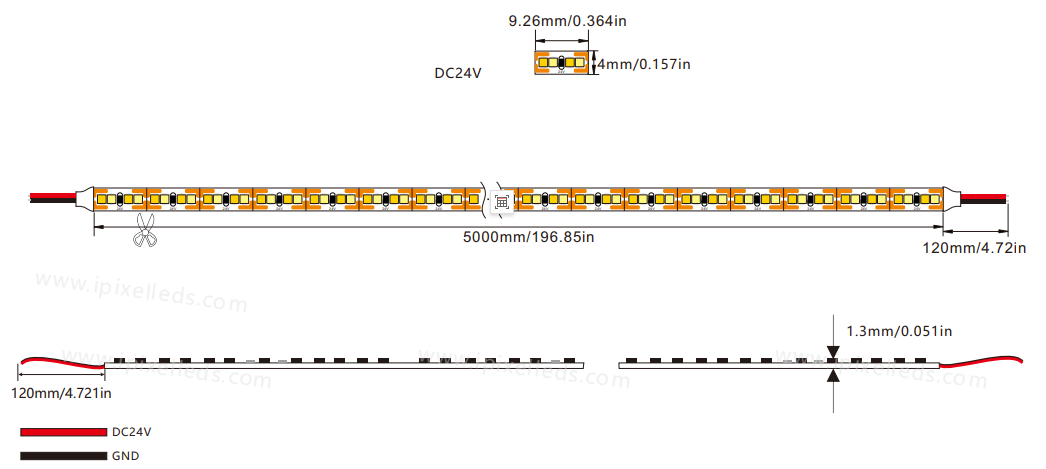

Dimension (unit:mm)
IP Rate
