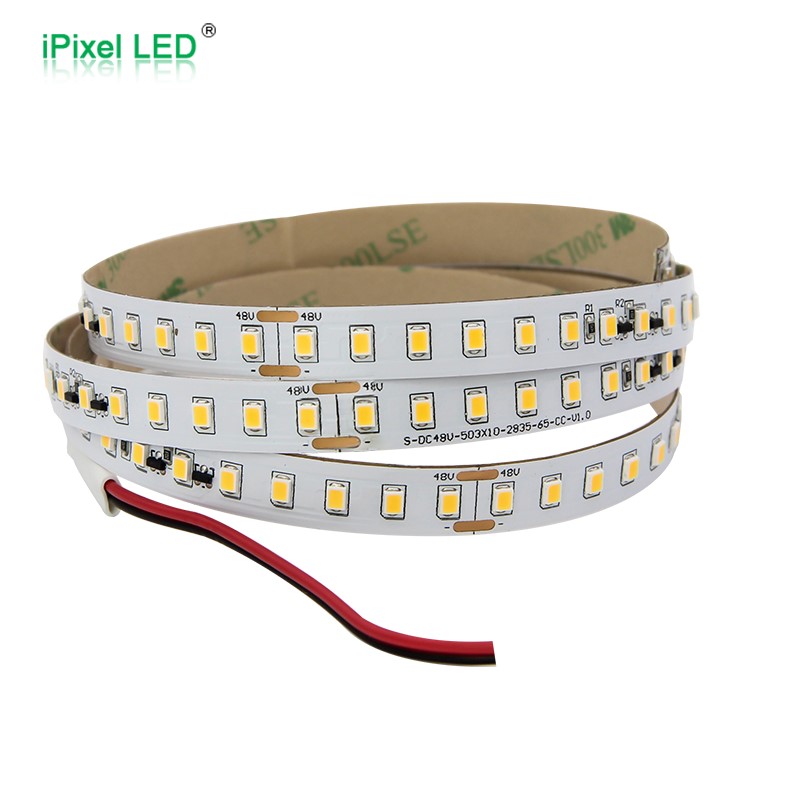

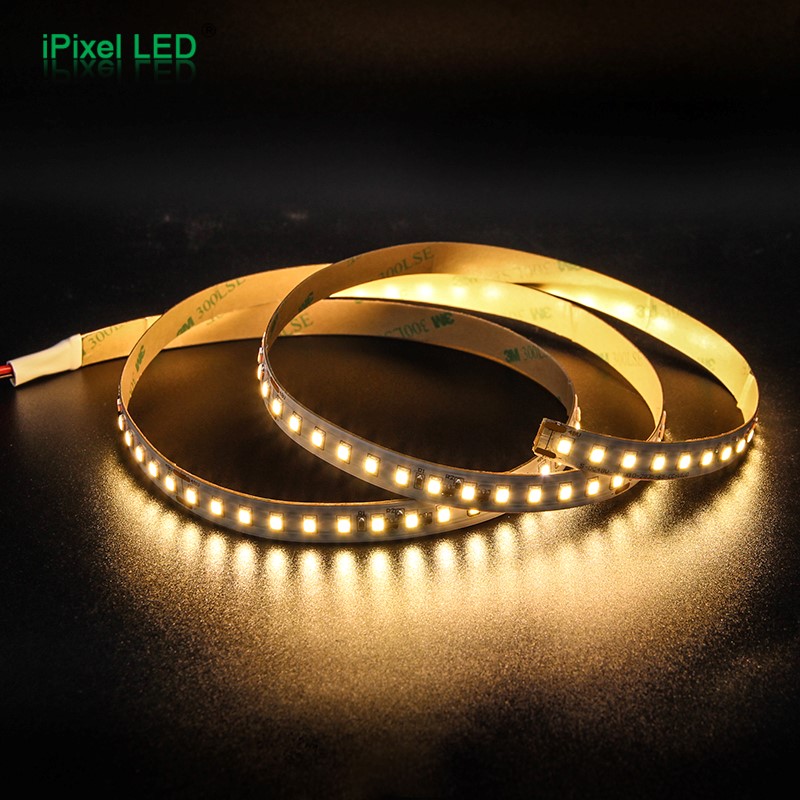

Constant current 2835 single color LED strip 130LEDs/M DC48V
Description
Description
-Use 2835 high brightness led, high purity gold line, SANAN chip.
-130LEDs/M, high luminance efficiency and high Ra.
-Input voltage DC48V. Luminance efficiency
-Constance current design,brightness keeps the same
-Flexible PCB, FPC color: white.
-1+2 OZ copper thickness FPC, 10mm PCB width.
-Single-ended power supply for 30 meters at most
Share to
Specification
Product Parameter
| PN | S010130BJ1HZ |
| Voltage | DC48V |
| LED Type | SMD 2835 |
| LED Quantity | 130LEDs/m |
| Dimension | 5000*10mm |
| Cutting Length | 100mm/13LEDs |
| Luminance/m | 700Lm |
| SDCM | <5, 3 step 1 bin |
| RA | 90 |
| Power | 7W/m |
| Beam Angle | 120° |
| IP Rating | IP20/IP64/IP65/IP67 |
| O.T | -25℃ ~ 60℃ |

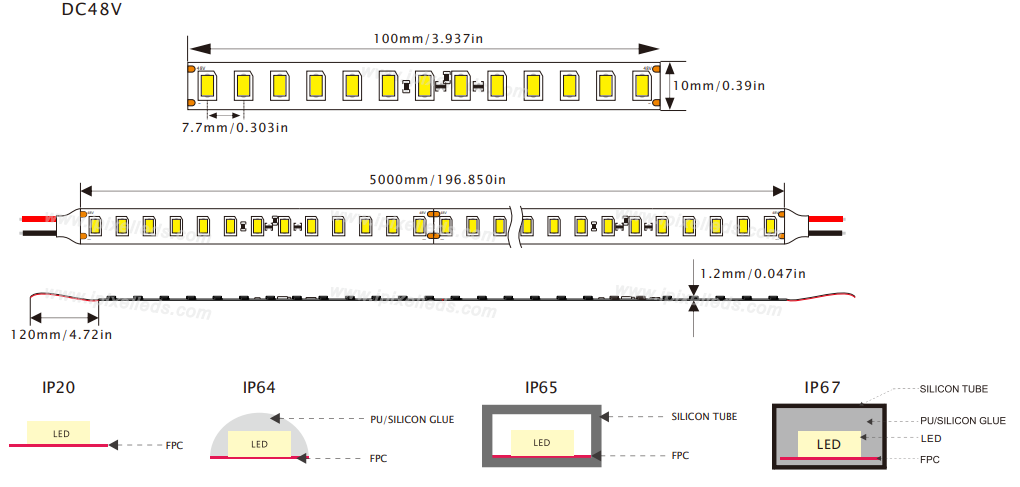

Dimension (unit:mm)
