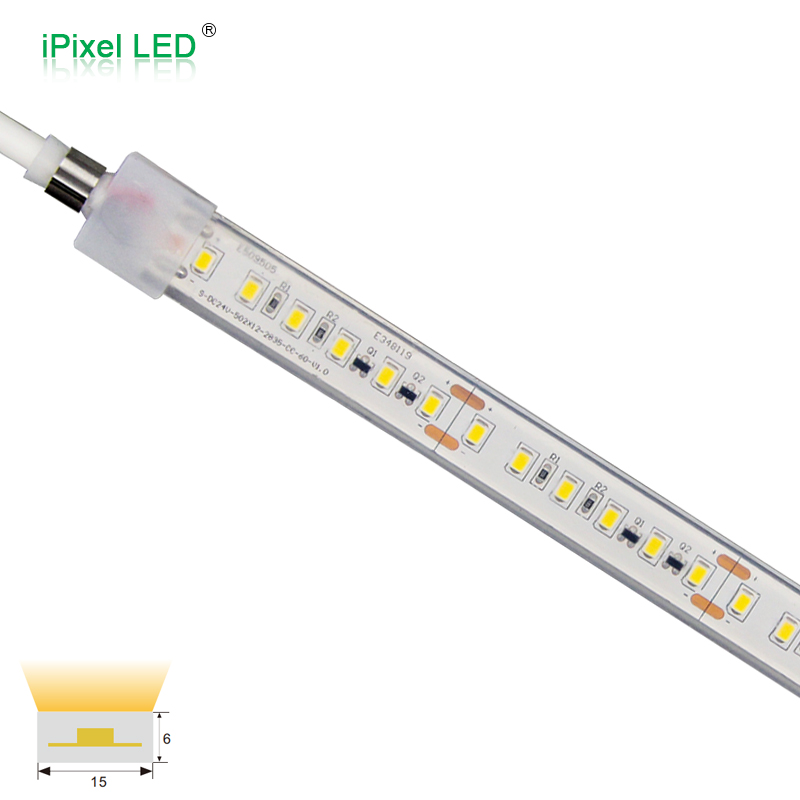

IP67Pro Constant current SMD 2835 LED Strip 120LEDs/m DC24V

Description

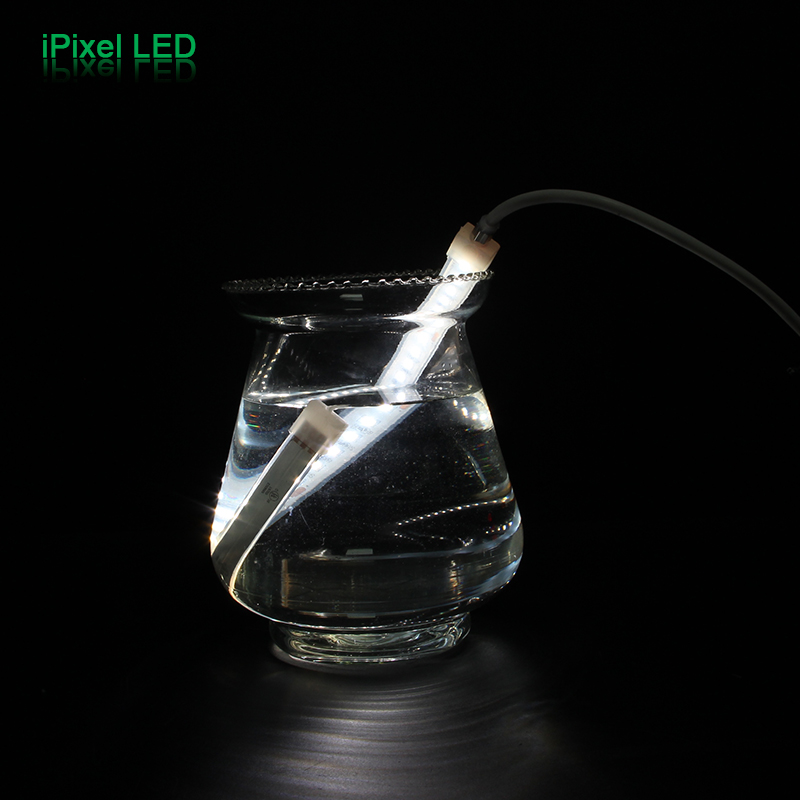

-use solid extrusion technology for sealing thoroughly,

 -achieving a waterproof rating of IP67Pro.

-It adopts triode constant current, can be super-long connection, the brightness with in 15M is consistent

even if one end is powered, suitable for large projects

 -DC24V constant current, cuttable every 6LEDs/50mm

 -The CCT of white can be customized as warm white or pure white or cool white

Datasheet download.jpg

Share to

Facebook Twitter

Specification

Product Parameter

    PN
    S012120BC1HZ(N1506)
    Voltage
    DC24V
    Power
    10W/m
    SMD Type
    SMD 2835
    LED Quantity    120LEDs/m
    View Color
    3000K/4000K/6500K
    Dimension
    5000*15*6mm
    Lumens/m
    750Lm
    Material    FPC+silica gol
    ErP 2019
    G
    Minimum Cutting Length
    50mm
    IP Rate    IP68
