Constant Current 12mm single color 2835 LED strip 120LEDs/m DC24V

Description

This flex led strip uses SMD2835 LED chip, 15M

The width of PCB is 12mm, and white PCB, 1+2 Ounce copper

DC24V, cuttable every 6LEDs/50mm

It adopts triode constant current, can be super-long connection, the brightness with in 15M is consistent even if one end is powered, suitable for large projects

Standard size is 15M/roll, but custom length or terminal wires are accepted

Both ends of each led strip are welded with 2Pin power wire

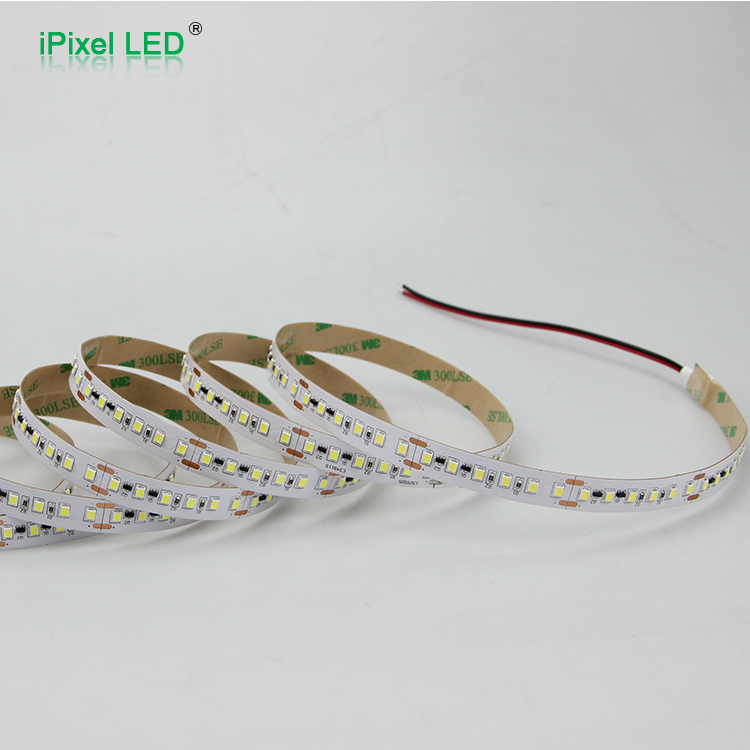

The back of each strip with 3M adhesive, easy to tear and paste

The IP rate can be IP20, IP64, IP65 and IP67 Not just can you choose a different CCT white light, the strip also can be Red/Green/Blue etc

Datasheet download.jpg

Share to

Facebook Twitter

Specification

Product Parameter

    PN
    S012120BC1HZ
    Voltage
    DC24V
    SMD Type
    SMD 2835
    LED Quantity    120LEDs/m
    View Color
    3000K/4000K/6500K
    Dimension
    15000*12mm
    Lumens/m
    920lm
    Material    FPC
    Power
    10W/m
    Minimum Cutting Length
    50mm
    IP Rate    IP20/IP64/IP65/IP67

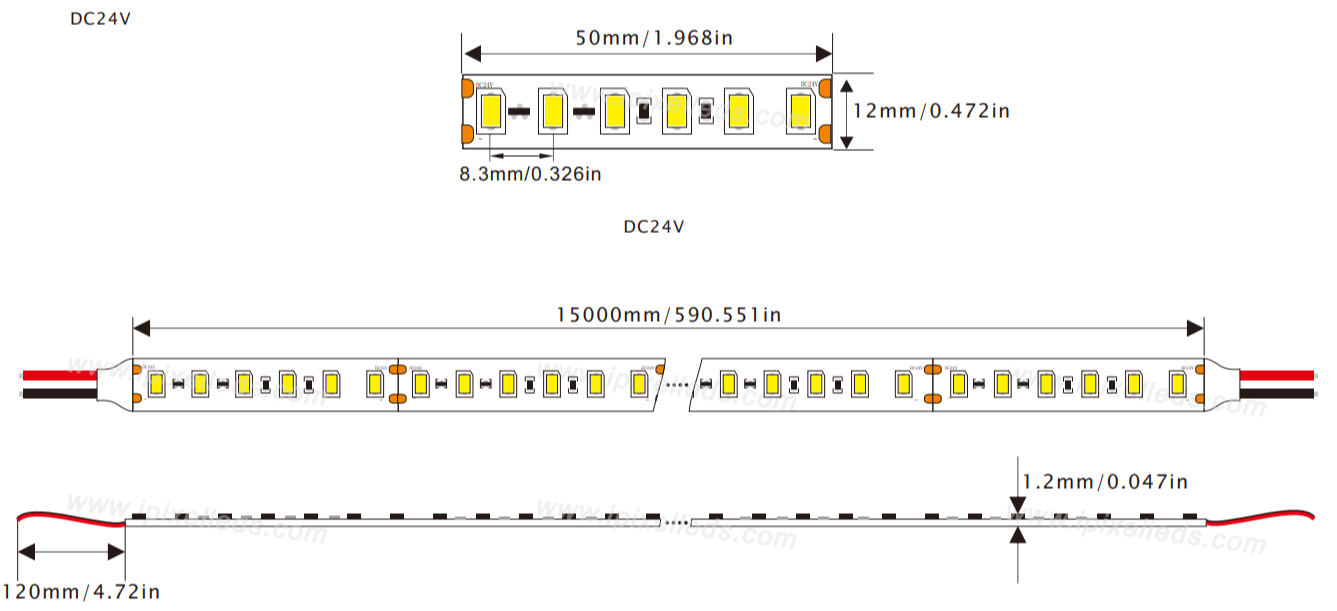

Dimension (unit:mm)
