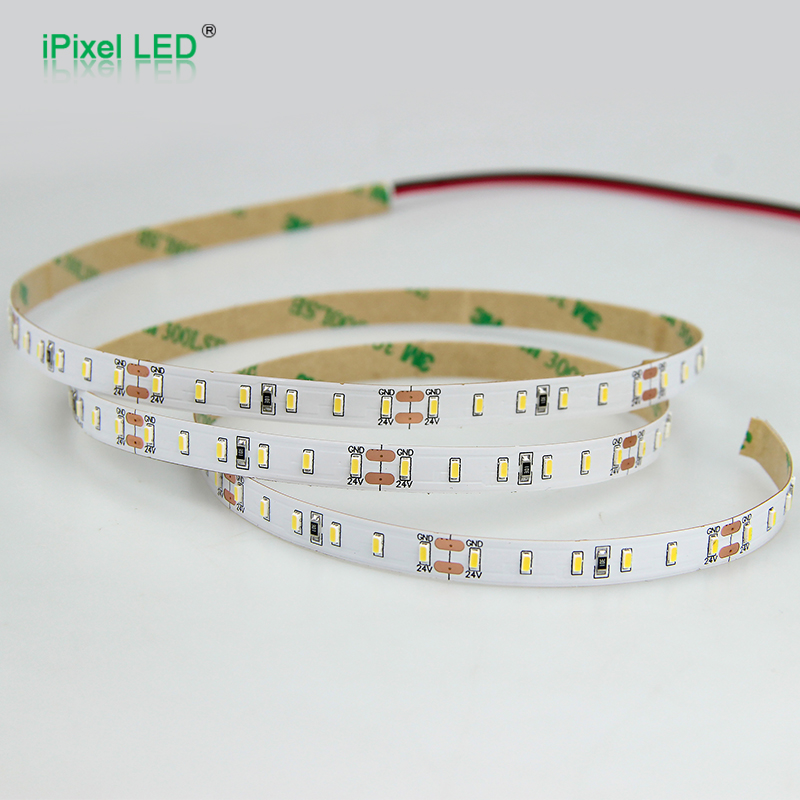

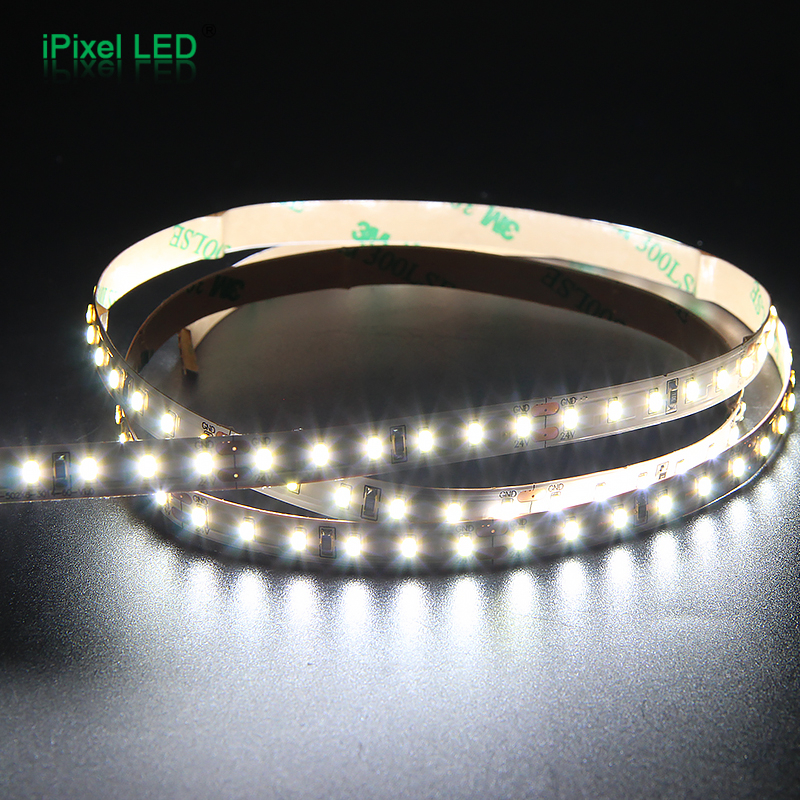

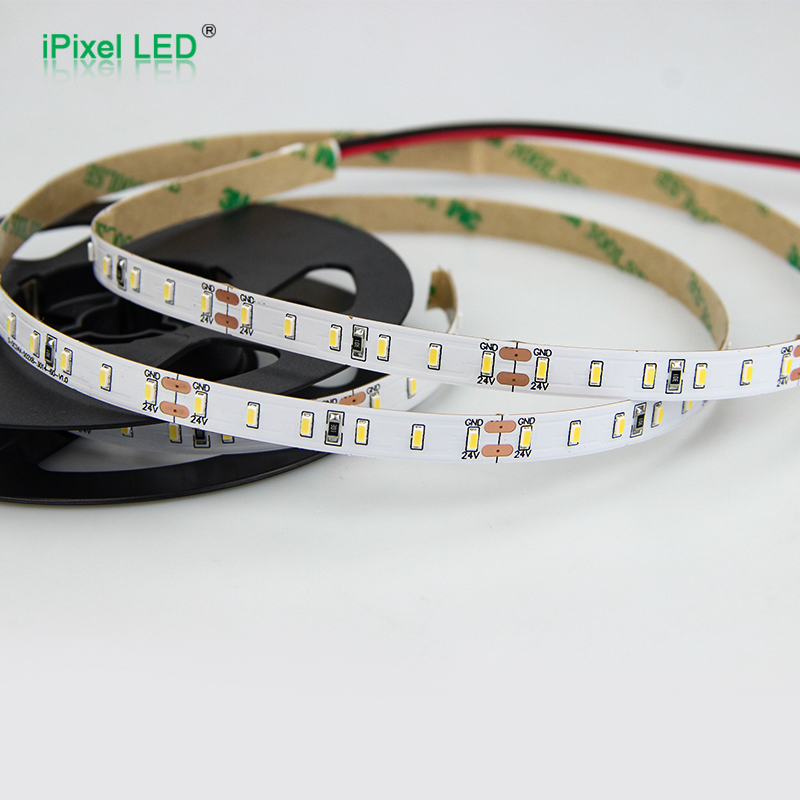

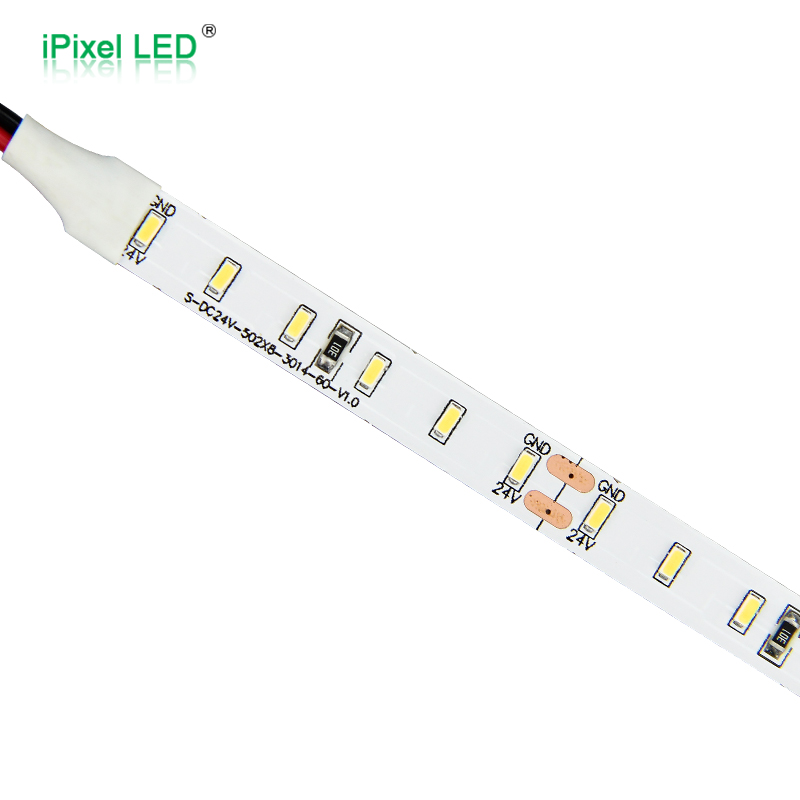

3014 8mm single color flex led strip 120LEDs/m DC24V
Description
This led strip with 120pcs high quality SMD3014 LED chips
The input voltage is DC24V
Flexible PCB, the FPCB color is white
it's easy to custom High CRI or different color temperature.
Standard 5M/roll, length can be customized
Share to
Specification
Product Parameter
| PN | S008120GC1LZ |
| Voltage | DC12V |
| Power | 10W/m |
| LED Type | SMD3014 |
| LED Density | 120LEDs/m |
| CCT | 3000K/4000K/6500K |
| Luminous Flux | 920lm |
| CRI | RA≥90 (Ra97 optional) |
| SDCM | ＜5 |
| Beam Angle | 120° |
| PCB Color | White |
| PCB Width | 50mm |
| Copper Thickness | 3oz |
| Cutting Length | 50mm |
| Size | 5000*8mm |
| Roll Length | 5m |
| Dimming | PWM |
| IP Rating | IP20/IP64/IP65/IP67 |
| Operating Temp. | -25℃ ~ 60℃ |
| Warranty | 3 years |
| Certifications | UL, CE, RoHS, REACH |
Dimension (unit:mm)
