Note: Length tolerance applies. Actual product dimensions may vary.
3*6mm 2 Wires Two color side emitting led neon strip DC24V
Description
· 3x6mm single-sided side emitting neon strip, which can be bent left and right;
· Light source: high-efficiency lamp beads;
· Process material: high light transmittance environmental protection
grade silicone material, good flexibility of silicone material;
· Optical design: Unique optical light distribution structure design,
uniform light on the surface without shadows, No spot, very soft light
Share to
Specification
Product Parameter
| PN | Ｎ003432XC2PZ(N0306)-Side View |
| Voltage | DC24V |
| LED Quantity | 432LEDs/m |
| LED Type | SMD1515 |
| CCT | 2500±250K/4600±450K |
| Power | 9W/m |
| Lumens/m | WW:135lm CW:145 |
| Cutting Length | 9.26mm |

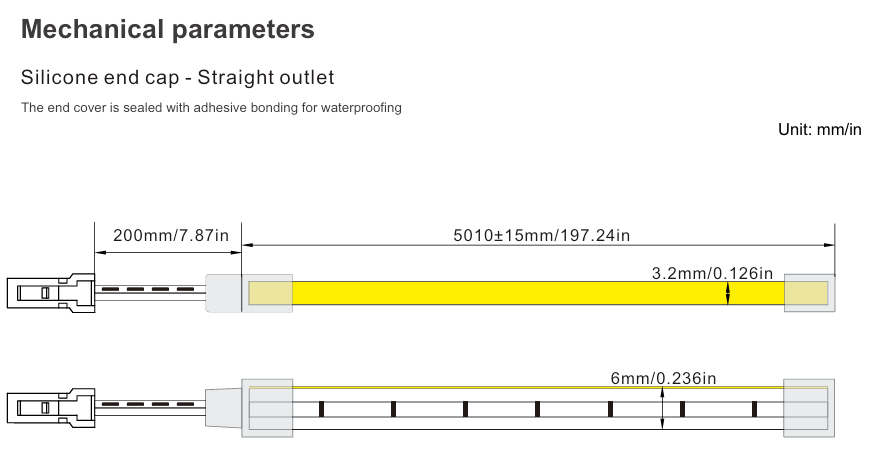

| Size (mm) | (5010±15)x3x6mm |
| O.T | -25℃ ~ 60℃ |
