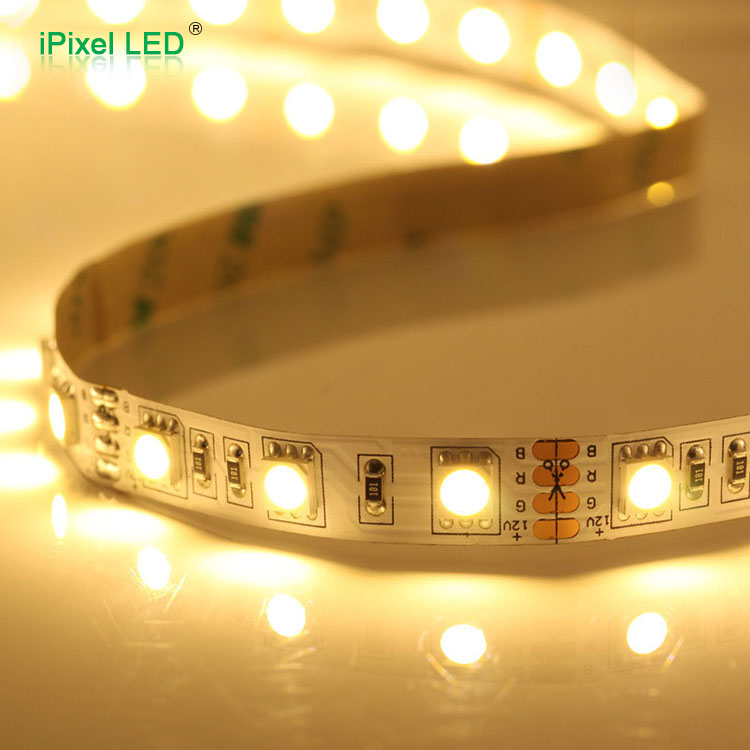

SMD 5050 10mm static color LED strip 60LEDs/M
Description
This fexible LED strip solders 60pcs SMD 5050 LEDS per meter
FPC in white color with 10mm Width
All soldering Pads are very large, allowing you toeasily cut and reconnect

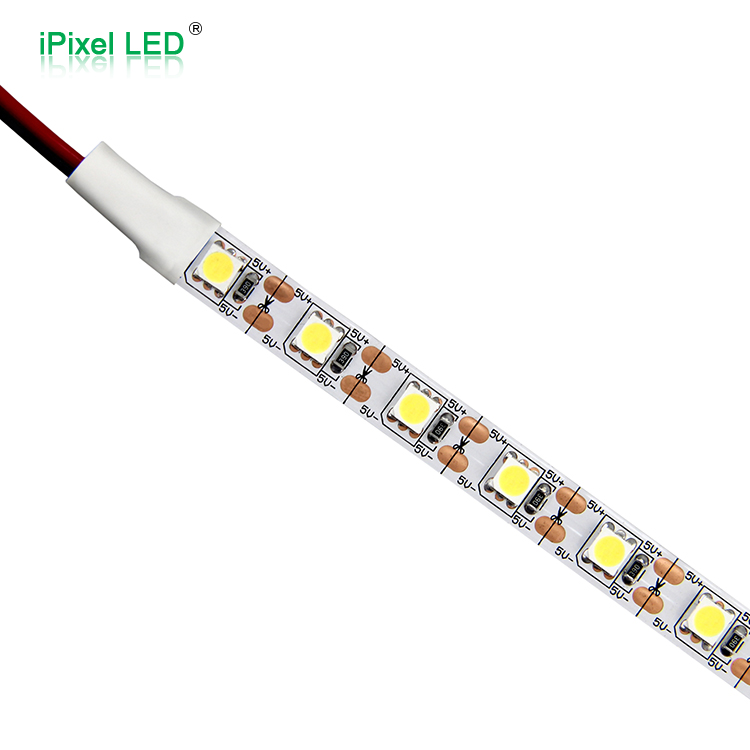

Both ends have 2pin bare wires for powering

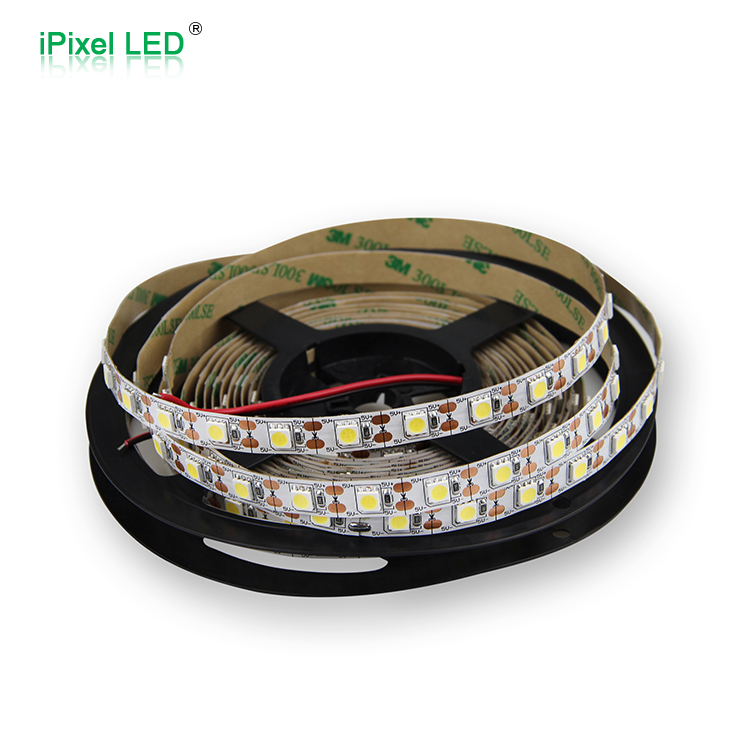

3M tape attached on backside of FPc, 5 meters in a reel,3 different Waterproof types, lP64, 1P65, 1P67
A variety of colors are available
Share to
Specification
Product Parameter
| PN | S010060CA1LZ | S010060CB1LZ | S010060CC1LZ |
| Voltage | DC5V | DC12V | DC24V |
| Power | 12W/m | 14.4W/m | 14.4W/m |
| LED Type | SMD 5050 | SMD 5050 | SMD 5050 |
| LED Quantity | 60LEDs/m | 60LEDs/m | 60LEDs/m |
| Cutting lenght | 16.7mm/1LED | 50mm/3LED | 100mm/6LED |
| CCT | 3000K/4000K/6500K | 3000K/4000K/6500K | 3000K/000K/6500K |
| Dimension | 5000*10mm | 5000*10mm | 5000*10mm |
| Lumens/m | 800lm | 1070lm | 1070lm |
| SDCM | ＜5 | ＜5 | ＜5 |
| Power | 14.4W/m | 14.4W/m | 14.4W/m |
| CRI | 80RA | 80RA | 80RA |
| O.T | -25℃ ~ 60℃ | -25℃ ~ 60℃ | -25℃ ~ 60℃ |

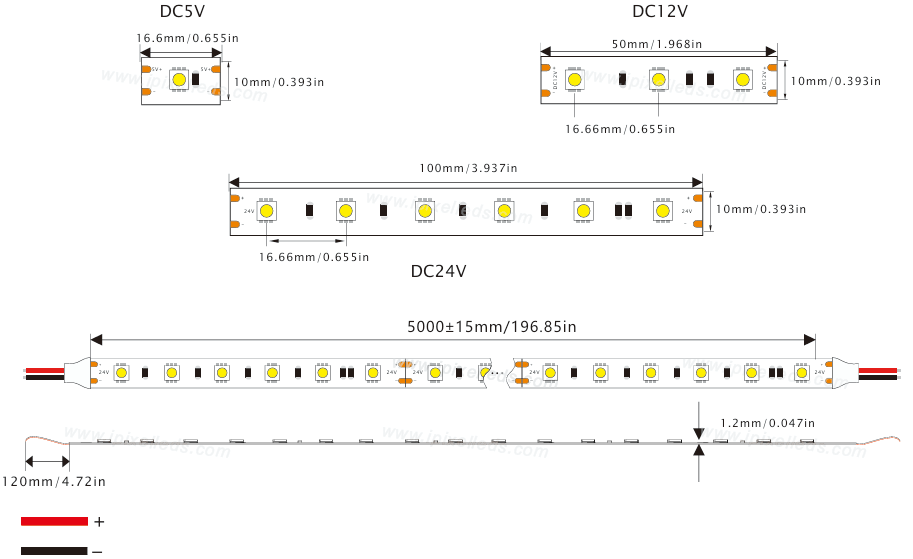

Dimension (unit:mm)
