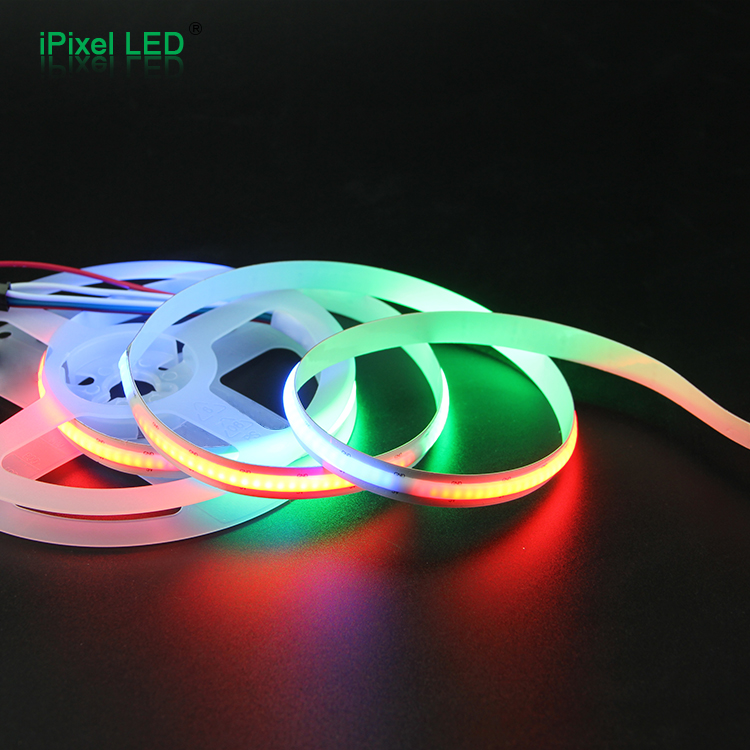

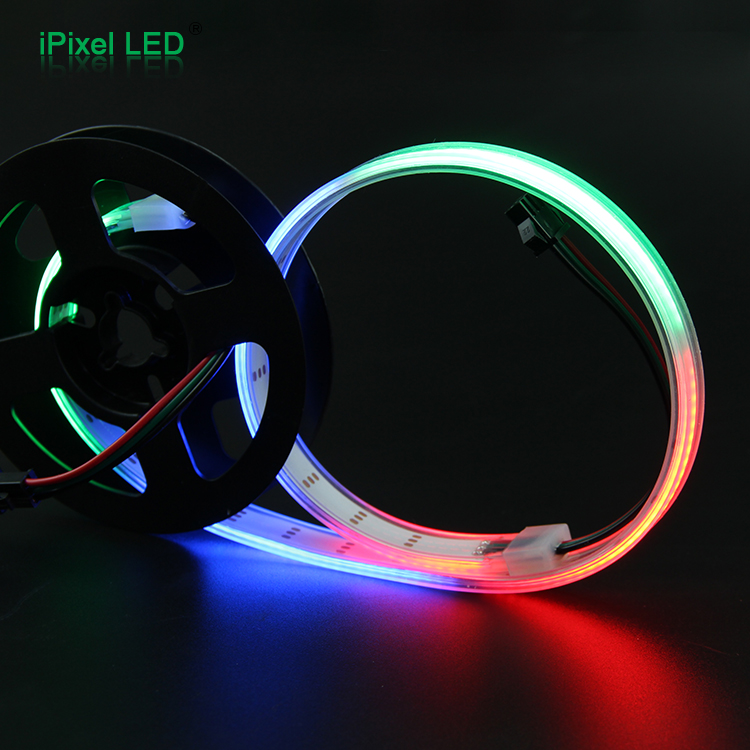

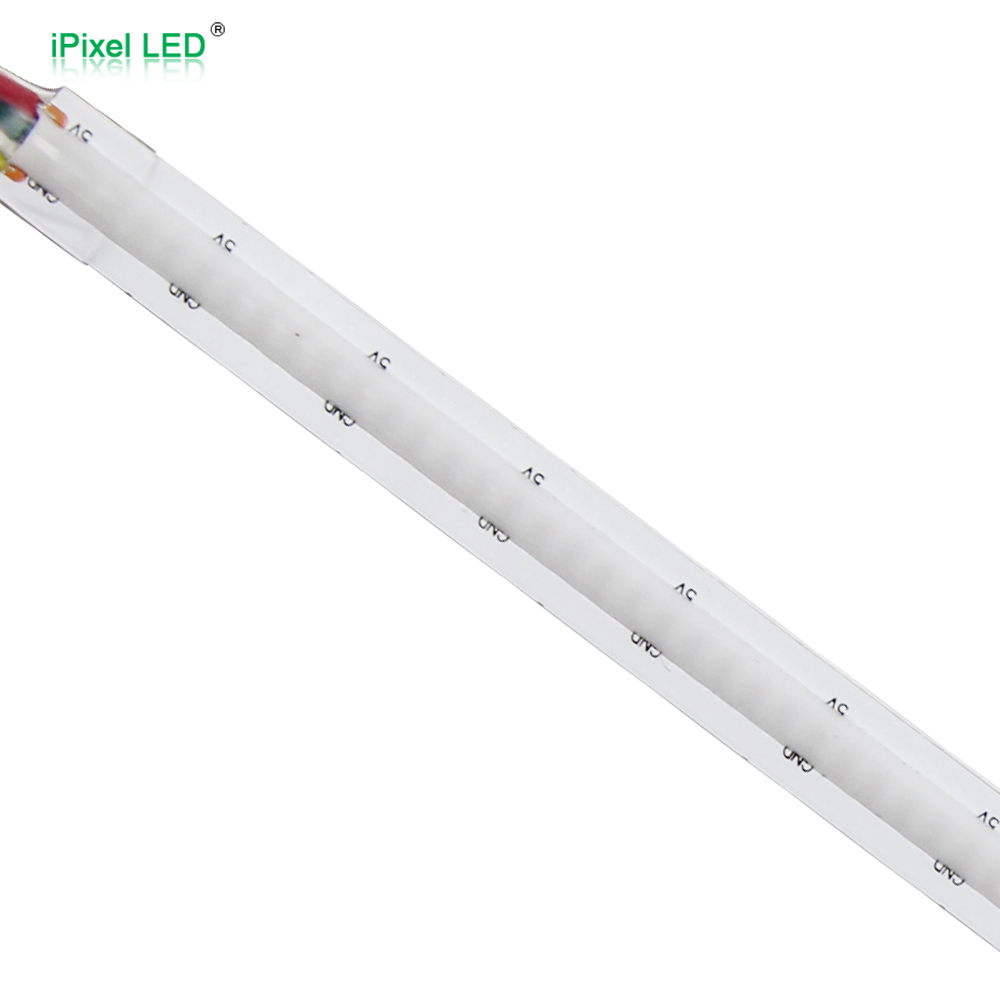

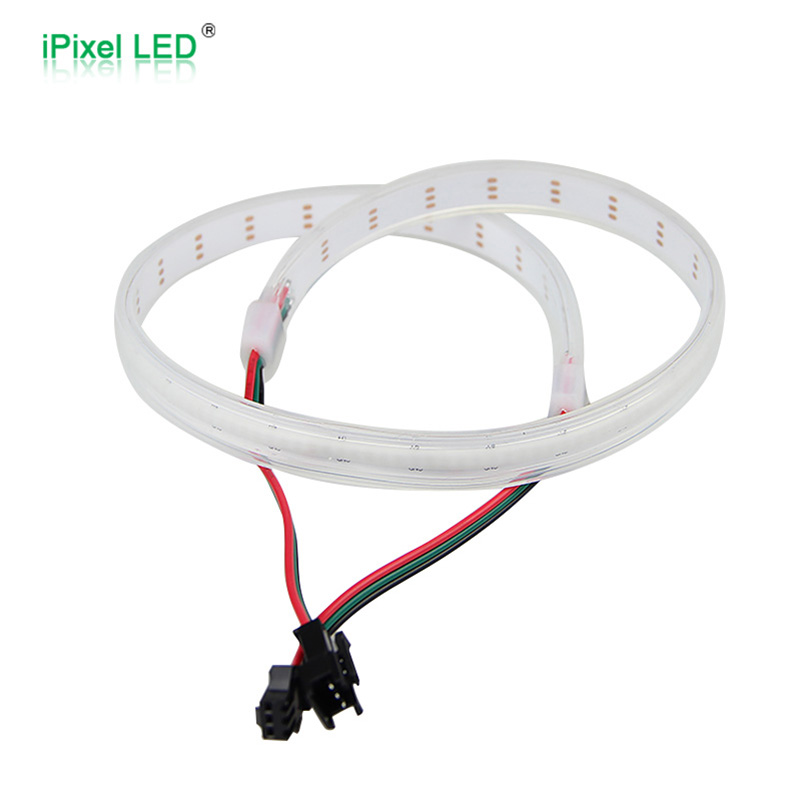

addressable RGB COB LED Strip 332LEDs/m DC5V
Description
Description
-High density, the light is even and soft
-High efficiency, remarkable energy saving effect
-Double layer PCB, balancing voltage drop, heat dissipation and flexibility.
-Chip longitudinal distribution, high reliability;
-Standard 5M/roll, length can be customized
Share to
Specification
Product Parameter
| PN | S010332ZA3SA8 |
| Voltage | DC5V |
| SMD Type | COB |
| Power | 25W/m |
| LED Quantity | 332LEDs/m |
| CCT | RGB |
| Cuttint length | 15mm |
| Dimension | 1000*10mm |
| Lumens/m | R:87 G:257 B:48Lm |
| Wavelength | R:615-630 G:520-535 B:450-460nm |
| Control | SPI-SK6812 |
| IP Rate | IP20/IP65 |
| O.T | -25℃ ~ 60℃ |
Dimension (unit:mm)
IP Rate
