S Shape 6mm 2835 static color LED strip 60LEDs/m DC12V/DC24V
Description

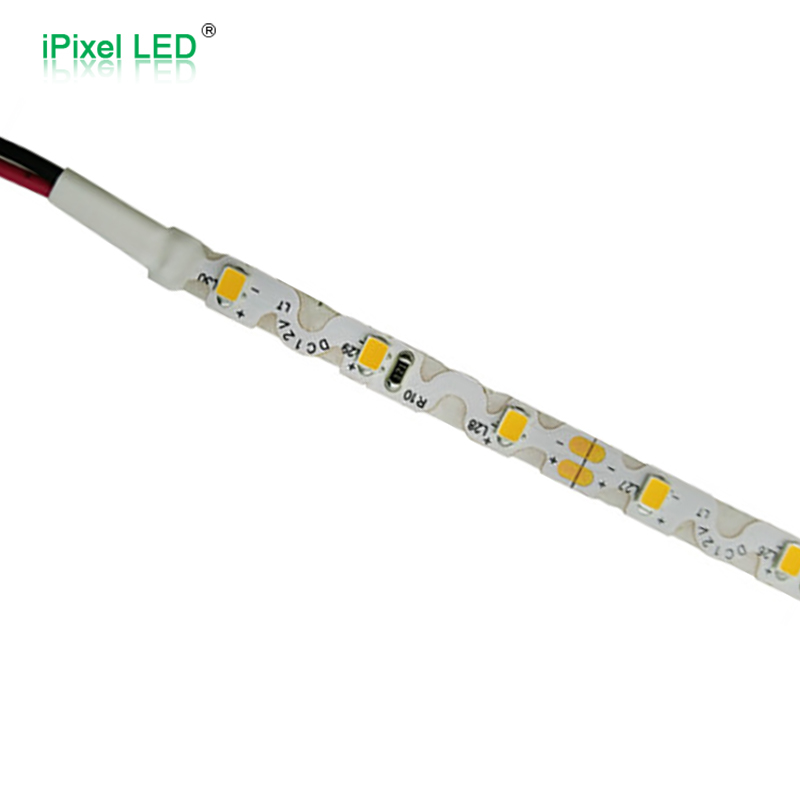

S shape(zigzag) flex led strip with SMD2835 static color 60LEDs/m
6mm PCB width
The biggest advantage is the S shape, which can be bend at any angle
Only available in IP20 non-waterproof version
6mm PCB width
The biggest advantage is the S shape, which can be bend at any angle
Only available in IP20 non-waterproof version
Standard 5m per roll, the length also can be customized
Share to
Specification
Product Parameter
| PN | S006060BB1LZ(S) | S006060BC1LZ(S) |
| Voltage | DC12V | DC24V |
| LED Type | SMD 2835 | SMD 2835 |
| LED Quantity | 60LEDs/m | 60LEDs/m |
| CCT | 3000K/4000K/6500K | 3000K/4000K/6500K |
| Lumens | 515lm/m | 515lm/m |
| Dimension | 5000*6mm | 5000*6mm |
| PCB Color | White | White |
| Power | 4.8W/m | 4.8W/m |
| CRI | ≥90RA | ≥90RA |
| O.T | -25℃ ~ 60℃ | -25℃ ~ 60℃ |

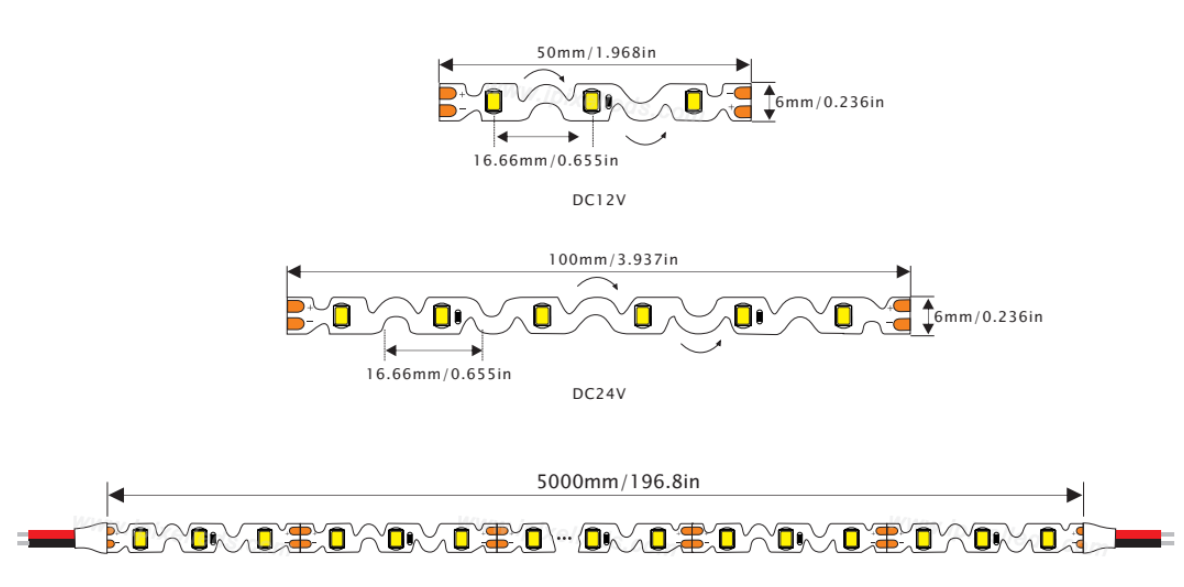

Dimension (unit:mm/in)
IP Rate
