SMD2835 10mm single color LED strip 240 LEDs/M DC12V/DC24V
Description
-Use 2835 high brightness led, high purity gold line, SANAN chip.
- 240LEDs/M, single row LED, high luminance efficiency .
- Input voltage DC12V/DC24V.
- Flexible PCB, FPC color: white.
- 1+2 OZ copper thickness FPC, 10mm PCB width.
- Standard length 5m per roll. The length also can be customized
Share to
Specification
Product Parameter
| PN | S010240BB1LZ | S010240BC1LZ |
| Voltage | DC12V | DC24V |
| LED Type | SMD 2835 | SMD 2835 |
| LED Quantity | 240LEDs/m | 240LEDs/m |
| CCT | 3000K/4000K/6500K | 3000K/4000K/6500K |
| Dimension | 5000*10mm | 5000*10mm |
| Cutting length | 12.5mm | 12.5mm |
| Lumens/m | 1900lm | 1900lm |
| PCB Color | White/Black | White/Black |
| Power | 19W/m | 19W/m |
| CRI | 90RA | 90RA |
| O.T | -25℃ ~ 60℃ | -25℃ ~ 60℃ |

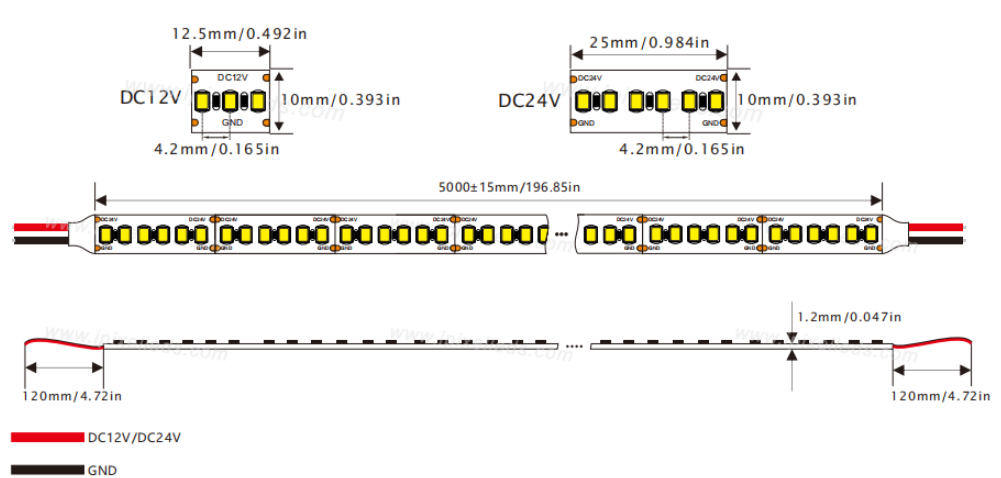

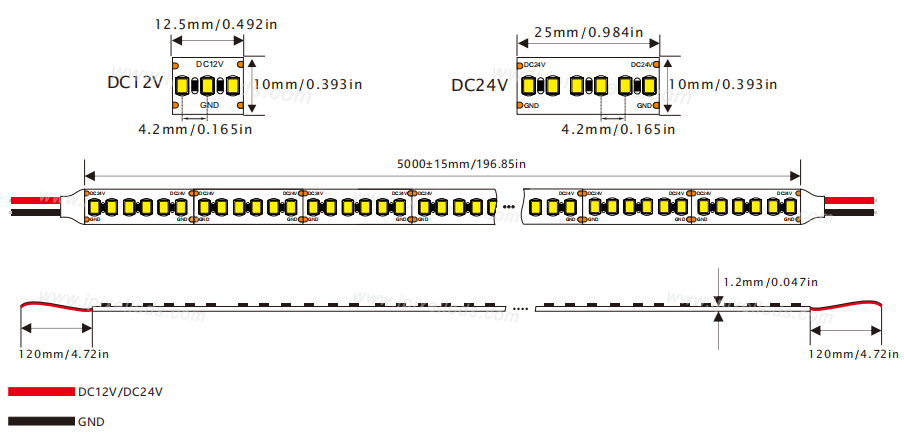

Dimension (unit:mm)

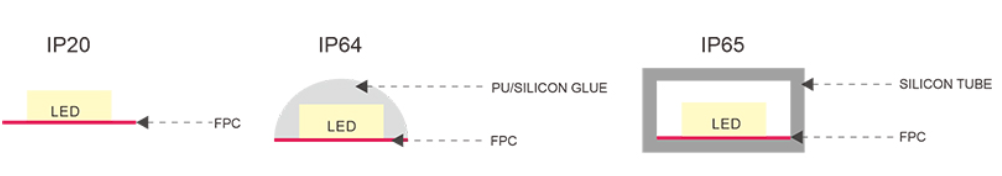

IP Rate
