Description

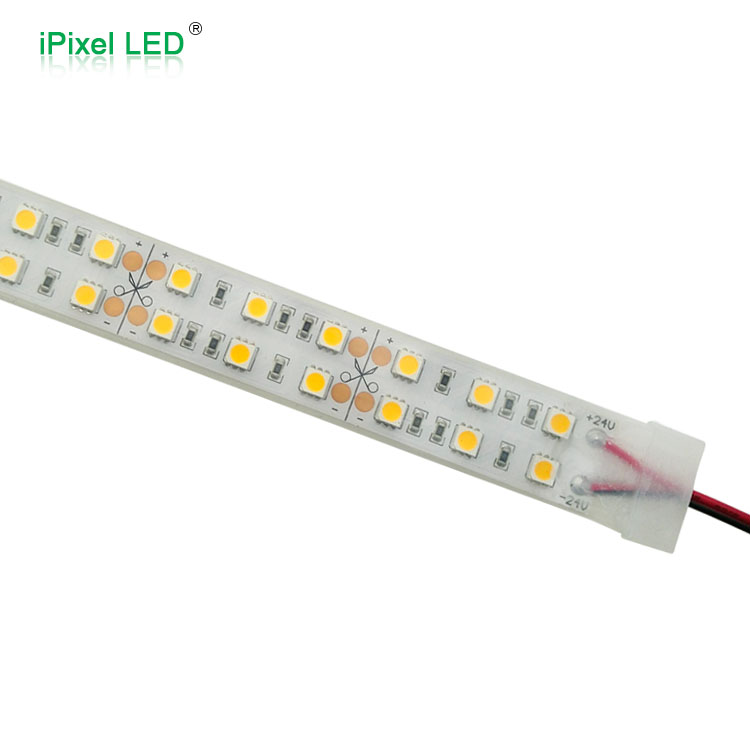

This flexible LED strip solders 120pcs SMD 5050 LEDs per meter,
double row
FPC in white color with 15mm Width, and 1+1 Ounce copper
Cut-able every 6LEDs & 50mm
All soldering Pads are very large, allowing you to easily cut and reconnect
DC24V constant voltage operation
Both ends have 2pin bare wires for powering
3M tape attached on backside of FPC

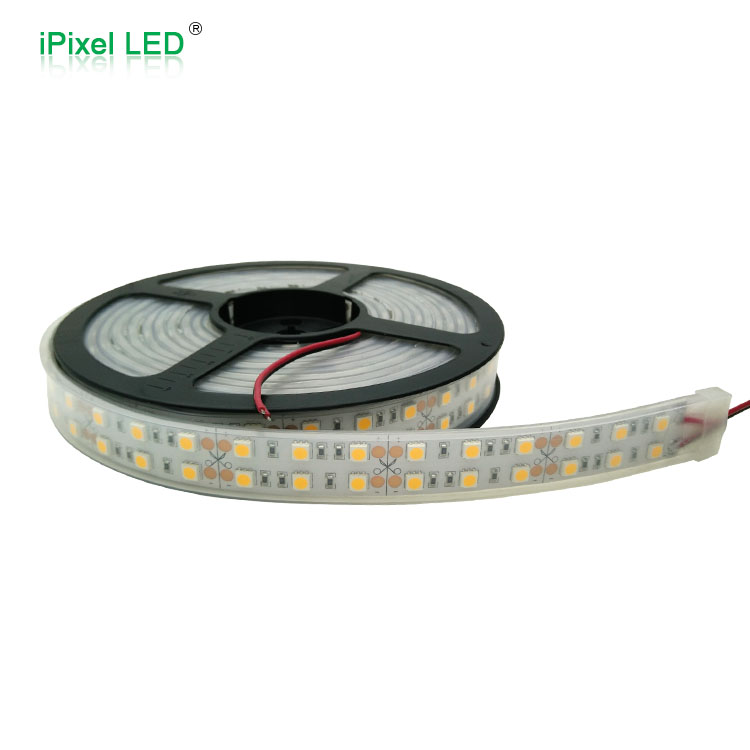

5 meters in a reel, 3 different Waterproof types IP64, IP65, IP68
A variety of colors are available
| PN | S015120CC1LZ |
| Voltage | DC24V |
| LED Type | SMD 5050 |
| LED Quantity | 120LEDs/m |
| CCT | 3000K/4000K/6500K |
| Dimension | 5000*15mm |
| Lumens/m | 2400-2600lm |
| PCB Color | White |
| Power | 28W/m |
| CRI | 85RA |
| O.T | -25℃ ~ 60℃ |
Dimension (unit:mm)
![]()
