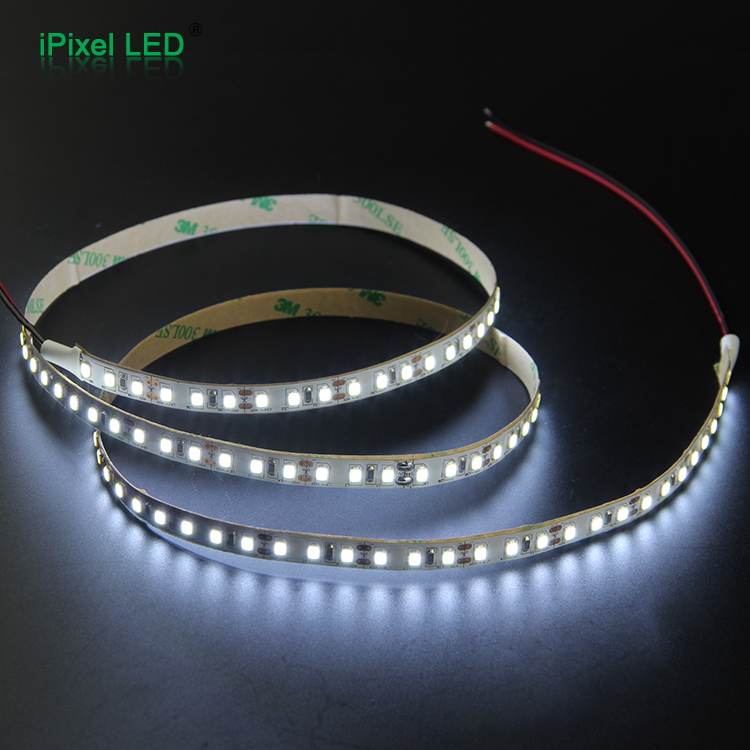

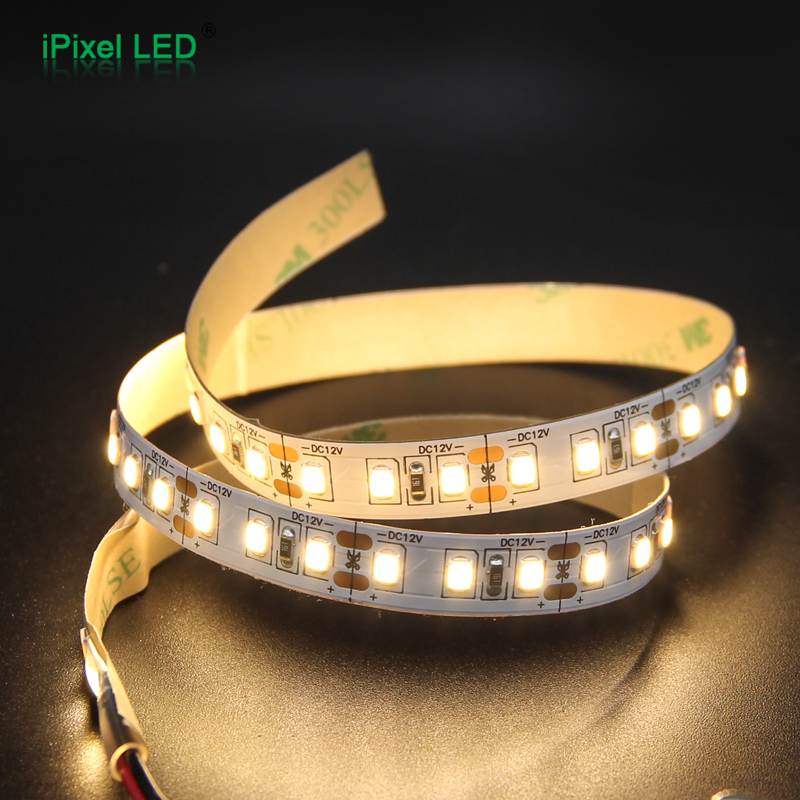

SMD2835 10mm single color LED strip 120LEDs/M DC12V/DC24V
Description

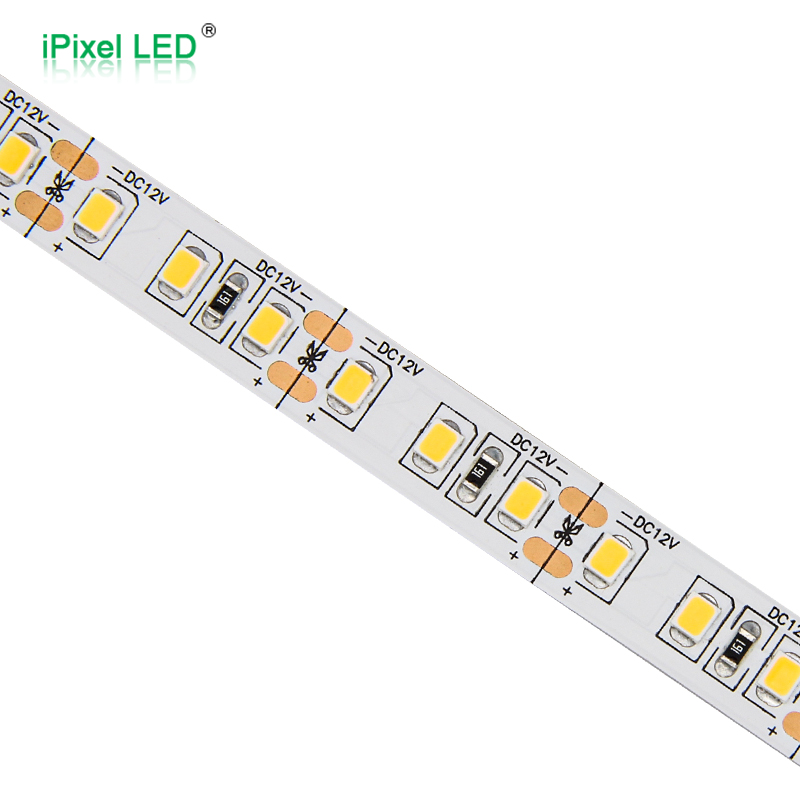

This flexible LED strip soldered 120pcs in a meter SMD 2835 LED chips
Flexible PCB in white color with 10mm Width
Cut-able each set of 3 LED in 25mm(DC12v), 6LED in 50mm(DC24V)
All the soldering Pad very large allow you easy to cut and joint again
DC12V/24V constant voltage operation
Both end attached bare wire for Powering

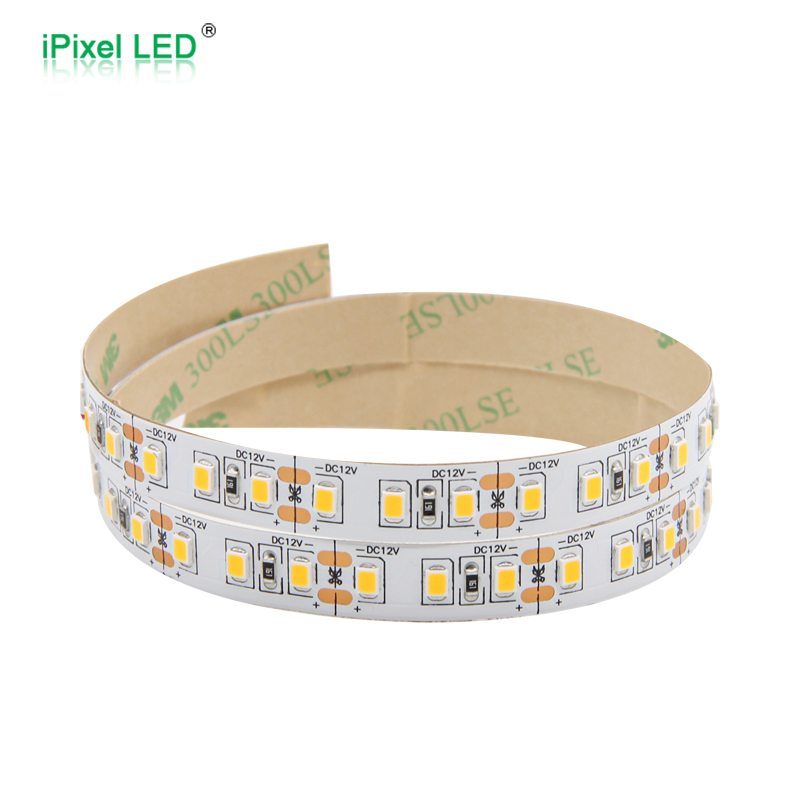

3M tape attached on backside of FPC
Flexible PCB in white color with 10mm Width
Cut-able each set of 3 LED in 25mm(DC12v), 6LED in 50mm(DC24V)
All the soldering Pad very large allow you easy to cut and joint again
DC12V/24V constant voltage operation
Both end attached bare wire for Powering
3M tape attached on backside of FPC
Standard 5m/roll, customized sizes are available
Share to
Specification
Product Parameter
| PN | S010120BB1LZ | S010120BC1LZ |
| Voltage | DC12V | DC24V |
| LED Type | SMD 2835 | SMD 2835 |
| LED Quantity | 120 LEDs/m | 120 LEDs/m |
| CCT | R/G/B/W:3000K/4000K/6500K | R/G/B/W:3000K/4000K/6500K |
| Dimension | 5000*10mm | 5000*10mm |
| Cutting length | 25mm | 50mm |
| Lumens(lm/m | 1000 | 1000 |
| PCB Color | White | White |
| Power | 10W/m | 10W/m |
| CRI | ≥80RA | ≥80RA |
| O.T | -25℃ ~ 60℃ | -25℃ ~ 60℃ |

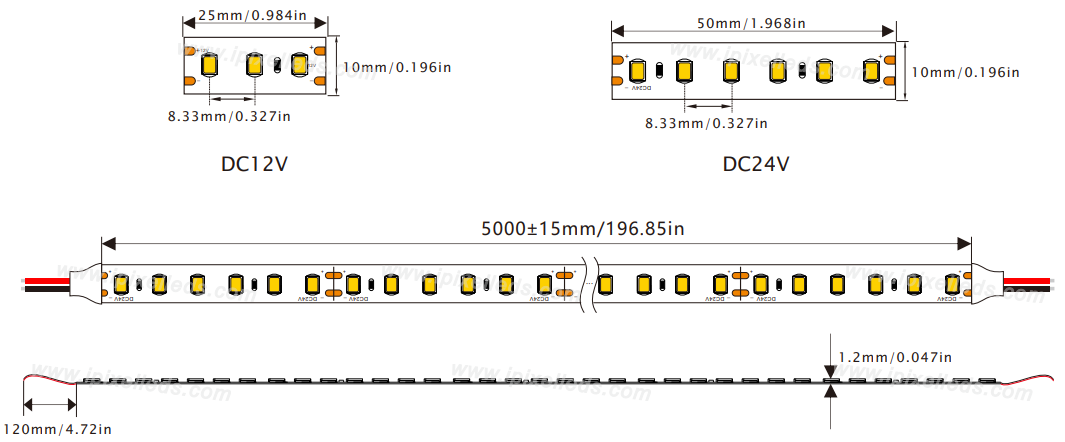

Dimension (unit:mm)
