SMD2835 8mm Single Color Led Strip 60LEDs/m DC5V/DC12V/DC24V
Description
- Use 2835 high brightness led, high purity gold line,SANAN chip.
- 60LEDs/M, high luminance efficiency.
- Input voltage DC5V/12V/24V.
- 8mm flexible PCB, FPC color: white.
- Standard length 5m per roll. The length also can be customized.
Share to
Specification
Product Parameter
| PN | S008060BA1LZ | S008060BB1LZ | S008060BC1LZ |
| Voltage | DC5V | DC12V | DC24V |
| LED Type | SMD 2835 | SMD 2835 | SMD 2835 |
| Cutting unit | 16.66mm | 50mm | 100mm |
| LED Quantity | 60LEDs/m | 60LEDs/m | 60LEDs/m |
| Color | 3000K/4000K/6500K | 3000K/4000K/6500K | 3000K/4000K/6500K |
| Lumens | 350lm | 520lm | 520lm |
| Dimension | 5000*8mm | 5000*8mm | 5000*8mm |
| Materiar | FPC | FPC | FPC |
| Power | 4.8W/m | 4.8W/m | 4.8W/m |
| IP Rate | IP20/IP64/IP65/IP67 | IP20/IP64/IP65/IP67 | IP20/IP64/IP65/IP67 |
| O.T | -25℃ ~ 60℃ | -25℃ ~ 60℃ | -25℃ ~ 60℃ |

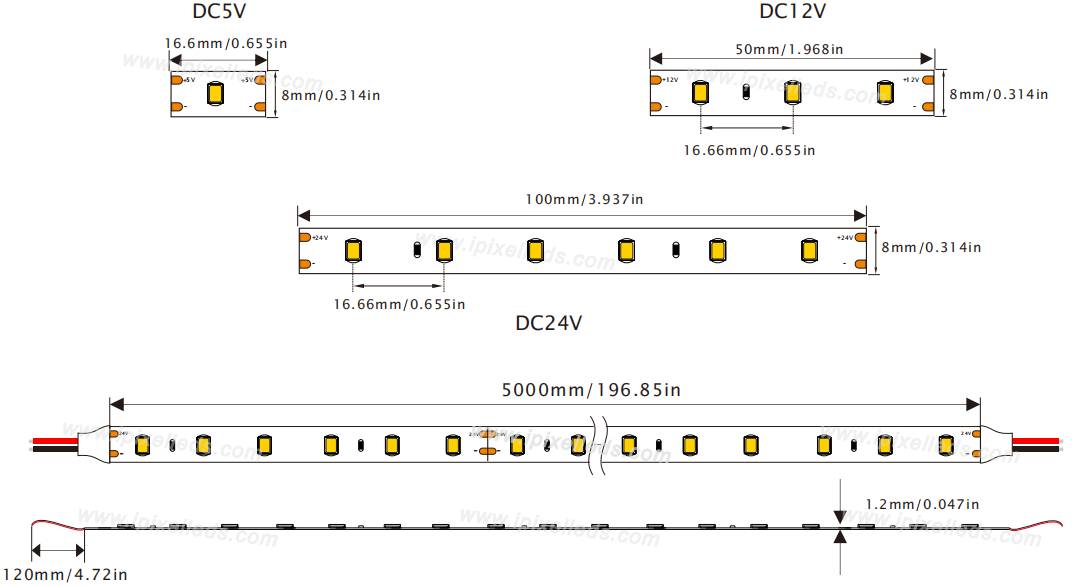

Dimension (unit:mm)
