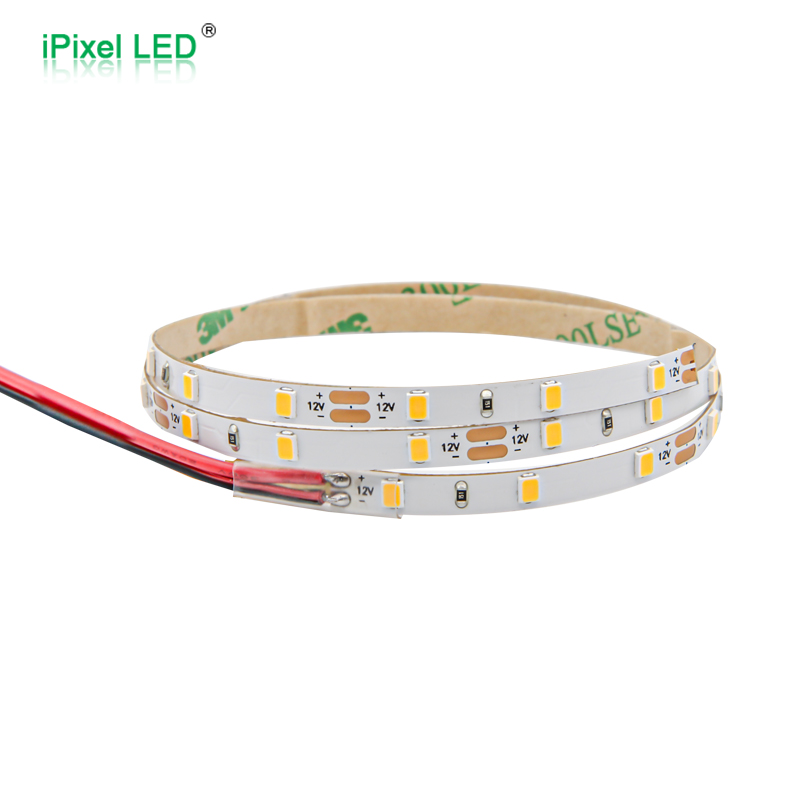

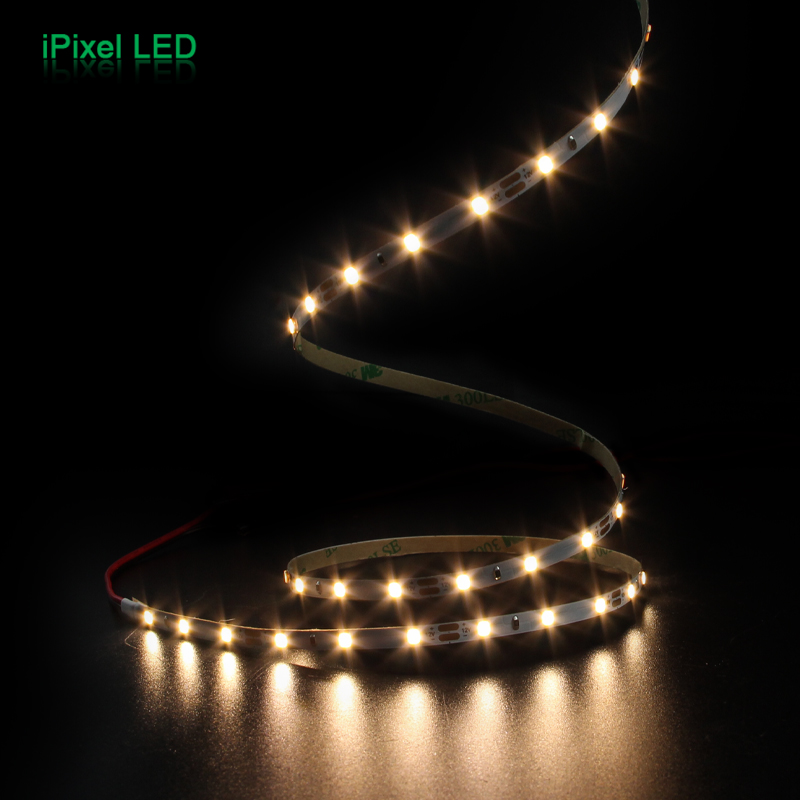

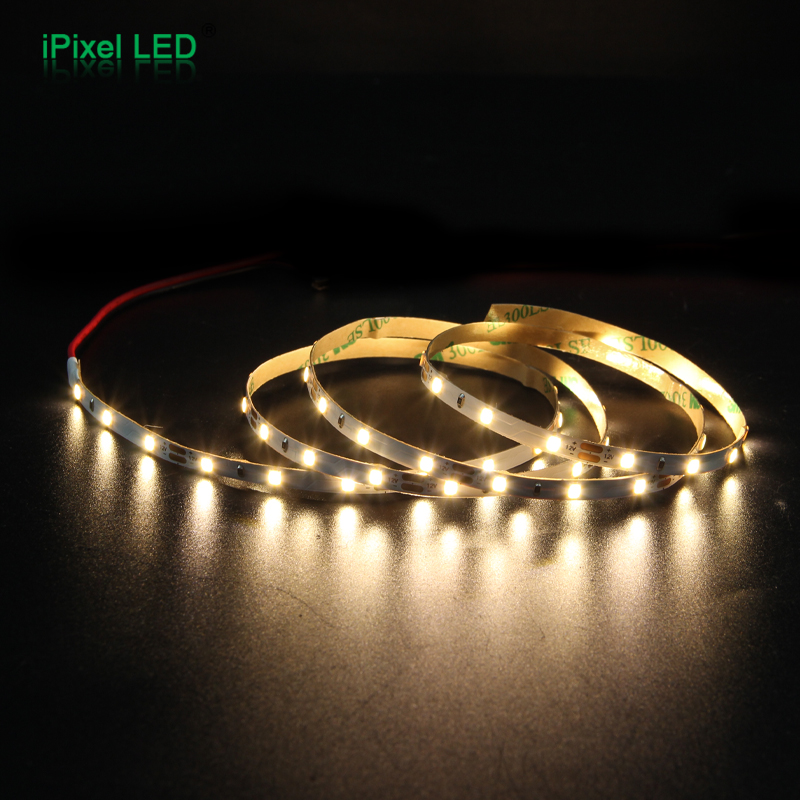

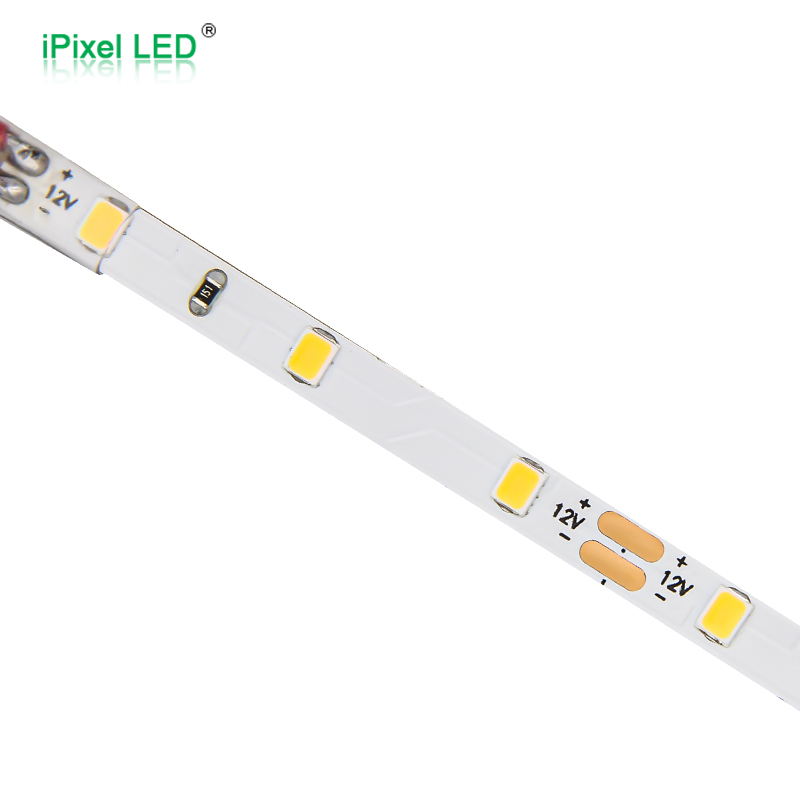

SMD2835 5mm Single Color Led Strip 60LEDs/m DC12V/DC24V
Description
- 2835 high brightness led, high purity gold line, SANAN chip
- 5mm PCB width
- 60LEDs/M, high luminance efficiency
- Flexible PCB, FPC color: white
- Standard length 5m per roll, the length also can be customized
Share to
Specification
Product Parameter
| PN | S005060BB1LZ | S005060BC1LZ |
| Voltage | DC12V | DC24V |
| LED Type | SMD 2835 | SMD 2835 |
| Cutting unit | 50mm/3LED | 100mm/6LED |
| LED Quantity | 60LEDs/m | 60LEDs/m |
| Color | 3000K/4000K/6500K | 3000K/4000K/6500K |
| Lumen | 520lm | 520lm |
| Dimension | 5000*5mm | 5000*5mm |
| Materiar | FPC | FPC |
| Power | 4.8W/m | 4.8W/m |
| IP Rate | IP20 | IP20 |
| O.T | -25℃ ~ 60℃ | -25℃ ~ 60℃ |

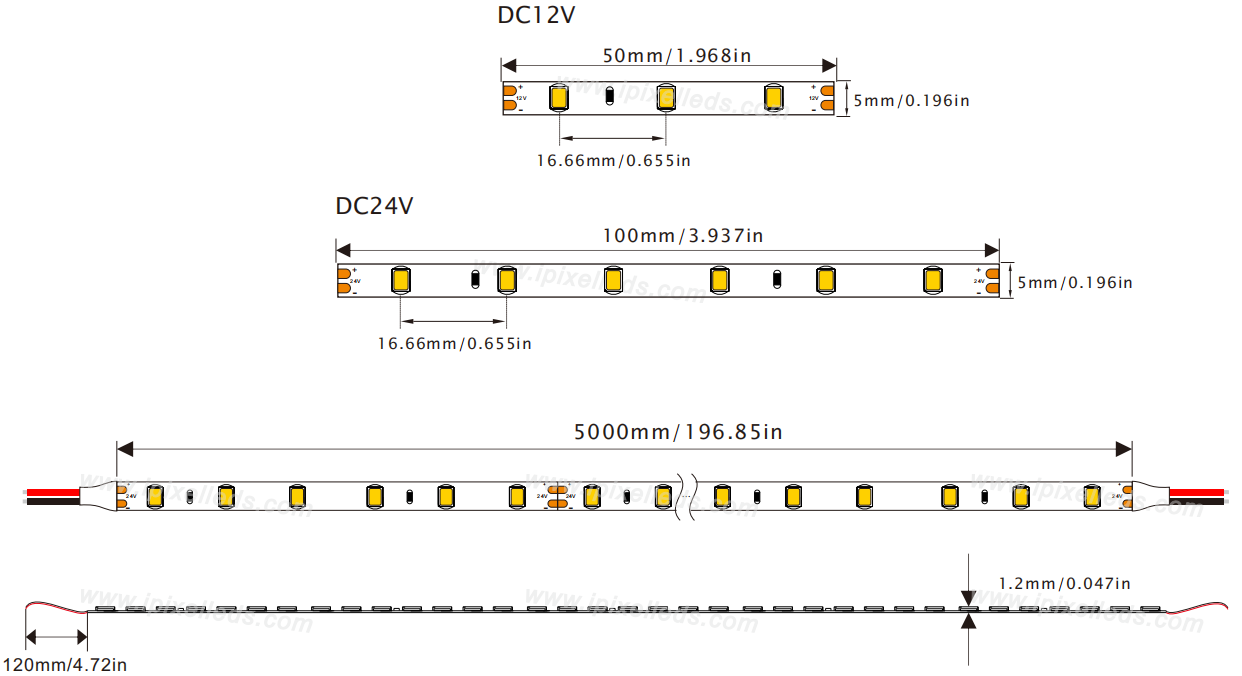

Dimension (unit:mm)
