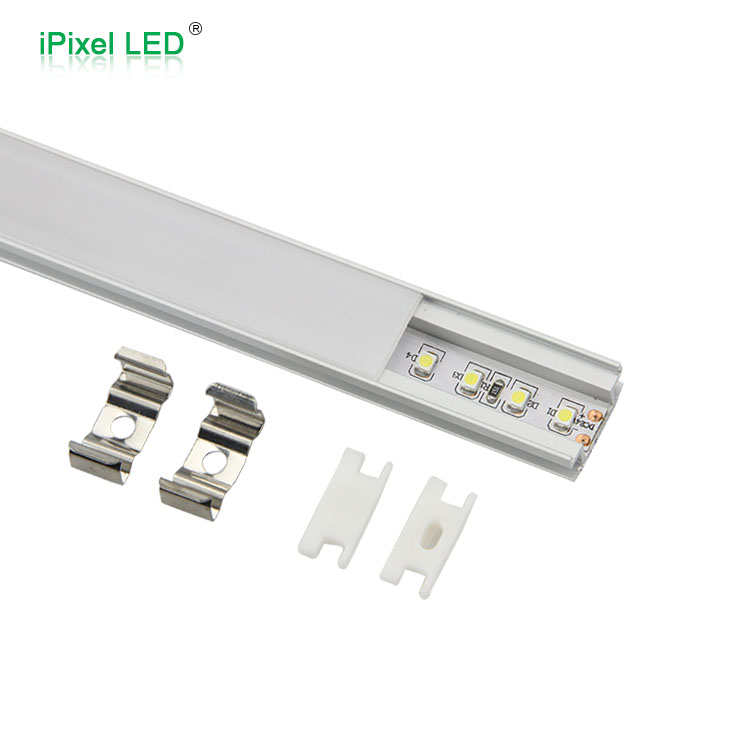

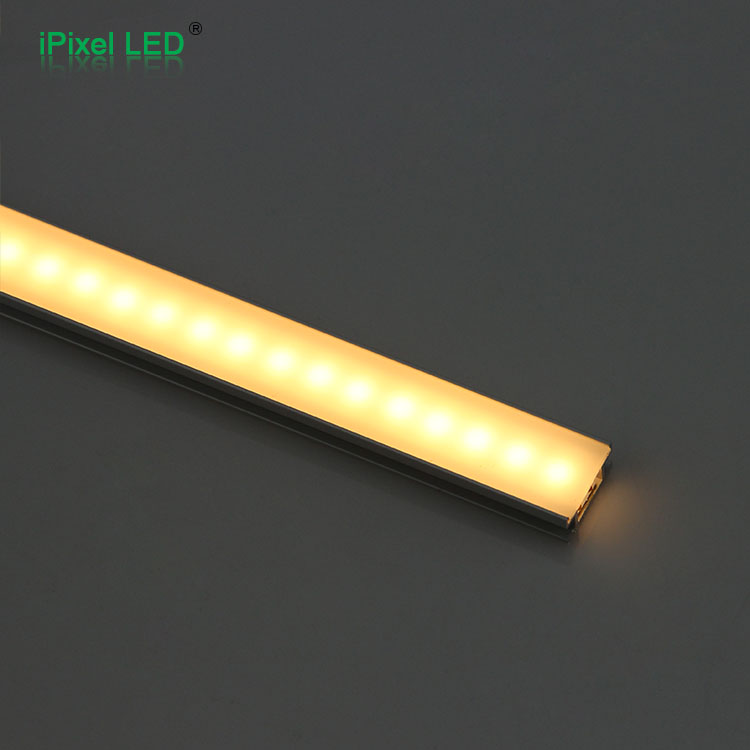

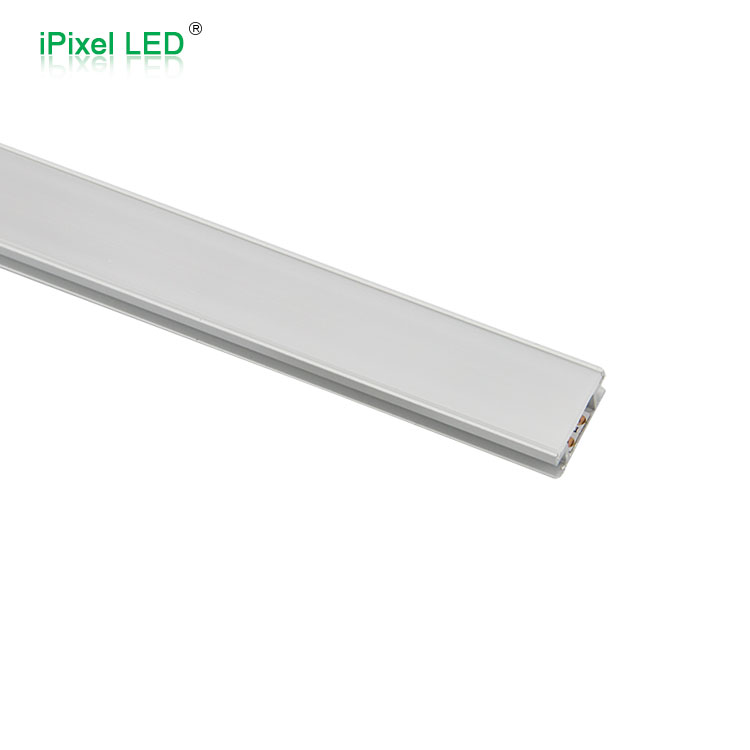

DE1003 Aluminum LED Profile
Description
Material: AL6063-T5
Surface: Anodized
PC Cover: Diffuser/Transparent
LED Strip width: 10mm(Max)
Recommend LED Strip type: 120leds/m(3014)

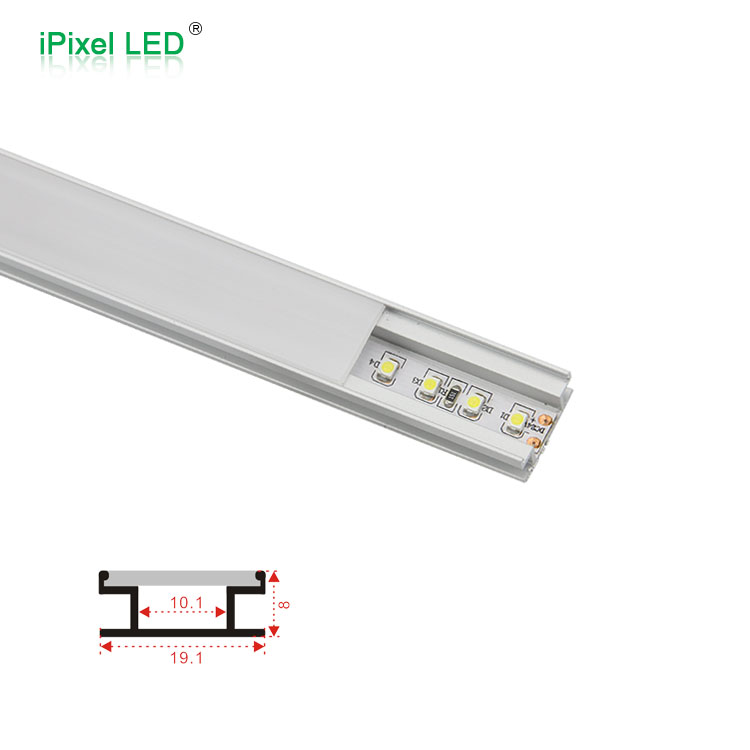

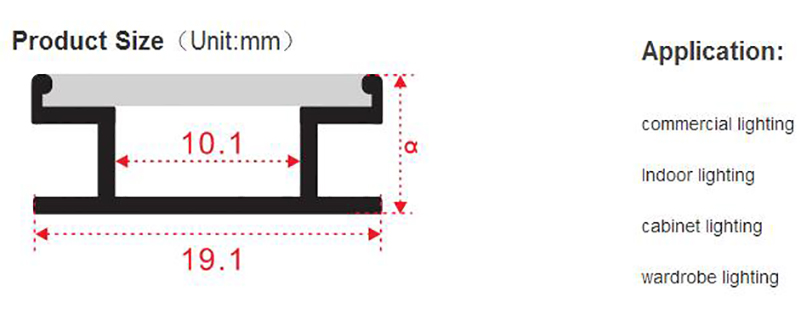

Bar Size: W 19.1xH 8mm
Bar Length: 100-3000mm
Share to
Specification
Product Description
1. This aluminum extrusion designed for flexible led strips& led rigid bar.
2. Aluminum led profile can dissipate heat much better.
4. High quality aluminum profile makes flex strip more elegant. NO FADING AND RUSTING.
5. PMMA cover: Transparent & diffused & Milky Cover for solution.
6. Recessed mounted & Surface mounted & Hoisting installation.
7. Can make any color anodized or power coated according to RAL color chart
8. This aluminum profile is more thinner, suitable for use with a relatively light lamp beadsand ,We recommend 3014 lights with the use,easy to install.

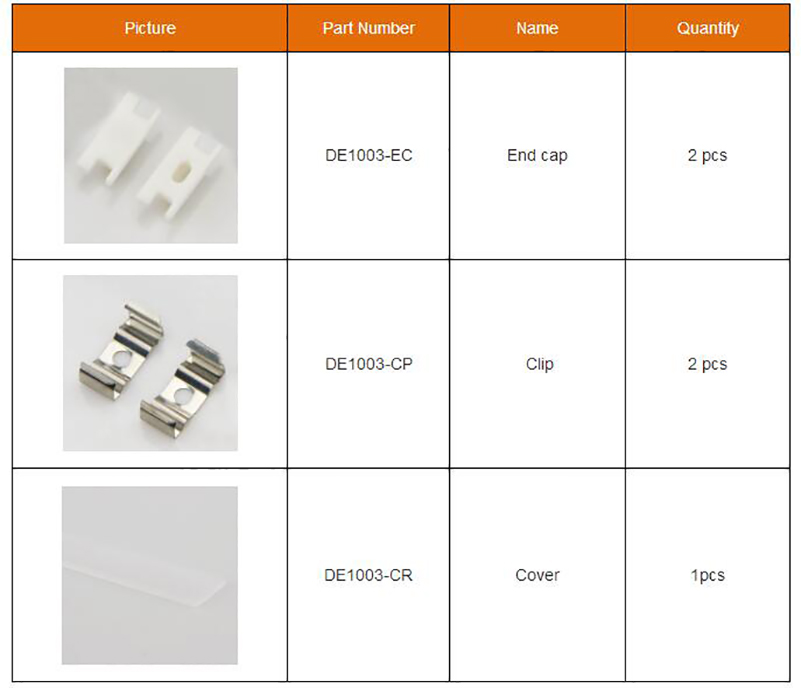

Accessories：
