3W RGB LED Module
Description
1.DIY electronic production.
2.Advertising ,Display.
3.Dance floor decoration.
4.DJ background,DJ Table ,Stage floor etc.
Share to
Specification
Product Parameter
| PN | M022001MA3PZ |
| Voltage | R: 2.2-2.6V G: 3.2-3.8V B: 3.2-3.8V |
| LED Type | Imitation lumen lamp beads |
| Beam Angle | 140° |
| Size（mm） | φ22.5 |
| PCB color | Black |
| Emitting Color | RGB |
| Power | 3 W/PCS |
| IP | IP 20 |
| Lumen Per Module | R: 64 lm G: 68 lm B: 10lm |
| O.T | -40℃ ~ 50℃ |
Description

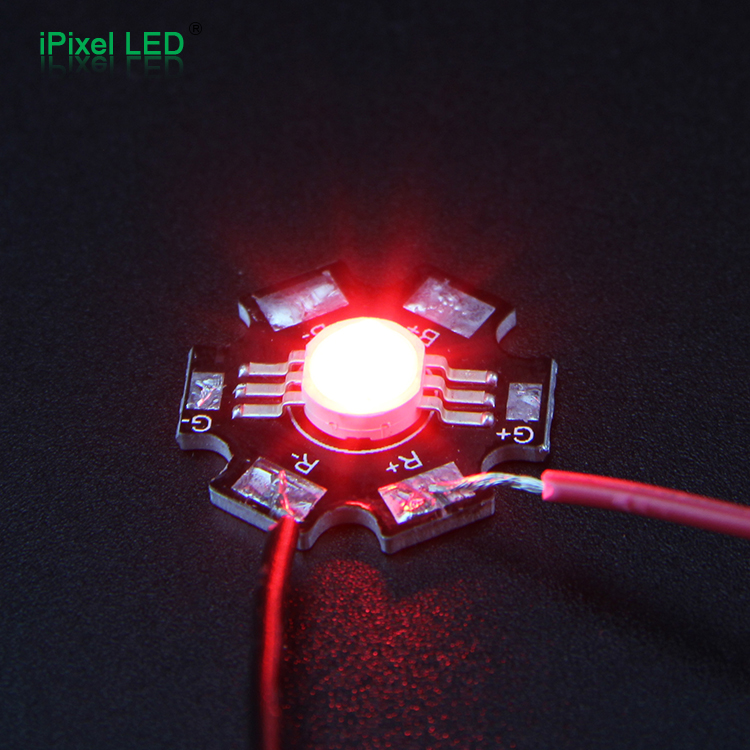

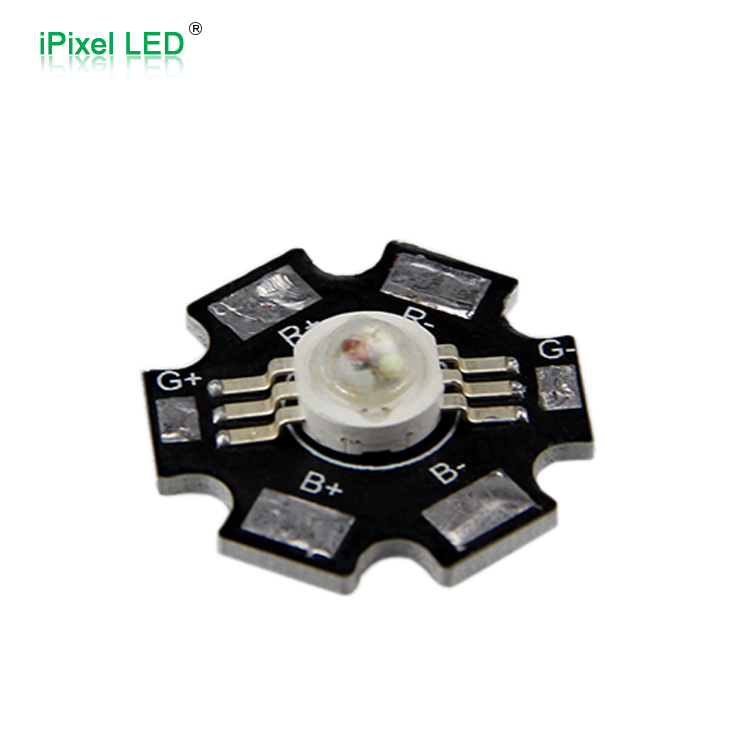

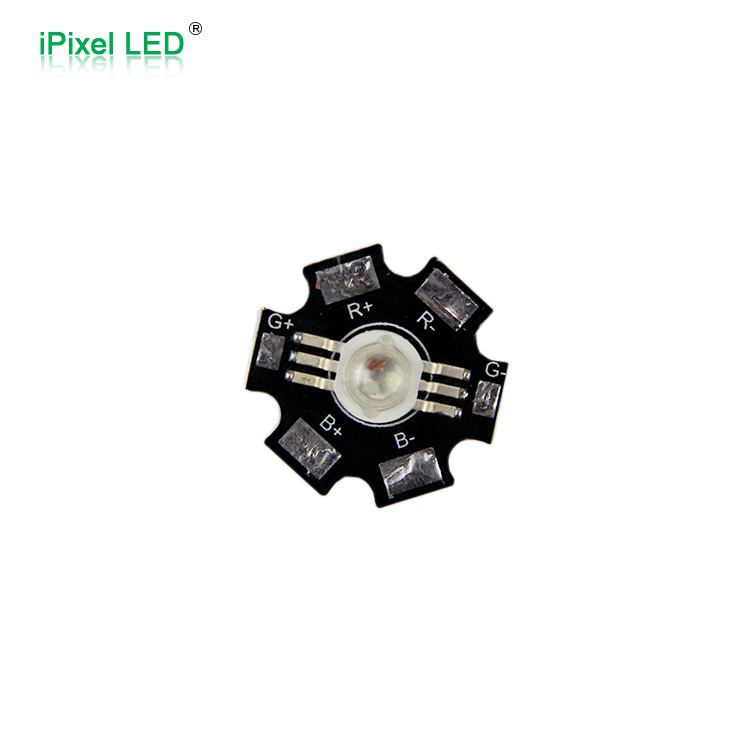

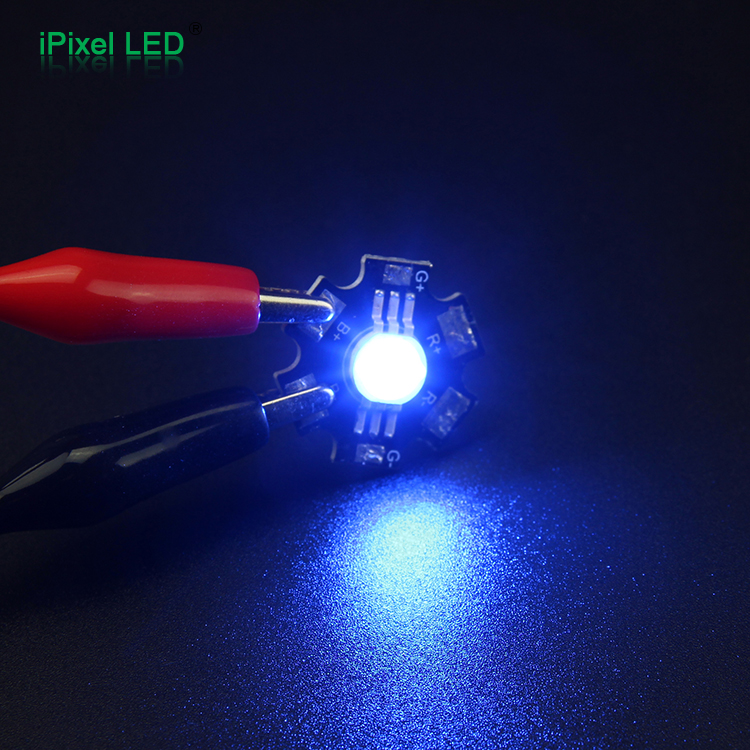

This is a super bright RGB LED mounted on a Aluminum board backside without a 3M stick ,suggested to
install on any plate? for heat disspation the Red,Green,Blue colors runing different working
Voltage from 2.2-3.8V (refer to datasheet) there is a positive and negative pad for each color
where could soldering cable . it's packed by An-ti static bag every 5 pcs

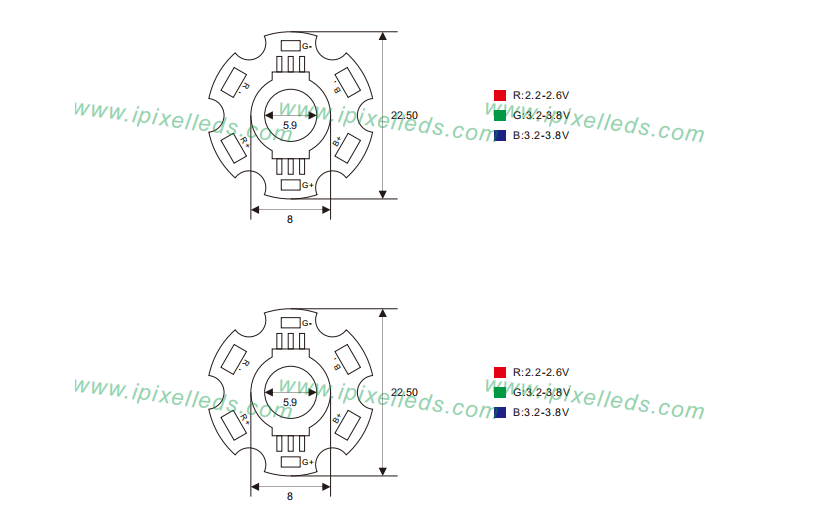

Dimension (unit:mm)
