1W High Power LED Module
Description
1.DIY electronic production.
2.Advertising ,Display.
3.Dance floor decoration.
4.DJ background,DJ Table ,Stage floor etc.
Share to
Specification
Product Parameter
| PN | M020001MA1LZ |
| Beam Angle | 140° |
| LED Type | Imitation lumen lamp beads |
| Operating Voltage | R: 2-2.8V G: 3.2-3.8V B: 3.2-3.8V Y: 2-2.8V W: 3.2-3.8V WW:3.2-3.8V |
| Luminance/pcs | R:75-105lm G:75-105lm B: 30-60lm Y:75-105lm W:160-240lm WW:160-200lm |
| Color temperature(K) | R:620-630 G:520-530 B:460-470 Y:585-595 W: 6000-7000 WW:3000-3300 |
| CRI | 85 RA |
| Power | 1 W/PCS |
| IP | IP 20 |
| Size (mm) | φ20 |
| O.T | -40℃ ~ 50℃ |
Description

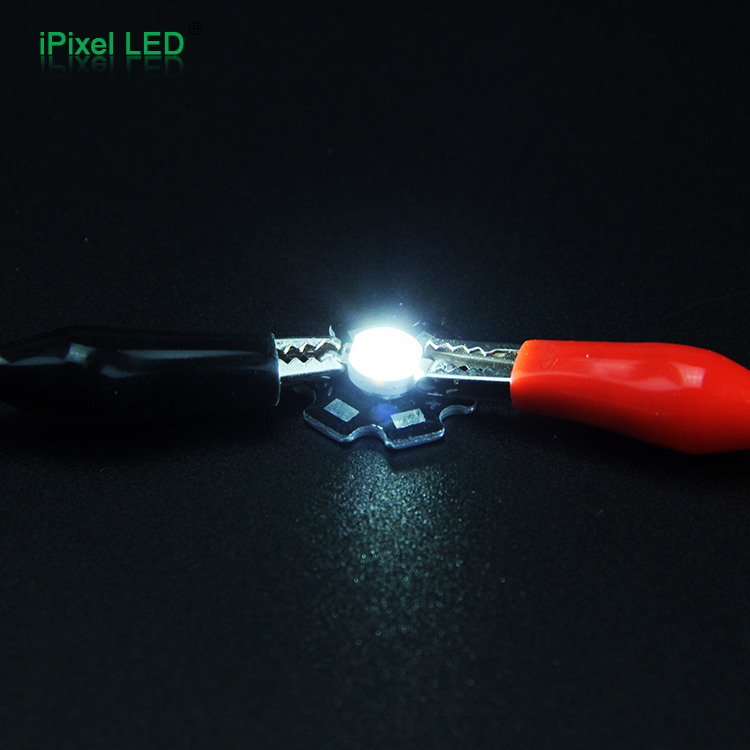

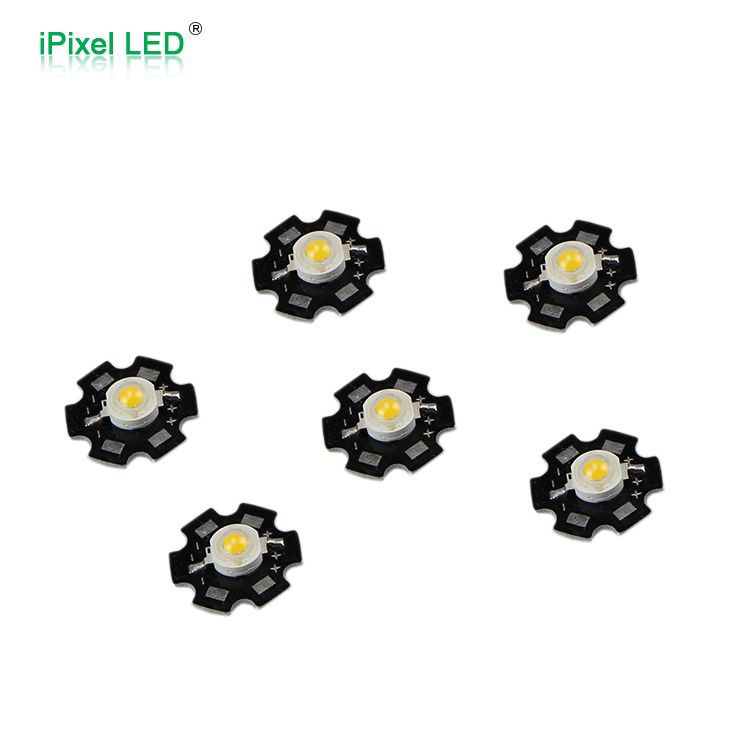

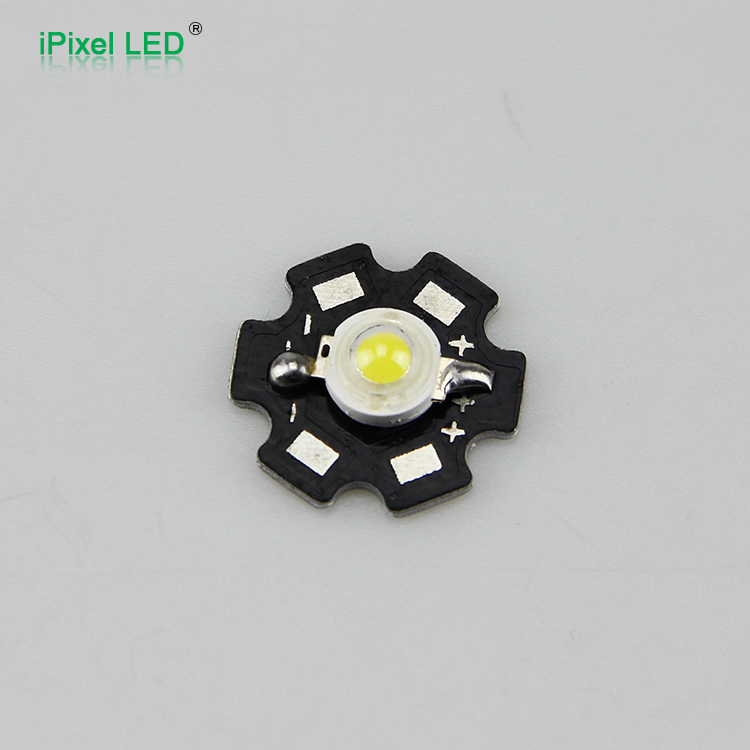

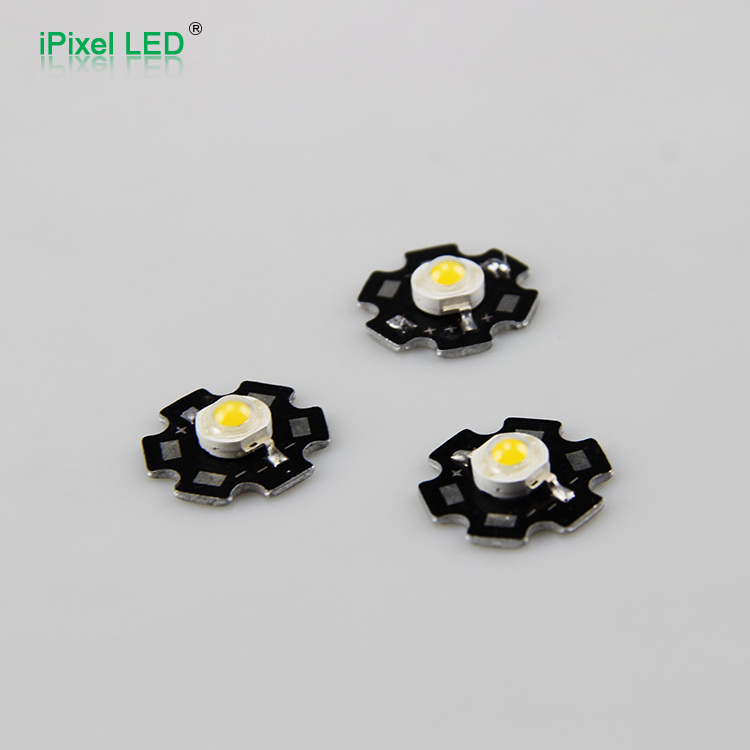

This is a super bright LED mounted on a Aluminum board backside without a 3M stick ,suggested to install
on any plate for heat disspation it has 5 different colors which also runing different working
Voltage from 2.0-3.8V (refer to datasheet) there are 2 of each positive and negative pad for soldering cable .
it's packed by An-ti static bag every 5 pcs

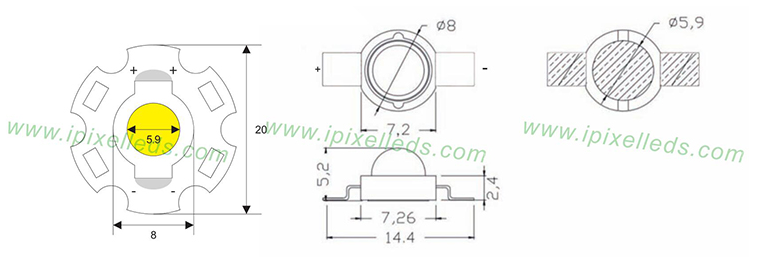

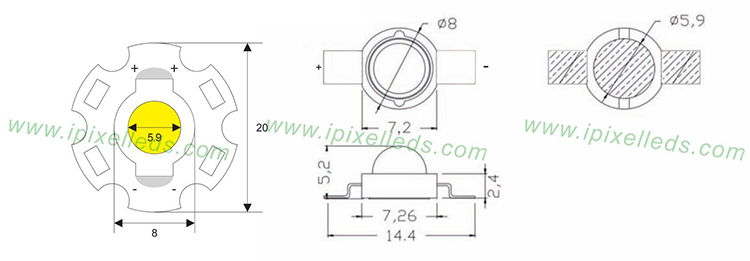

Dimension (unit:mm)
