P032 RGBW Digital LED Module

Description

1. Night Club
2. KTV singing club
3. Dance floor
4. TV Show Back ground
5. Stage,Disco Club
6. Outdoor building,fridge

Share to

Specification

Product Parameter

PN	P032001MA4SD6
Voltage	DC5V
LED Type	Imitation Lumen
Lumens/pcs	R: 51lm G: 76lm B: 20lm W:102lm
Beam Angle	140°
Size(mm)	35*25mm
Control	SPI / SM16714
Power	4W/PCS
PCB color	Black
O.T	-30℃ ~ 45℃

Description

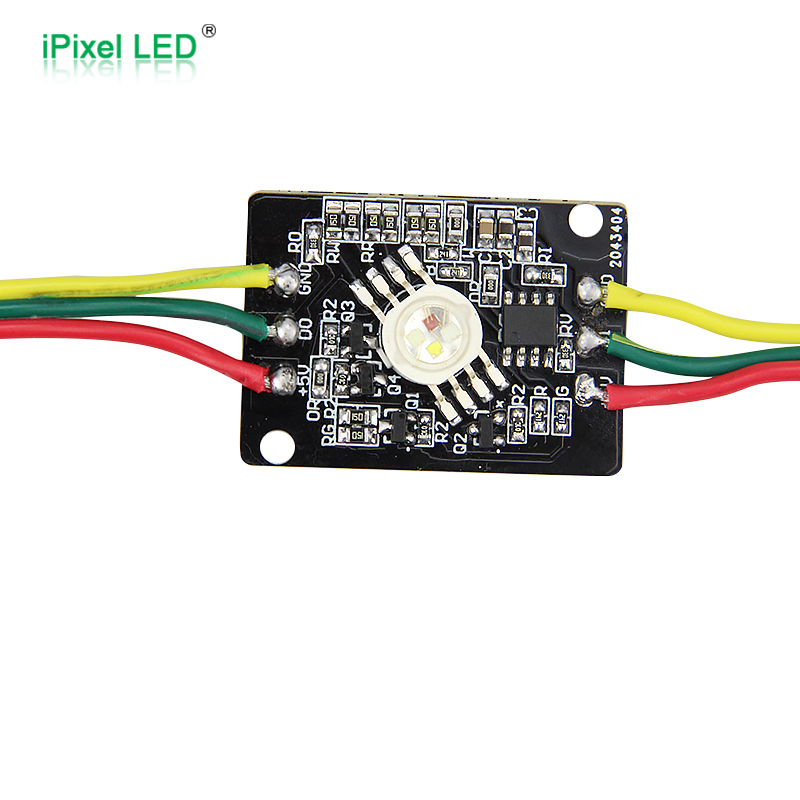

This is a super bright RGB LED mounted on a
Aluminum board backside without a 3M stick
suggested to install on any plate for heat disspation,
2 pcs M3 mounting hole on each conner
SM16714 IC control ,it's working with any SPI
controller or a DMX decoder
constant voltage working, there are 3 pads on each
side of board do not confuse the Data in and Data out

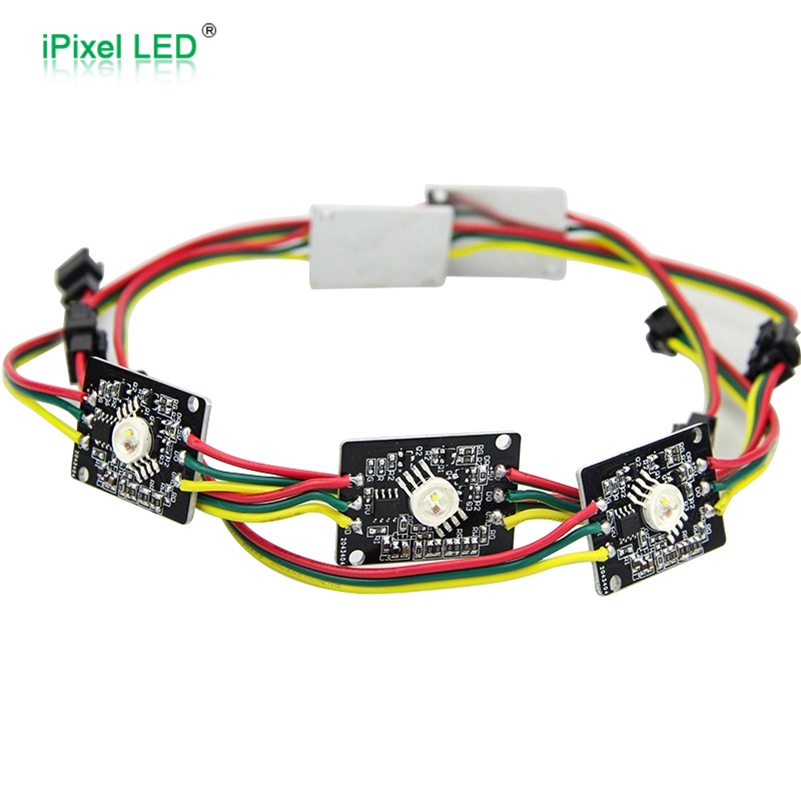

each module contains a pair of JST connector and
packed by An-ti static bag

Dimension (unit:mm)
