Specification

Product Parameter

PN	P032001MA3SF
Voltage	DC5V
LED Type	Imitation lumen lamp beads RGB
Lumens/pcs	R: 10lm G: 33lm B: 5lm
Beam Angle	140°
Size(mm)	35*25
IP	IP 20
Power	3W/PCS
PCB color	Black
O.T	-30℃ ~ 45℃

Description

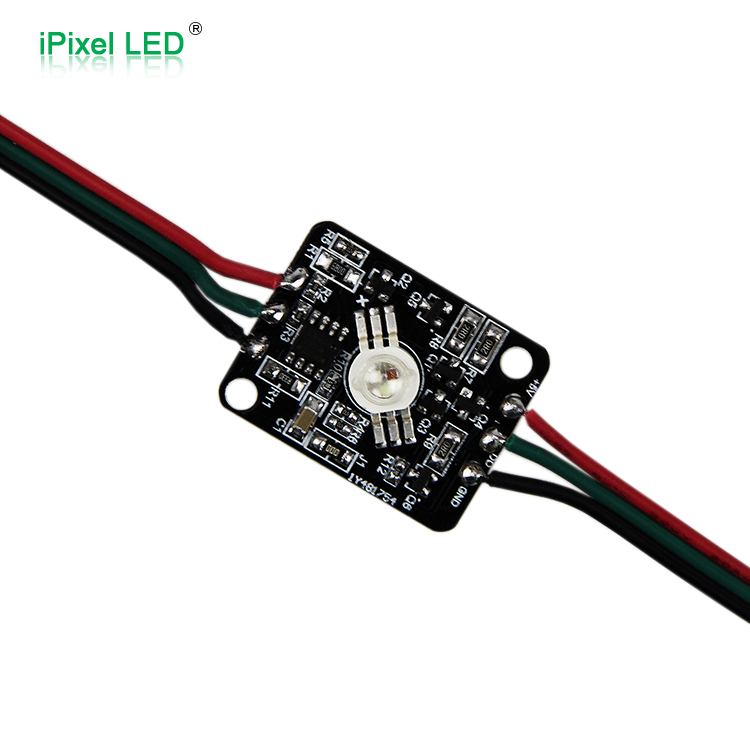

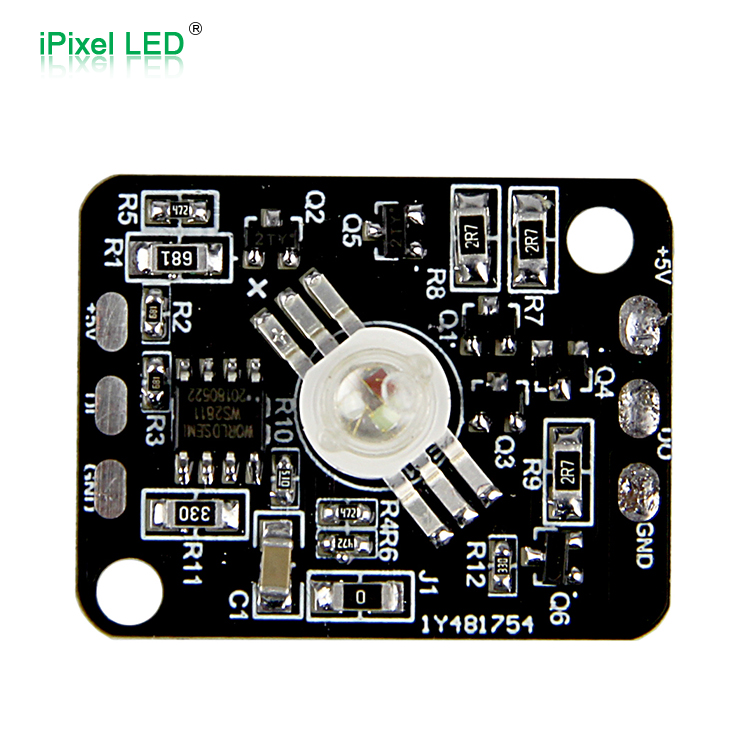

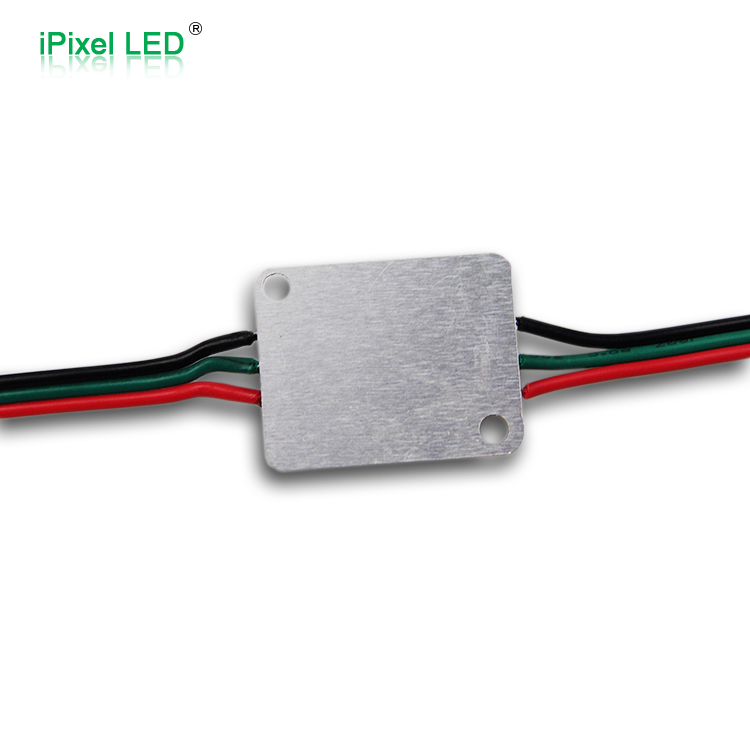

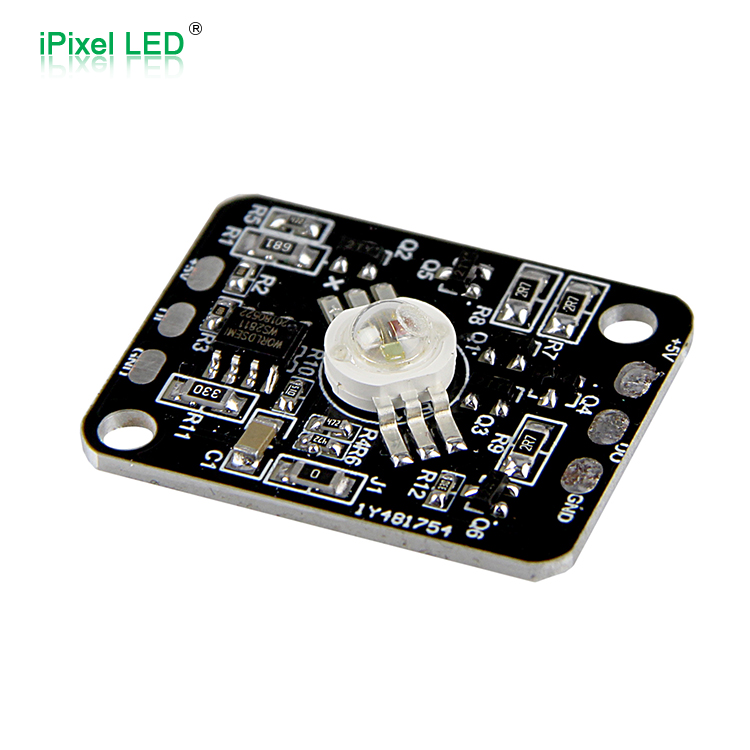

This is a super bright RGB LED mounted on a Aluminum board backside without a 3M stick ,suggested to

install on any plate for heat disspation,2 pcs M3 mounting hole on each conner WS2811 control ,

it's working with any SPI controller or a DMX decoder constant voltage working, there are 3 pads on each
side of board do not confuse the Data in and Data out each module contains a pair of JST connector and
packed by An-ti static bag

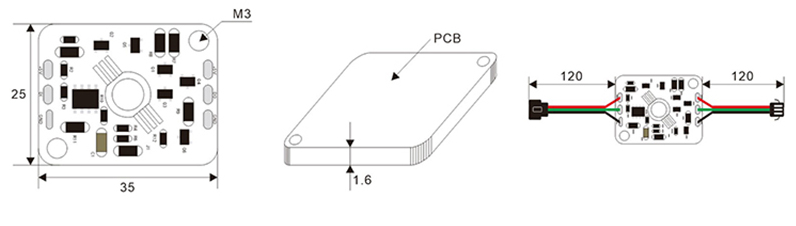

Dimension (unit:mm)
