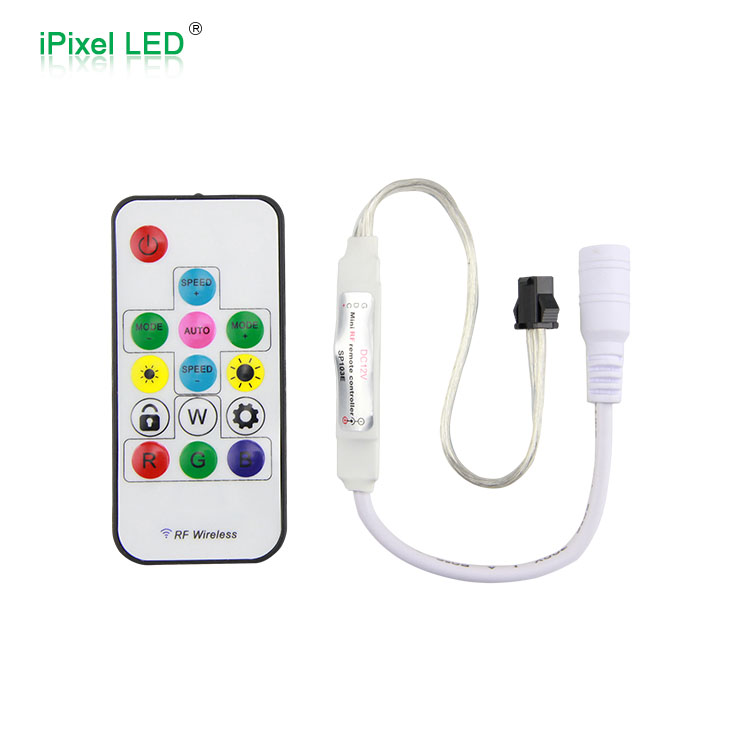

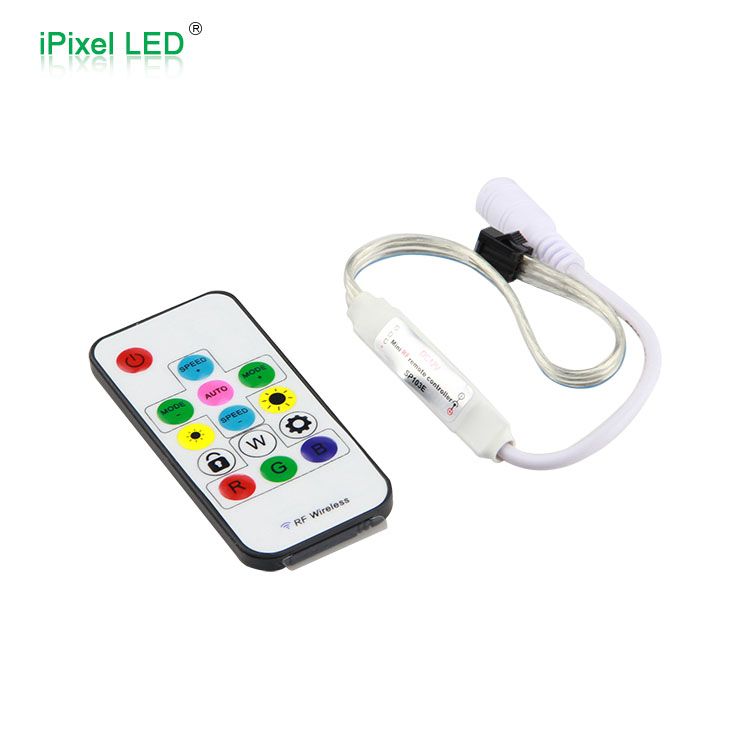

SP103E Mini-RF controller
Description
1. DMX LED products.
2. LED pixel light,led pixel module.
3. LED strip,led light bar.
4.Outdoor Lighting Engineering.
Share to

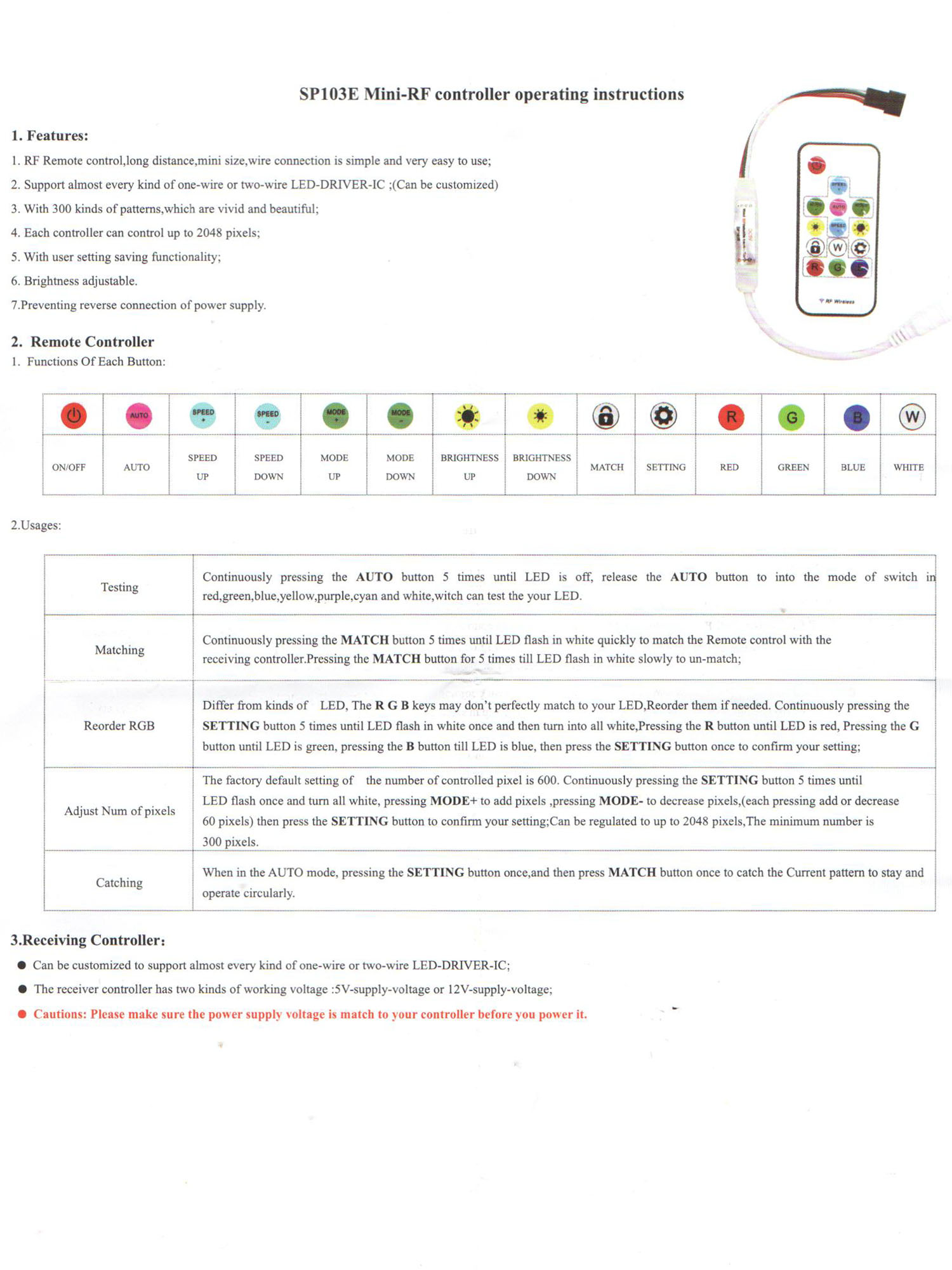

Specification
Features:
1. RF Remote control,long distance,mini size,wire connection is simple and very easy to use;
2. Support almost every kind of one-wire or two-wire LED-DRIVER-IC ;(Can be customized)
3. With 300 kinds of patterns,which are vivid and beautiful;
4. Each controller can control up to 2048 pixels;
5. With user setting saving functionality;
6. Brightness adjustable.
7.Preventing reverse connection of power supply.
Remote Controller

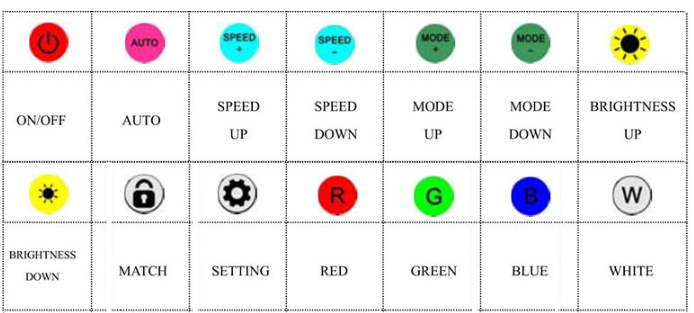

1. Functions Of Each Button:
Usages:
| Testing | Continuously pressing the AUTO button 5 times until LED is off, release the AUTO button to into the mode of switch in red,green,blue,yellow,purple,cyan and white,witch can test the your LED. |
| Matching | Continuously pressing the MATCH button 5 times until LED flash in white quickly to match the Remote control with the receiving controller.Pressing the MATCH button for 5 times till LED flash in white slowly to un-match; |
| Reorder RGB | Differ from kinds of LED, The R G B keys may don’t perfectly match to your LED,Reorder them if needed. Continuously pressing the SETTING button 5 times until LED flash in white once and then turn into all white,Pressing the R button until LED is red, Pressing the G button until LED is green, pressing the B button till LED is blue, then press the SETTING button once to confirm your setting; |
| Adjust Num of pixels | The factory default setting of the number of controlled pixel is 600. Continuously pressing the SETTING button 5 times until LED flash once and turn all white, pressing MODE+ to add pixels ,pressing MODE- to decrease pixels,(each pressing add or decrease 60 pixels) then press the SETTING button to confirm your setting;Can be regulated to up to 2048 pixels,The minimum number is 300 pixels. |
| Catching | When in theAUTO mode, pressing the SETTING button once,and then press MATCH button once to catch the Current pattern to stay and operate circularly. |
Receiving Controller：
● Can be customized to support almost every kind of one-wire or two-wire LED-DRIVER-IC;
● The receiver controller has two kinds of working voltage :5V-supply-voltage or 12V-supply-voltage;
● Cautions: Please make sure the power supply voltage is match to your controller before you power it.
