Specification

Abstract:

H803TV is an online master controller that transmits data via DVI/HDMI interface and has the features of high speed transmission and large control ability. H803TV can be connected to different computers with different operating systems, and can also be connected to devices with DVI/HDMI interface. It supports dual-monitor mode, multi-monitor extension mode and duplication mode. Using duplication mode when H803TV is connected to computer.

Auxiliary slave controller is H801RA, H801RC and H802RA.
Auxiliary software is “LED studio software” or “Madrix”.

Supported Driver Chips:

LPD6803, LPD8806, LPD1882, LPD1889, LPD6812, LPD1883,LPD1886, DMX512, HDMX, APA102, MY9221, DZ2809, SM16716,SM16711, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912,WS2801, WS2803, WS2811, INK1003, TM1812, TM1809, TM1804,TM1803, TM1913, TM1914, TM1926, TM1829, TM190, TM1814,BS0901,BS0815, LY6620, BS0825, LD1510, LD1512,LD1530, LD1532, TLS3001, TLS3002, DM412, DM413, DM114,DM115, DM13C, DM134, DM135, DM136, MBI6023, MBI6024,MBI5001, MBI5168, TB62726, TB62706,A8012, etc.

Specifications:

Input Voltage	DC9V
Power Consumption	5W
Control pixels number	400000 pixels
Weight	0.8Kg
Working Temperature	-20C°--75C°
Dimension	L183 x W139 x H40
Carton Dimension	L205 x W168 x H69

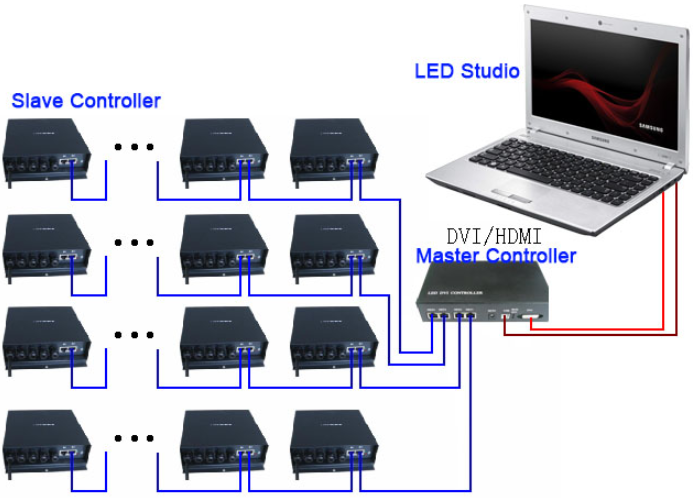

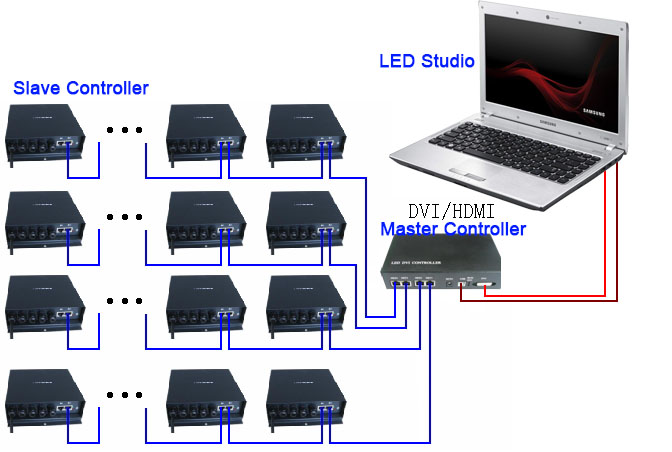

Connection Diagram:

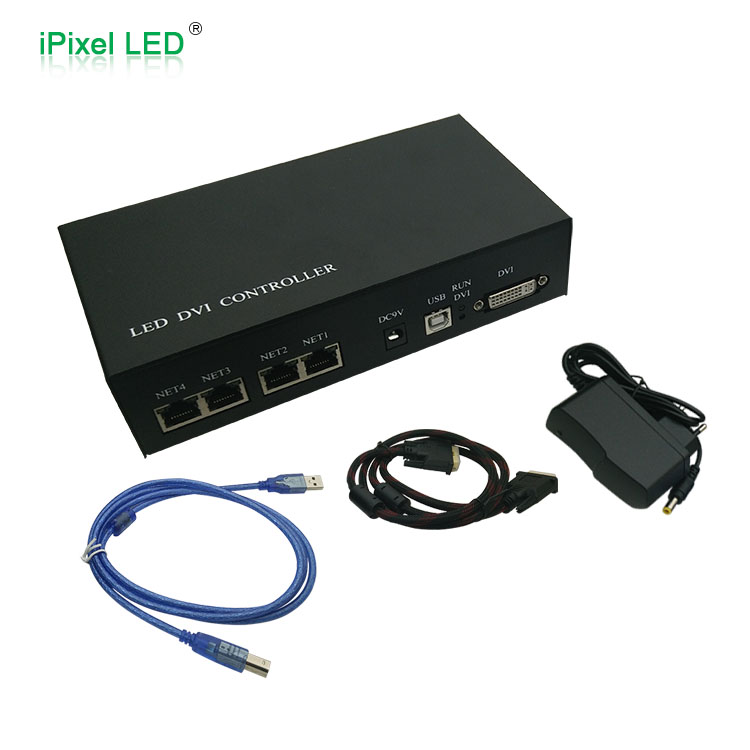

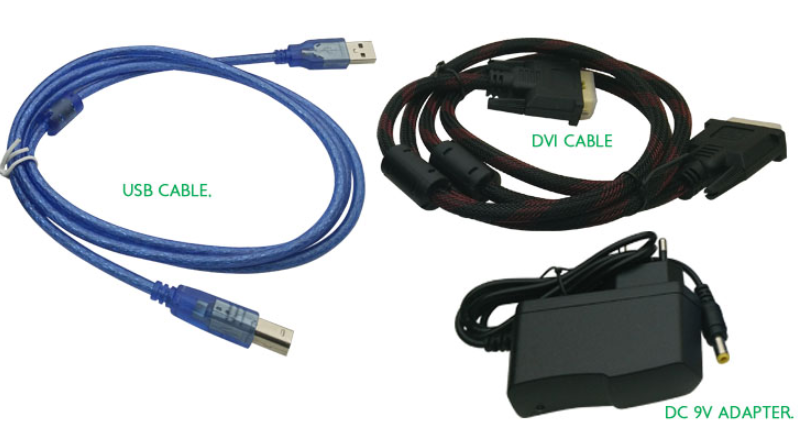

Accessories:

DVI cable, USB cable, DC 9V adapter.
