SMD 4040 RGB LED Strip 96LEDs/M DC12V/24V
Description
Description
This is a PWM control RGB color LED strip without Pixel
96pcs SMD 4040 RGB LED per meter
5meters/reel, 8mm PCB width
DC12/24V constant voltage operation
Both ends have 4pin bare wires for powering
3M tape attached on backside of FPC
Share to
Specification
Product Parameter
| PN | S008096TB3PZ | S008096TC3PZ |
| Voltage | DC12V | DC24V |
| LED Type | SMD 4040 | SMD 4040 |
| LED Quantity | 96LEDs/m | 96LEDs/m |
| Color | RGB | RGB |
| Dimension | 5000*8mm | 5000*8mm |
| Cutting unit | 31.25mm | 62.5mm |
| Lumen/m | R:159 G:440 B:96lm | R:159 G:440 B:96lm |
| Power | 14.4W/m | 14.4W/m |
| Protocol | PWM | PWM |
| O.T | -25℃ ~60℃ | -25℃ ~60℃ |

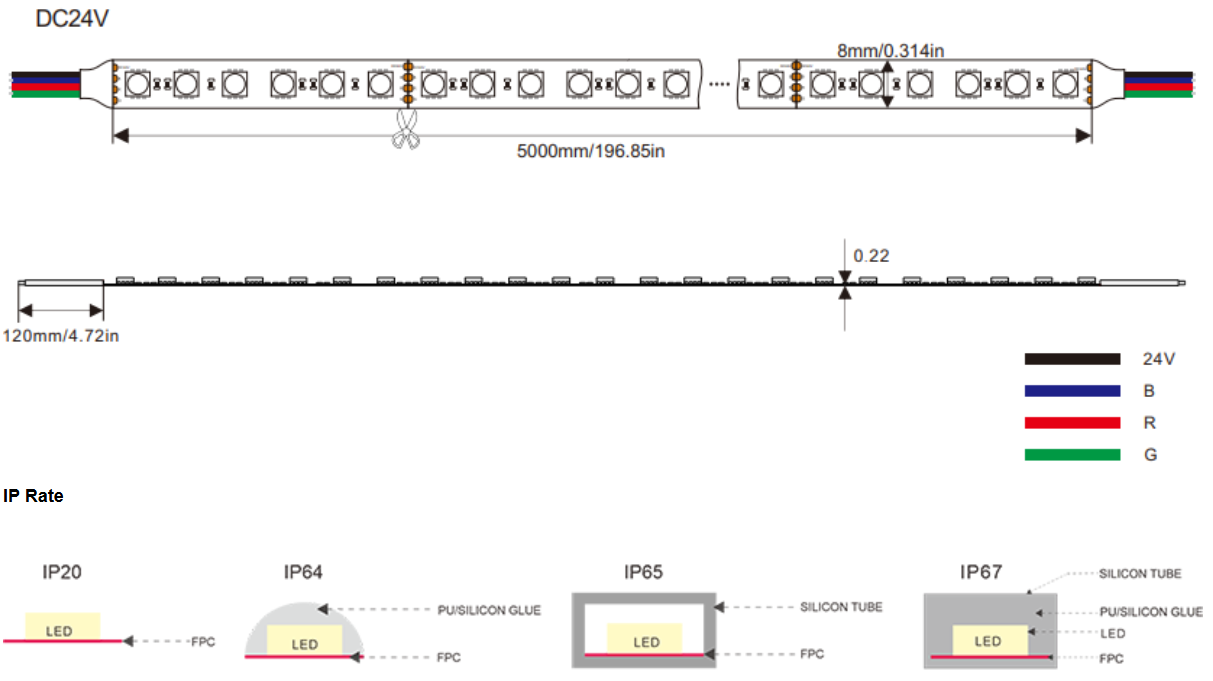

Dimension (unit:mm)
IP Rate
