Seamless Joint LED Rigid Bar
Description
It's addressable SK6812 RGBW led rigid bar,DC5V, the PCB size is 500*21.4*0.7mm, each PCB has
30pcs LED chip.
Share to
Specification
It's addressable SK6812 RGBW led rigid bar,DC5V, the PCB size is 500*21.4*0.7mm, each PCB has
30pcs LED chip.

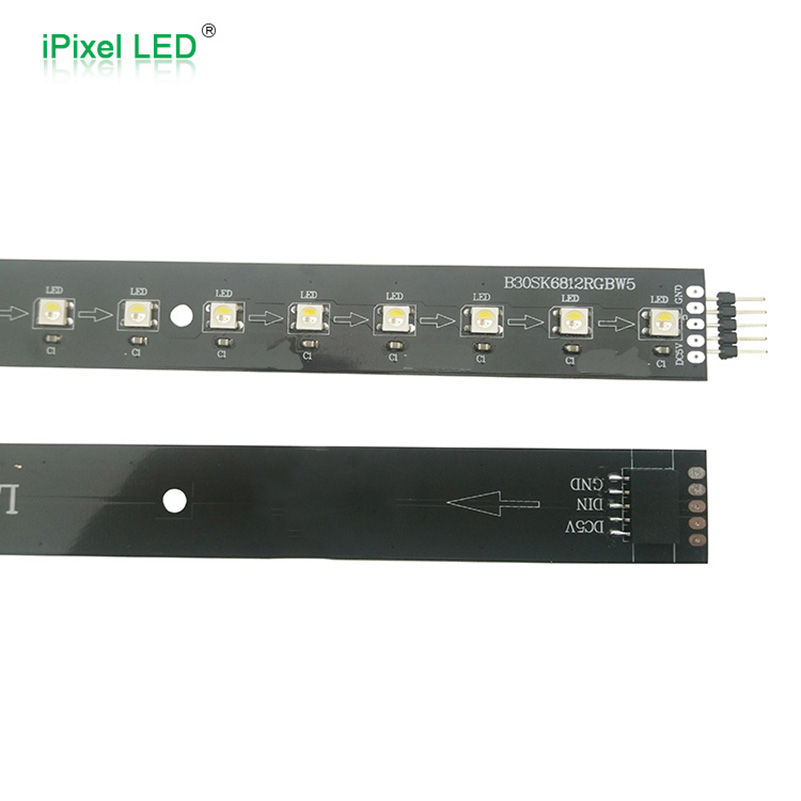

1.each PCB has 5 Bonding pad, 2 GND, 2 DC5V+, 1 DAT.
2.both end solder female connector, and connect 2pcs PCB via a male connector to achieve seamless joint.
Our customer will mounte these PCB in aluminum profile, and they don't like the connector over the end
of PCB, so we will design the bonding pad more inside, and select a longer male connecotor for fast and
easy connection.
