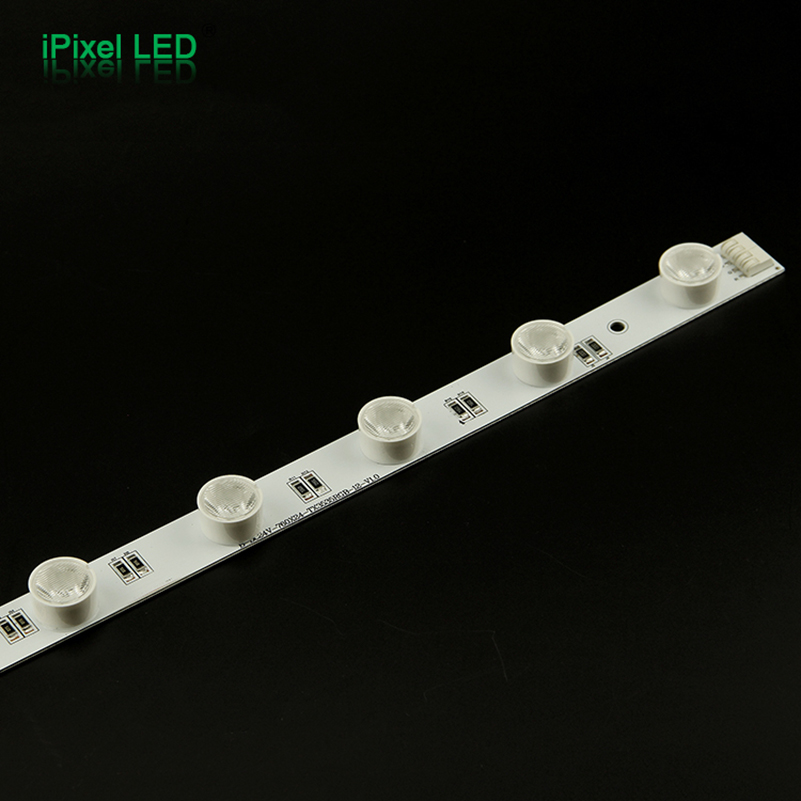

RGB high power rigid bar

Internal code: 51400049

This is a new custom product from one of our client. they did the single color Cree high power rigid

PCB before, and now they ask to do RGB one.
We used 3535 high power LED chip, each PCB has 12LEDs/pcs, 28W, DC24V.
Each LED chip with a lens,the light beam 10x45 degree,PCB width is 760*24*14mm,
there has 4pcs*5mm diameter holes for you to installation, both end with 2pcs*2 hole wago connector.
Just in case your have any new ideas, feel free to contact us.
