Description
Description
This is a PWM control RGB color LED strip without Pixel
60pcs SMD RGB 5050 LEDs per meter, 5meters/reel, 10mm PCB width
The cutting unit length is 50mm(12V), or 100mm(24V) per section
The PCB is made by 2 Ounce thick copper
All soldering Pads are very large, allowing you to easily cut and reconnect
DC12/24V constant voltage operation
Both ends have 4pin bare wires for powering
3M tape attached on backside of FPC
3 different waterproof types IP64, IP65, IP68
![]()
| PN | S010060CB3PZ | S010060CC3PZ |
| Voltage | DC12V | DC24V |
| LED Type | SMD 5050 | SMD 5050 |
| LED Quantity | 60LEDs/m | 60LEDs/m |
| Color | RGB | RGB |
| Dimension | 5000*10mm | 5000*10mm |
| Cutting unit | 50mm | 100mm |
| PCB Color | White | White |
| Power | 14.4W/m | 14.4W/m |
| Protocol | PWM | PWM |
| O.T | -25 - 60℃ | -25 - 60℃ |

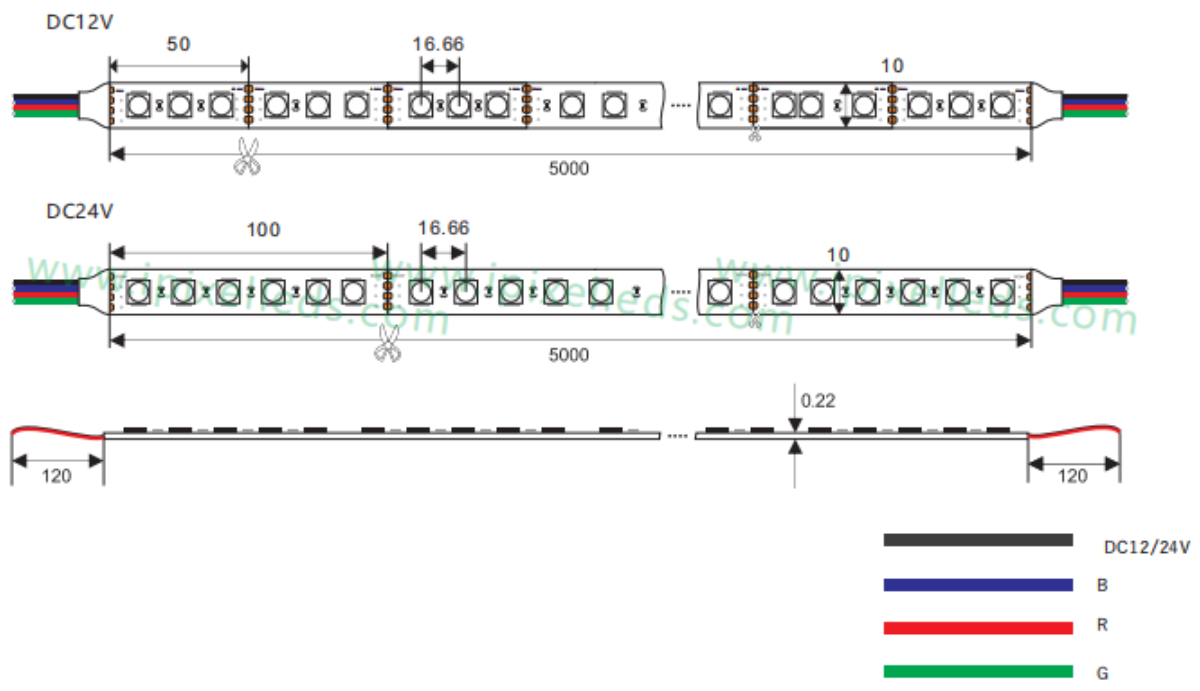

Dimension (unit:mm)
IP Rate
![]()
