APA2020 RGB LED Strip
Description

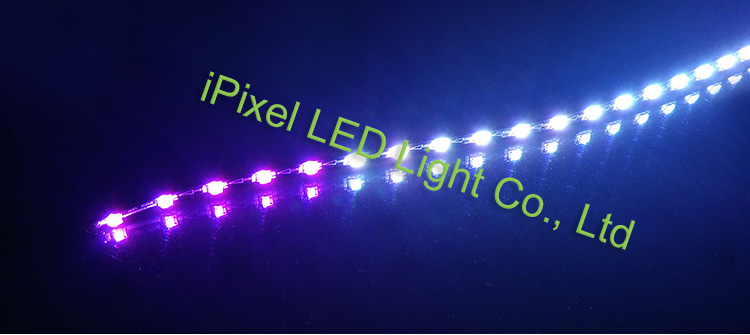

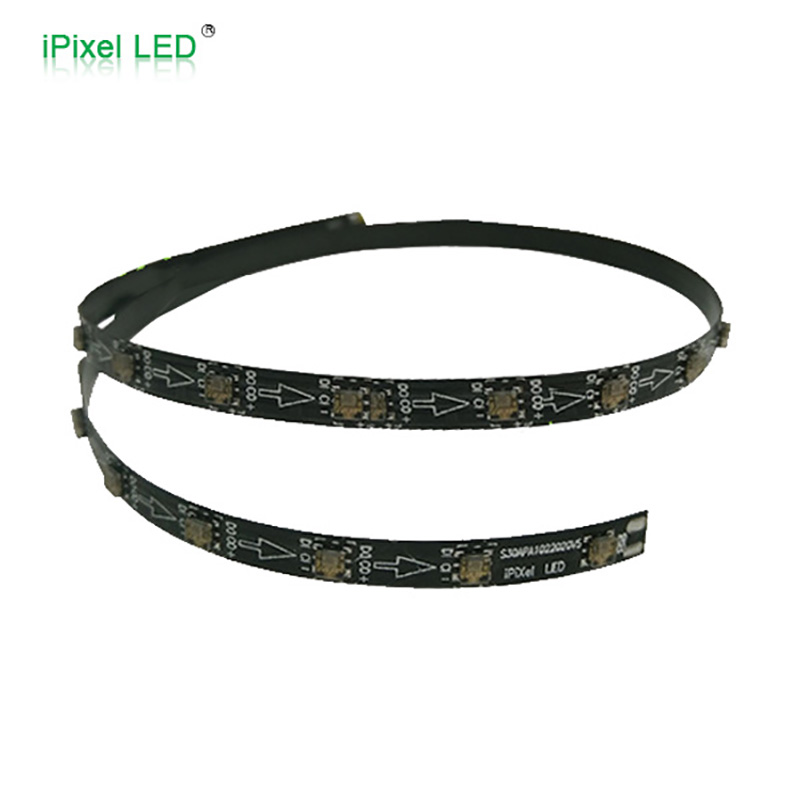

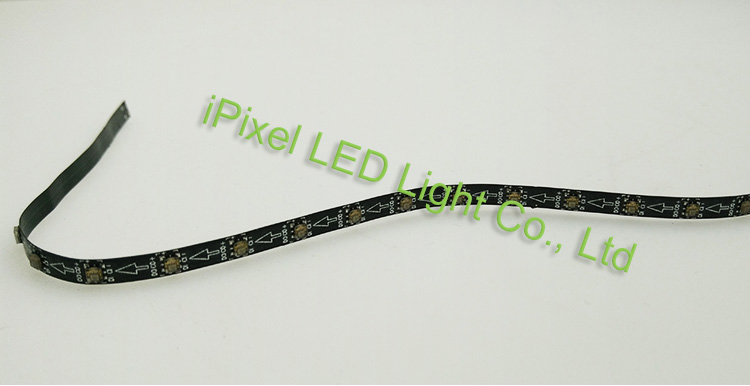

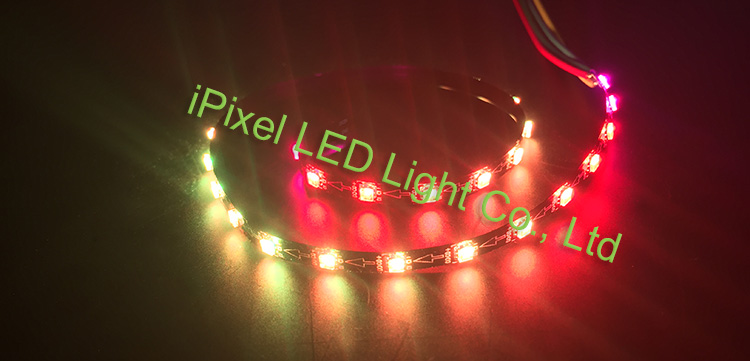

We developed this slim led strip,4mm width 30pcs APA2020,totally flexible but IP20 as the brightness
quite high based on very thin PCB,it getting a little bit hot,make sure you will hold the strip on somewhere
which could lose the heat,never use static white color each LED addressable but not cut-able the soldering

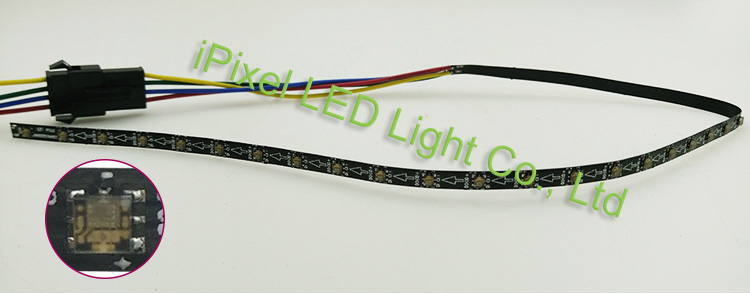

pad on front side is Data and clock, back side of PCB DC5V &GND Each pcs stripe we soldering a JST SM
4 Pin male connector as input ,cable size 26AWG.
Share to
Specification
What is awesome meaning !!! APA2020 LED chip , Top mounted IC+RGB Chip LED RGB
single point of control, 8 bit color set, you wouldn't believe the package size is 2*2mm regarding
to the special thin application.Here are APA2020 LED chip's Specifications:
• RGB Single point of control
• 8Bit(256 level)color set
• 5Bit(32level)brightnessadjustment
• ICinput voltage 4.5v--7.5v
• 20mA,Contant current output
• Anti-Reflectionresin
• View angle : >=120 (min 50% brightness)
• High contrast
| APA2020 | Specifications |
| Luminous Intensity(lv) | Red: 300--500mcd Green: 500--850mcd Blue: 120--220 mcd |
| R/G/B@20mA,Ts=25℃;Tolerance ±10% | |
Wavelength | Red: 619--626nm Green: 520--535nm Blue: 465--475nm |
| R/G/B@20mA, Ts= 25℃; Tolerance ±10% | |
Applied voltage | DC5V |
| Power consumption | 0.2W |
View angle | 140° |
Refresh rate | 400 cycle |
