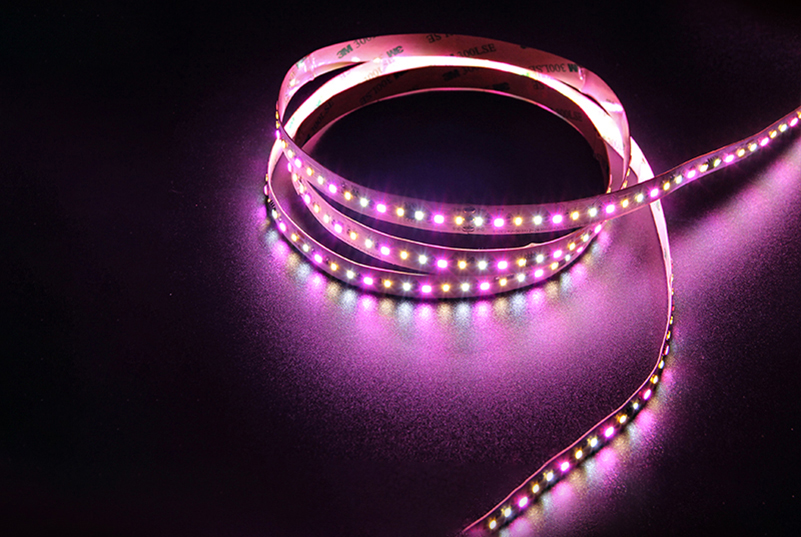

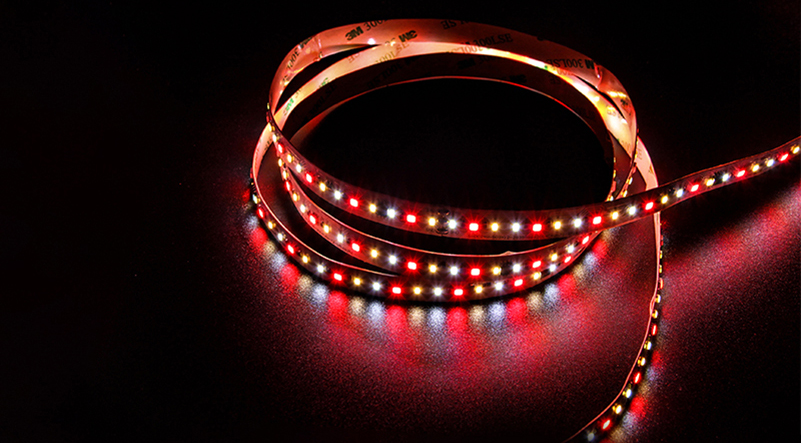

DC24V RGB+WW flex led strip 144LEDs/m
Description
This product is customized by our Germany customer.
before we have DC48V RGB+WW flex led strip,
now we develop DC24V digital RGB+WW led strip,
Part Number: S012144BC5SD8/10105-0135

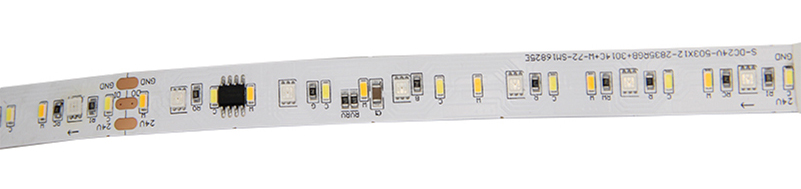

1. This led strip with 48pcs 2835 RGB + 48pcs 3014 warm white+48led 3014 white
LED chips, 144LEDs/m.
2. This is a SPI , IC chip is SM16825
3. The input voltage is DC24V, and 18LEDs/group.
4. Flexible PCB, the FPCB color is white.
Share to
Specification
This product is customized by our Germany customer.
before we have DC48V RGB+WW flex led strip,
now we develop DC24V digital RGB+WW led strip,
Part Number: S012144BC5SD8/10105-0135
1. This led strip with 48pcs 2835 RGB + 48pcs 3014 warm white+48led 3014 white
LED chips, 144LEDs/m.
2. This is a SPI , IC chip is SM16825
3. The input voltage is DC24V, and 18LEDs/group.
4. Flexible PCB, the FPCB color is white.
5. The PCB width is 12mm
6. The length is standard 5M/roll, length can be customized.
before we have DC48V RGB+WW flex led strip,
now we develop DC24V digital RGB+WW led strip,
Part Number: S012144BC5SD8/10105-0135
1. This led strip with 48pcs 2835 RGB + 48pcs 3014 warm white+48led 3014 white
LED chips, 144LEDs/m.
2. This is a SPI , IC chip is SM16825
3. The input voltage is DC24V, and 18LEDs/group.
4. Flexible PCB, the FPCB color is white.
5. The PCB width is 12mm
6. The length is standard 5M/roll, length can be customized.
7. non-waterproof IP20
