RGBW SK6812 Side Emitting Addressable LED Strip
Description
Internal Code: 10104-0570-00/10104-0571-0/10104-0572-00
We already have RGB version Side Emitting Addressable led strip, but there are more that require RGBW versions,
so now we have developed an RGBW side pixel strip.

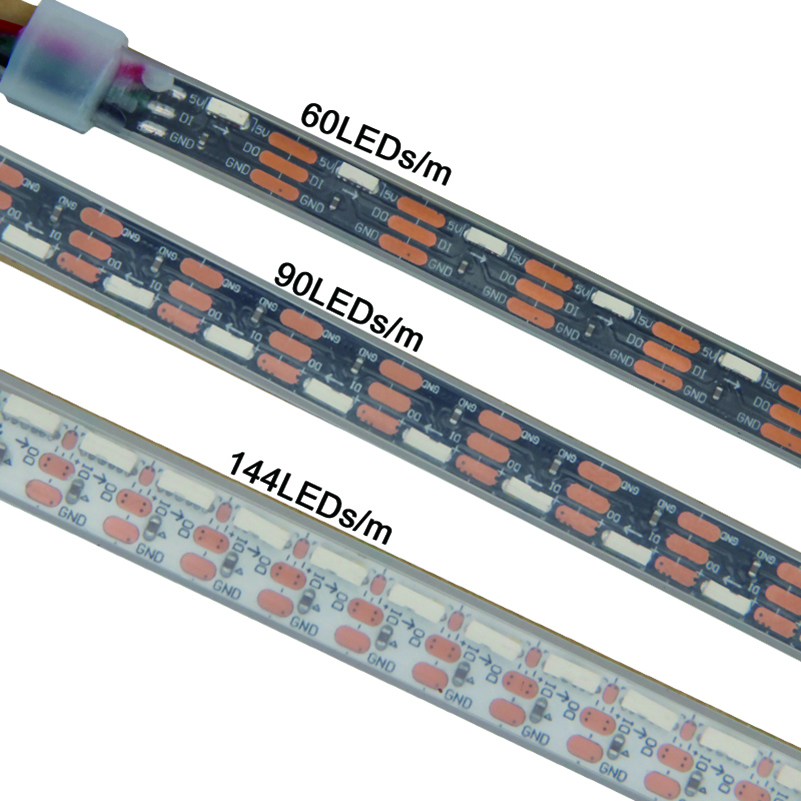

60/90/144 LEDs/m.
Share to
Specification
Internal Code: 10104-0570-00/10104-0571-0/10104-0572-00
We already have RGB version Side Emitting Addressable led strip, but there are more that require RGBW versions,
so now we have developed an RGBW side pixel strip.
60/90/144 LEDs/m.
8mm PCB wide.
Silicon tube waterproof.We aslo provide IP20.
PN | S008060IA4SA1 | S008090IA4SA1 | S008144IA4SA1 |
Voltage | DC5V | DC5V | DC5V |
LED Type | 4020 RGBW | 4020 RGBW | 4020 RGBW |
CCT | 2800-3200K / 4000-4500K / 6000-6500K | ||
LED Quantity | 60leds/m | 90leds/m | 144leds/m |
Protocol | SPI - SK6812 | SPI - SK6812 | SPI - SK6812 |
Dimension | 5000*8MM | 5000*8MM | 1000*8MM |
Pixel/m | 60PCS | 90PCS | 144PCS |
PCB Color | Black | Black | White |
Power | 12W/M | 18W/M | 28.8W/M |
IP | IP65/20 | IP65/20 | IP65/20 |
O.T | -30℃ ~ 45℃ | -30℃ ~ 45℃ | -30℃ ~ 45℃ |
