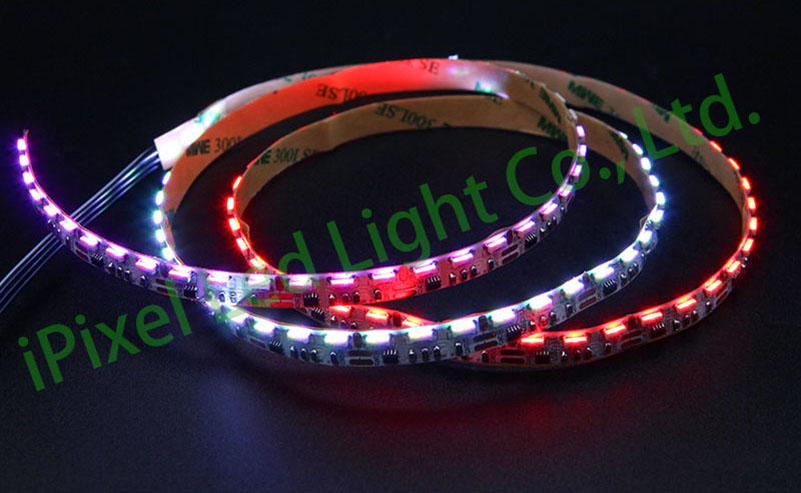

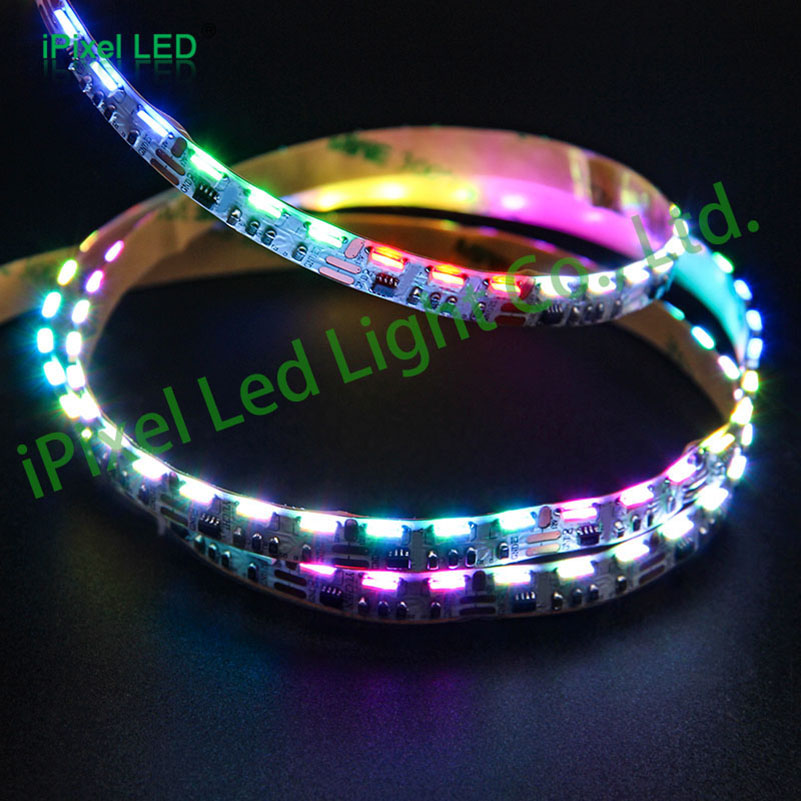

DC12V digital side-emitting 4713 RGB led strip
Description
Internal Code：10105-0200-00
Part Number ：S008120IB3SC
This is a custom side-emitting RGB LED strip for one of our Chinese customers.
The width of the PCB is 8mm.
The length is 1m in a roll, but it can also be customized.
Share to
Specification
Internal Code：10105-0200-00
Part Number ：S008120IB3SC
This is a custom side-emitting RGB LED strip for one of our Chinese customers.
The width of the PCB is 8mm.
The length is 1m in a roll, but it can also be customized.

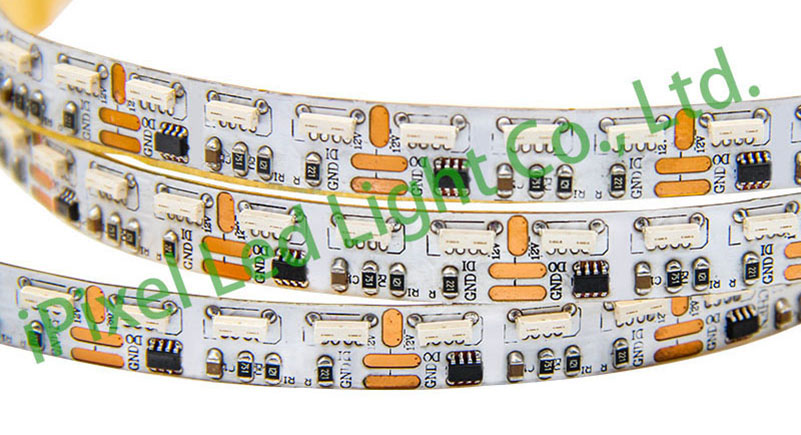

120pcs 4713 side emitting RGB LEDs, 40pcs TM1903 IC.
The voltage is DC12V, 3 LEDs/group, every 25mm can be cut.
White PCB and IP20 non-waterproof.
